2.2L Wiring Diagrams

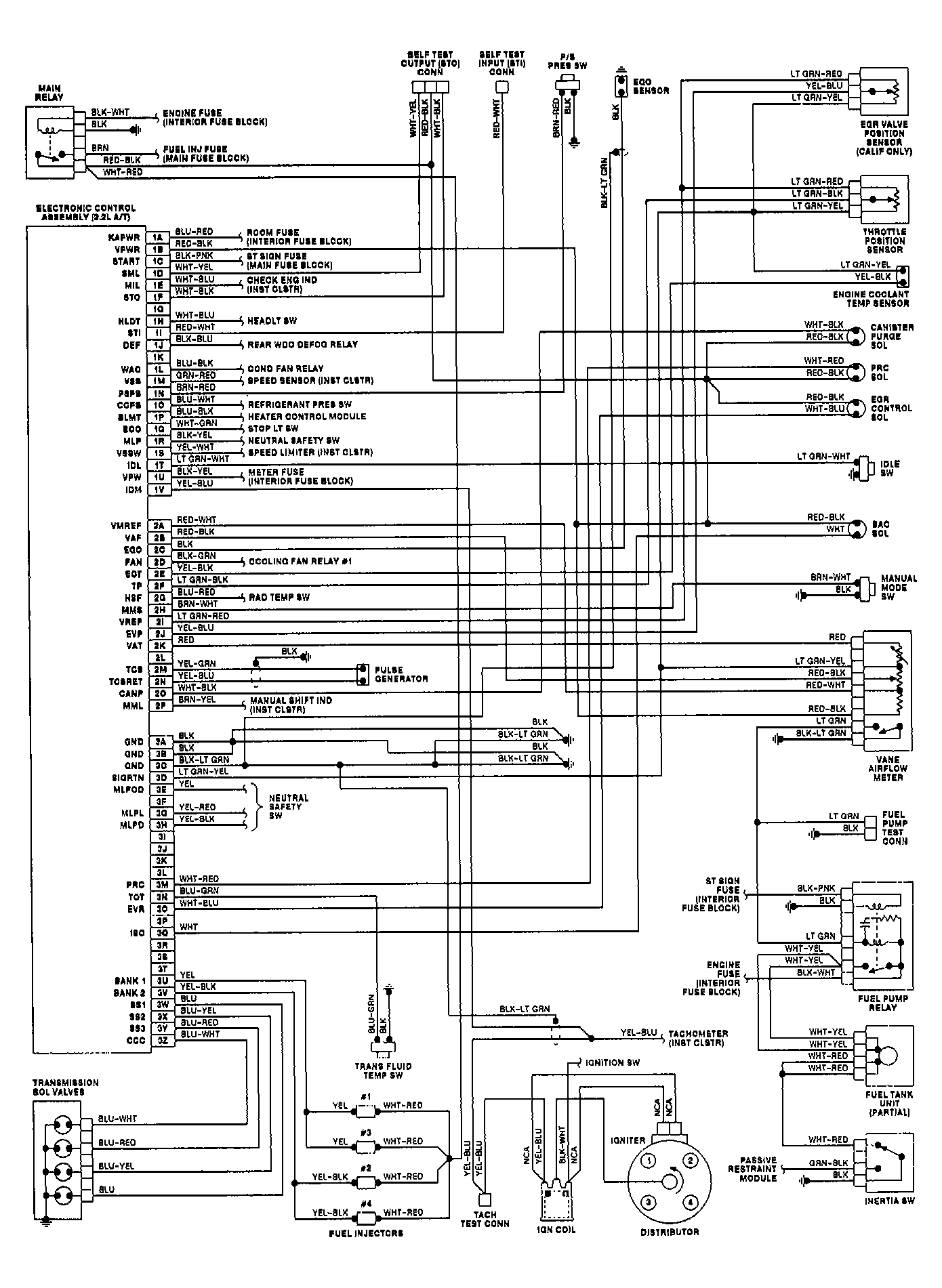

Fig 1: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Auto. Trans.)

G90C13658

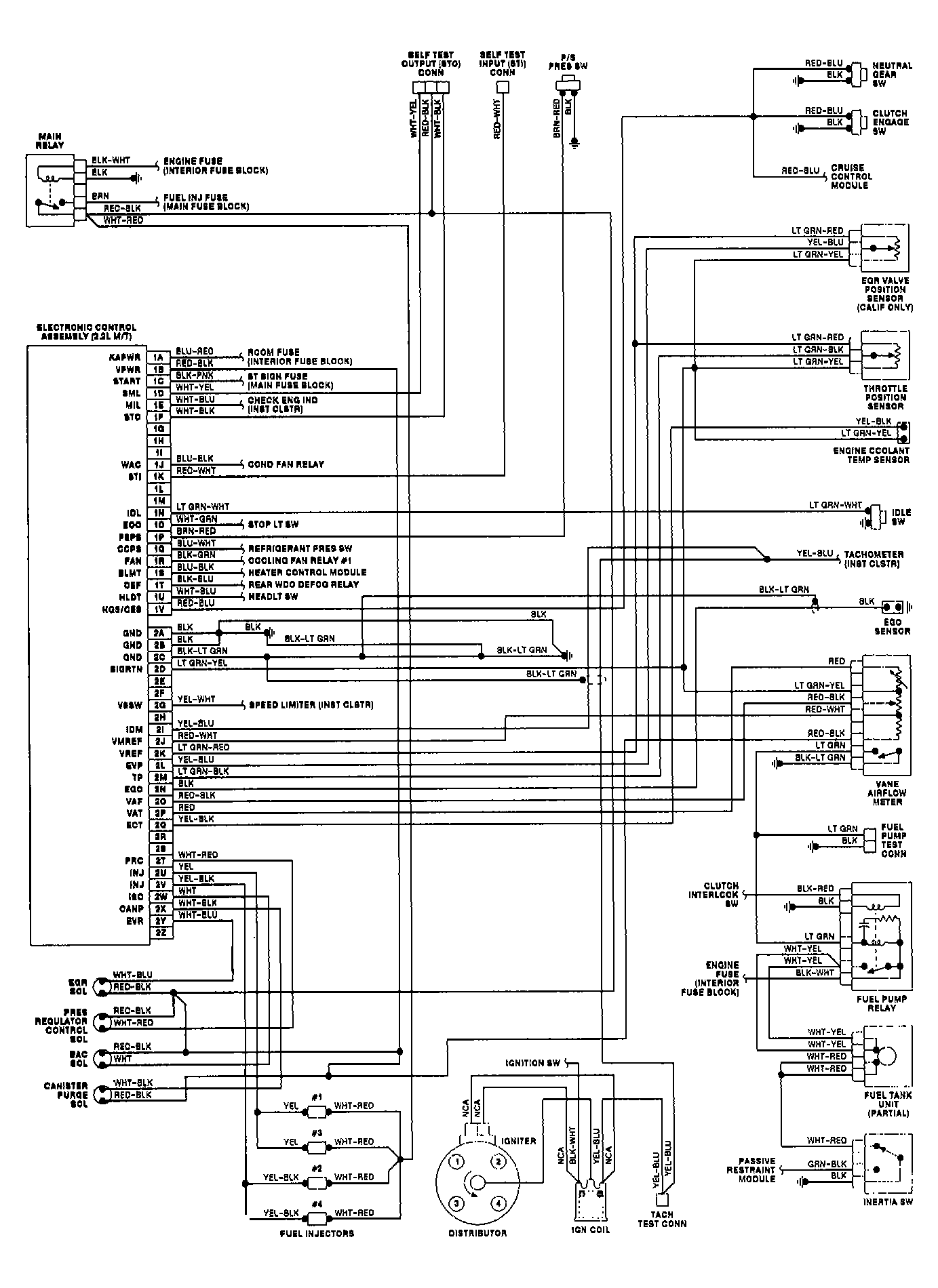

Fig 2: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Man. Trans.)

G90D13659

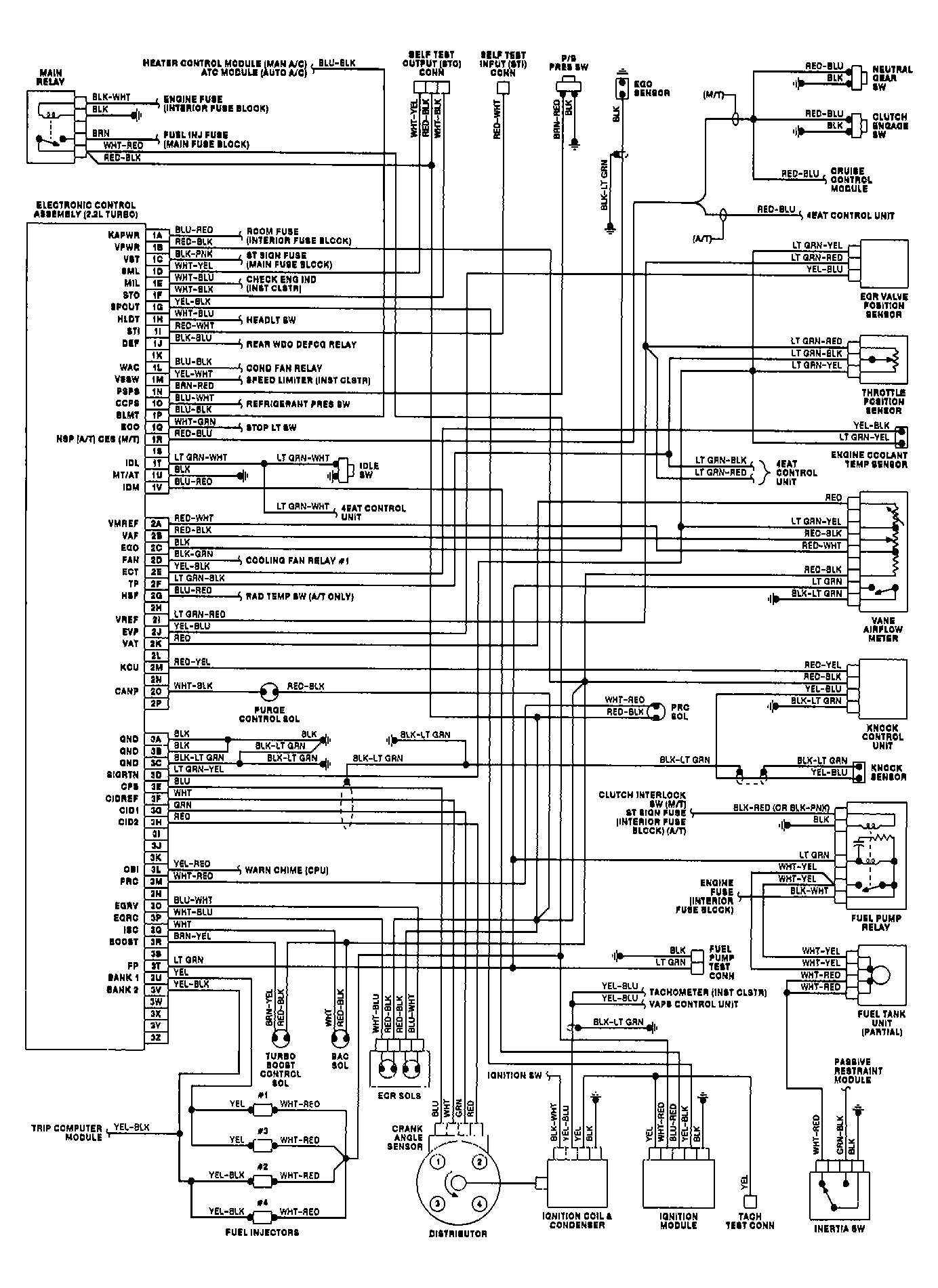

Fig 3: 2.2L Probe Turbo EEC Wiring Diagram

G90G13660
