3.0L Wiring Diagrams

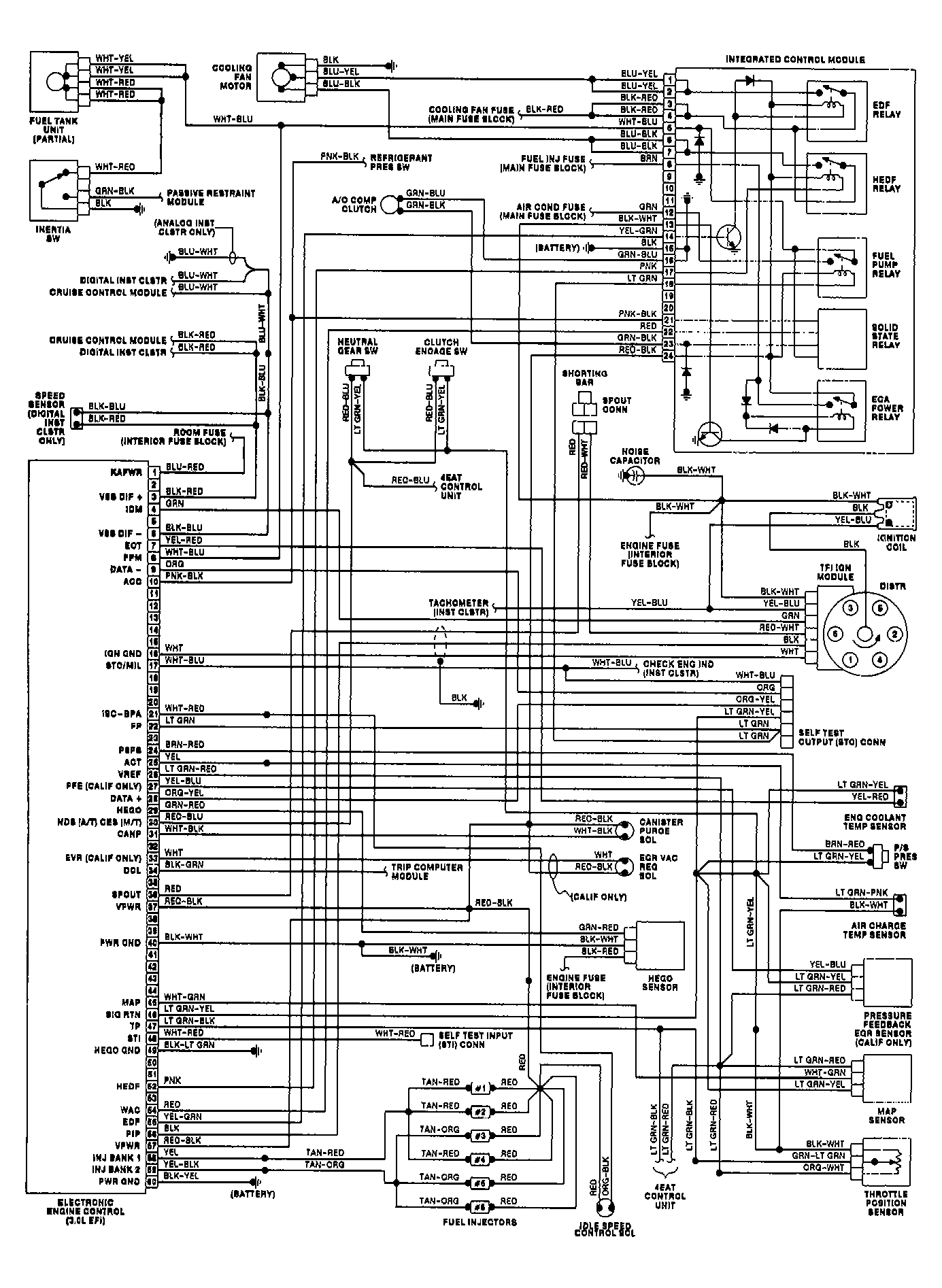

Fig 1: 3.0L Probe EEC-IV Wiring Diagram

G90H13661

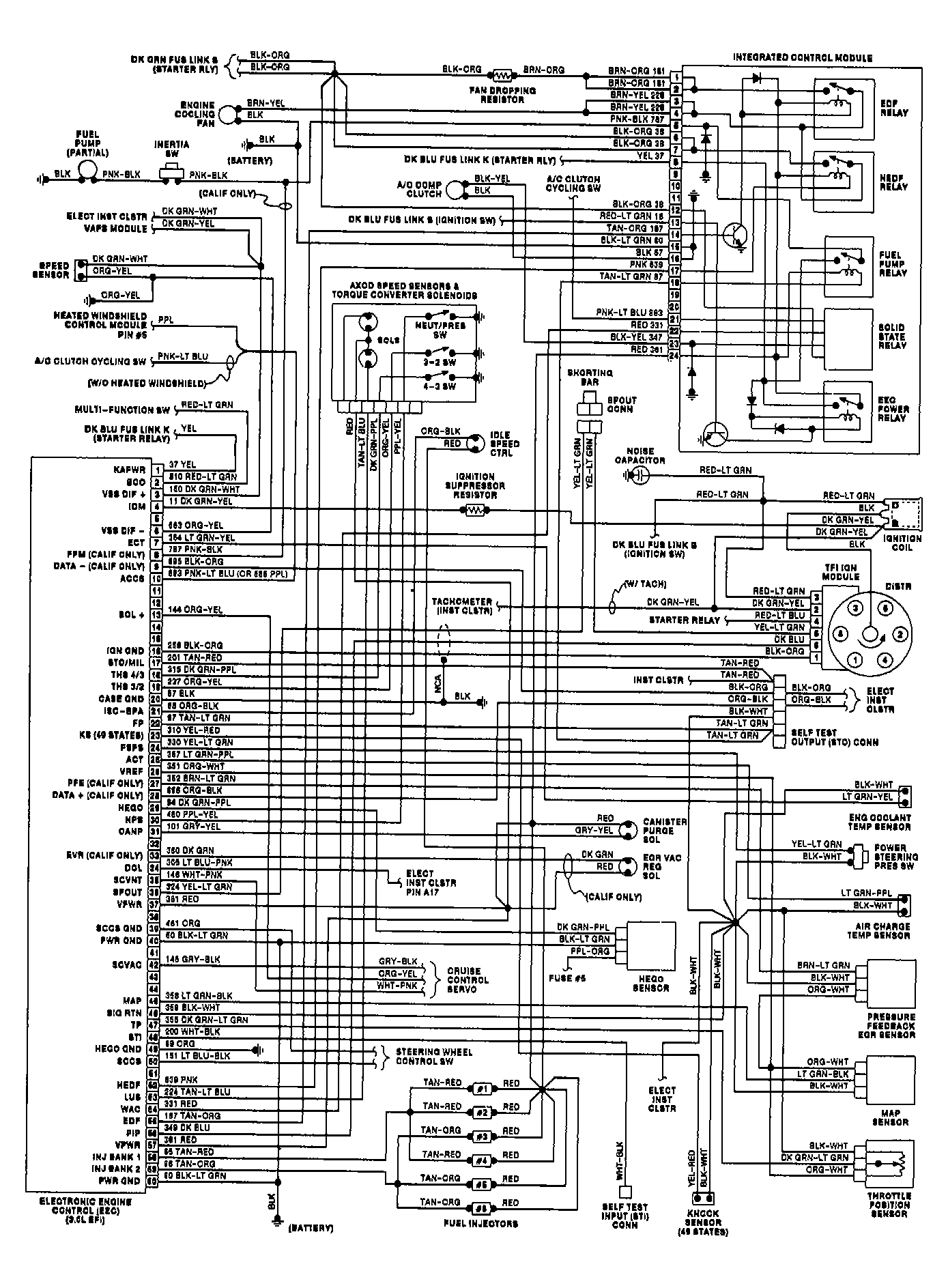

Fig 2: 3.0L Sable & Taurus EEC-IV Wiring Diagram (Except SHO)

G90J13663

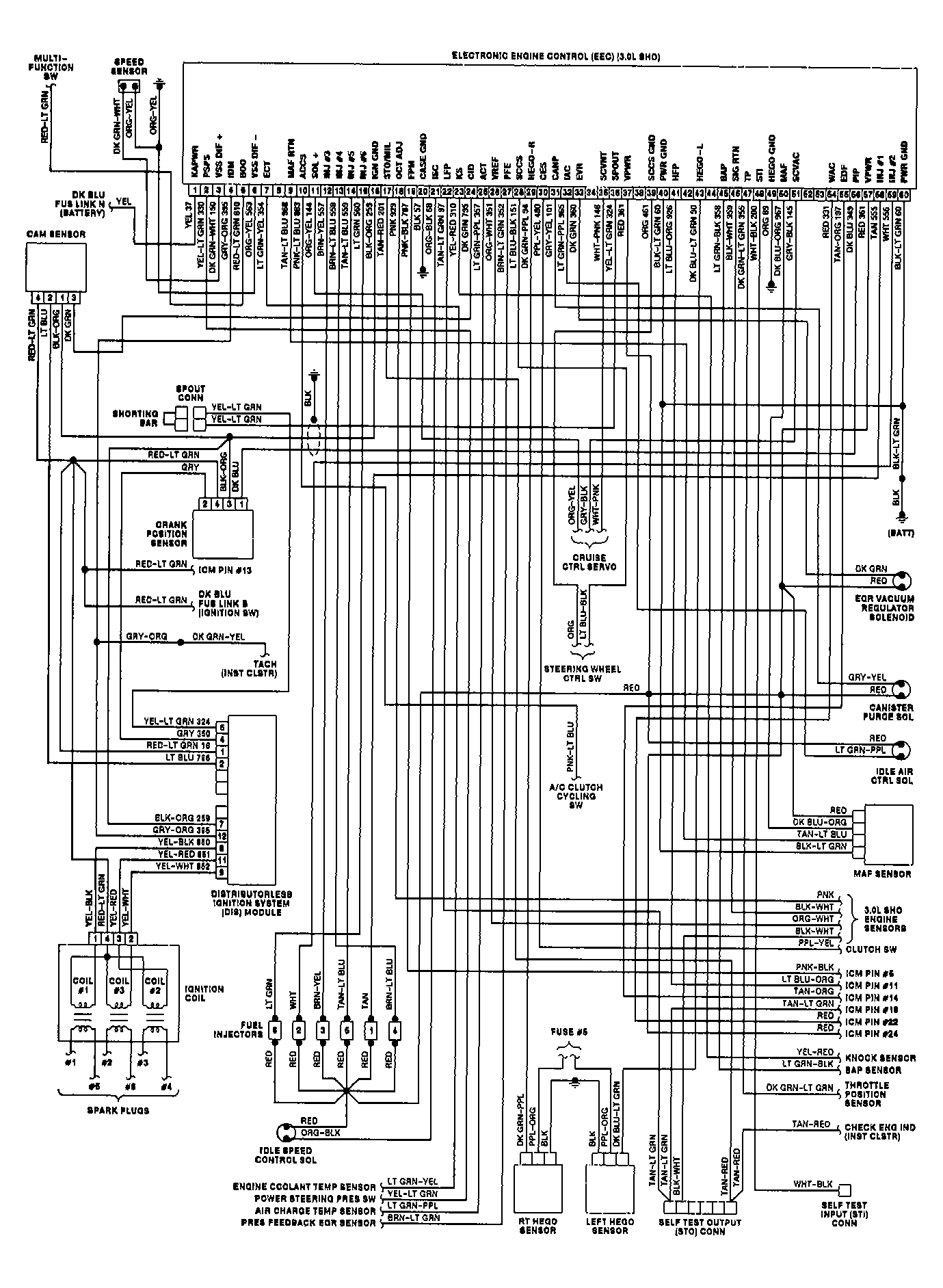

Fig 3: 3.0L SHO Taurus EEC-IV Wiring Diagram (1 of 2)

G90A13664

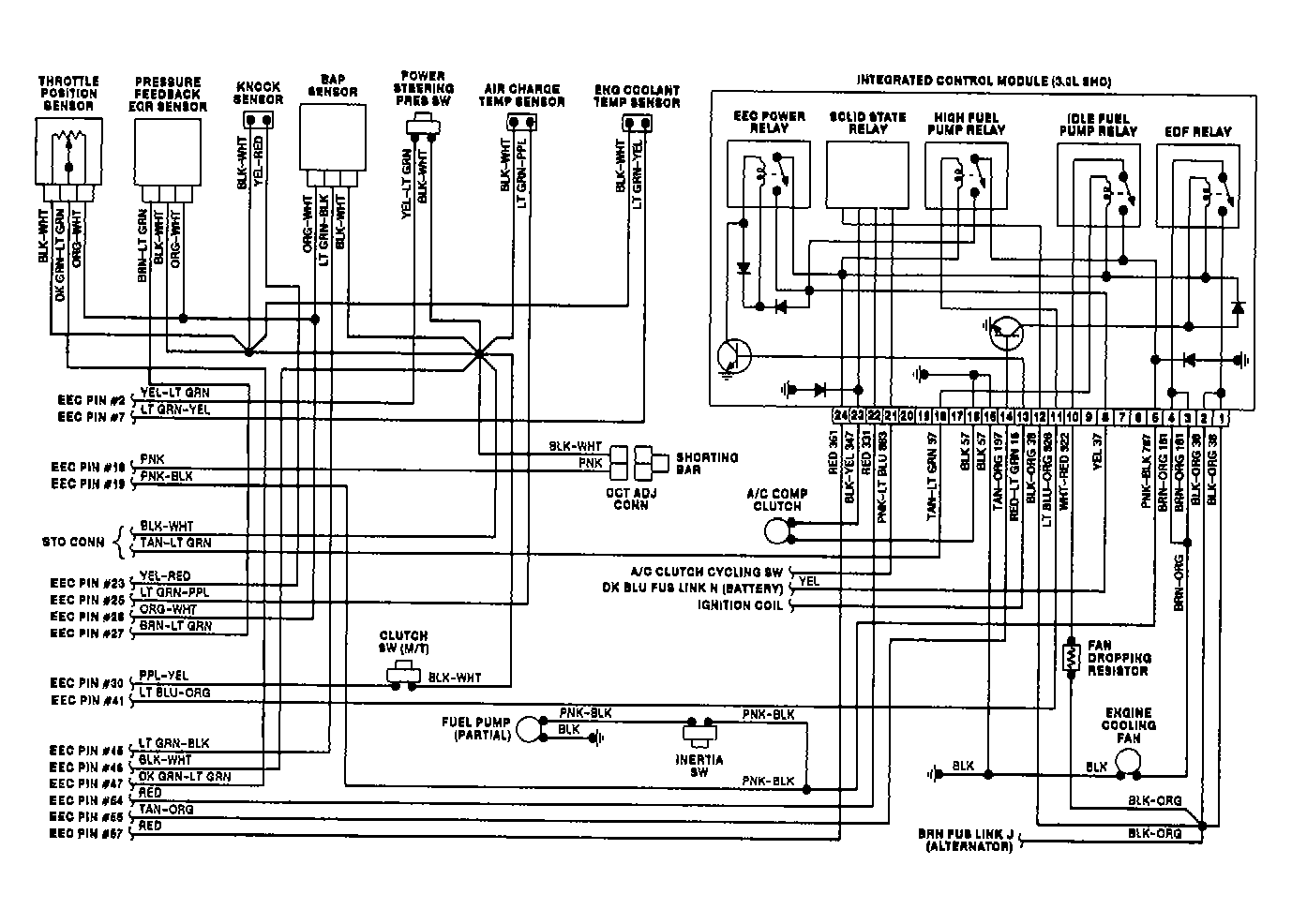

Fig 4: 3.0L SHO Taurus EEC-IV Wiring Diagram (2 of 2)

G90B13665
