"D" Range Shift Speed
- Warm engine to operating temperature. Place gear selector in "D". Turn SHIFT MODE switch to NORM position and cruise control off. Drive vehicle. Accelerate at 1/2 throttle followed by acceleration at full throttle.

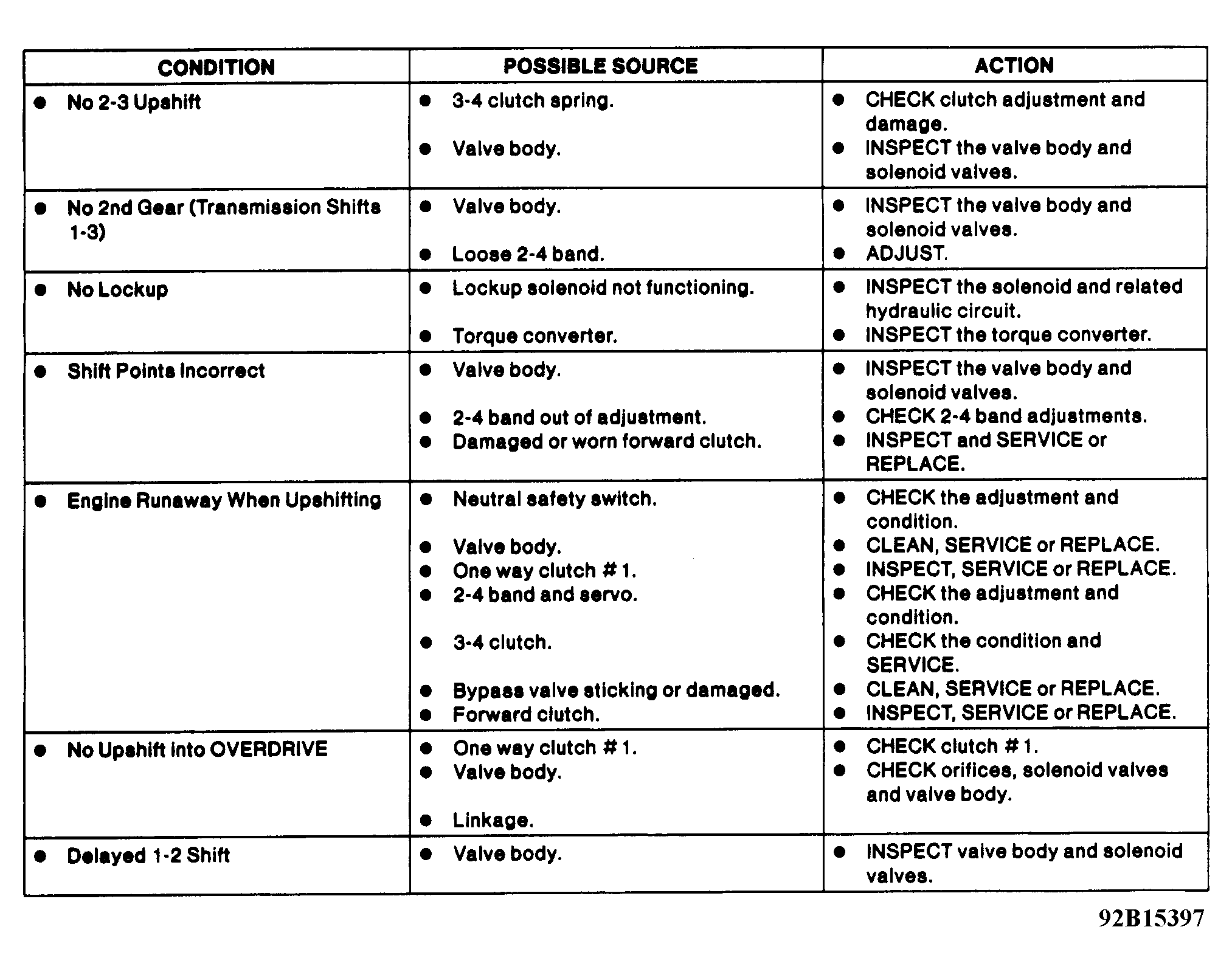

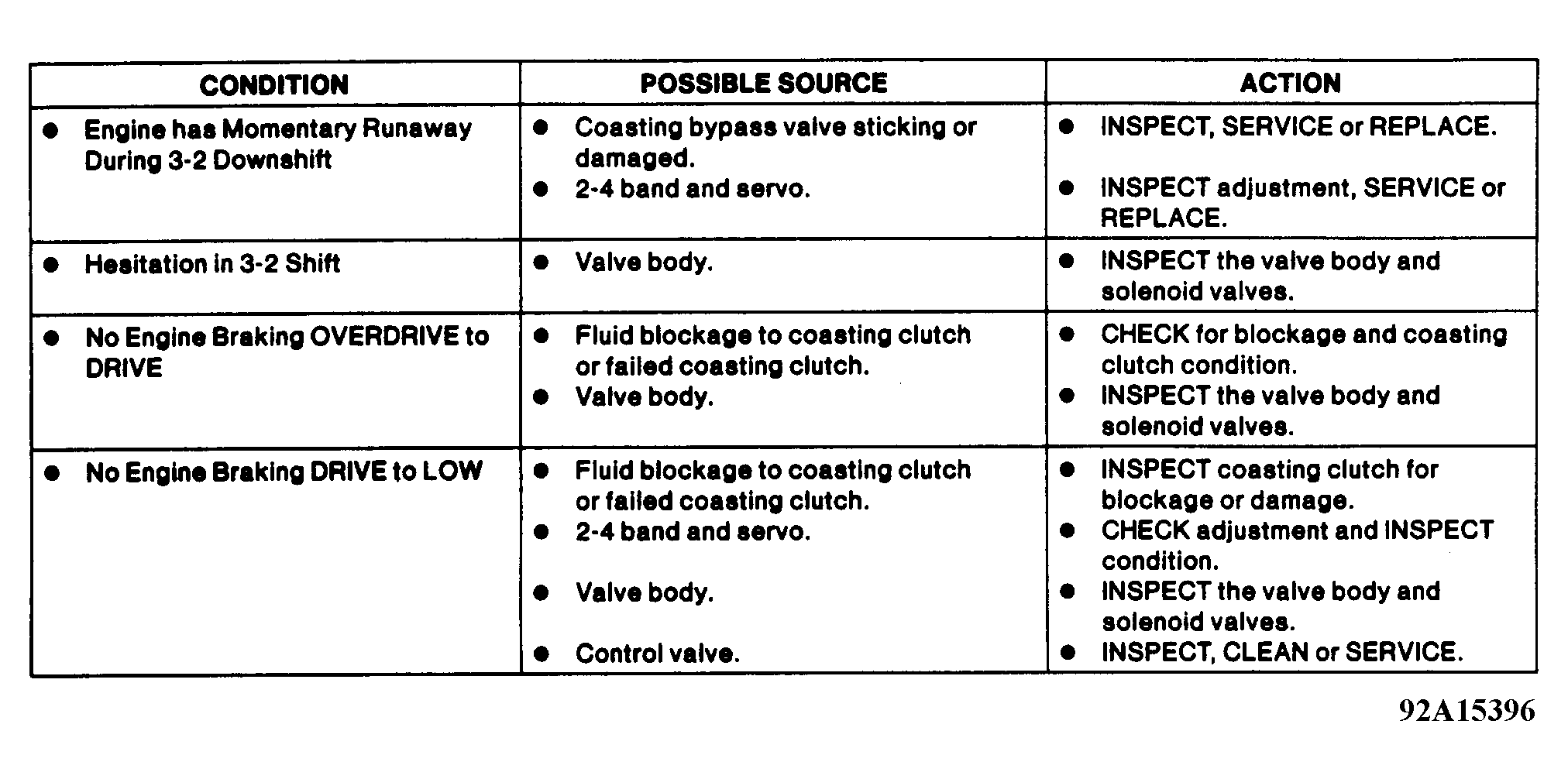

- Observe and record gear shift specifications. Refer to the "D" RANGE SHIFT SPEED SPECIFICATIONS . If transaxle gear shift is within specification, go to "L" RANGE SHIFT SPEED heading below. If transaxle gear shift is not within specification, go to appropriate shift symptom chart. See Figure -Figure .
