Trouble Shooting
NOTE:
Always check fluid levels/linkage. Ensure computer control systems are operating properly before diagnosing transaxle shifting problems. See AUTO TRANS DIAGNOSIS - FORD 4EAT

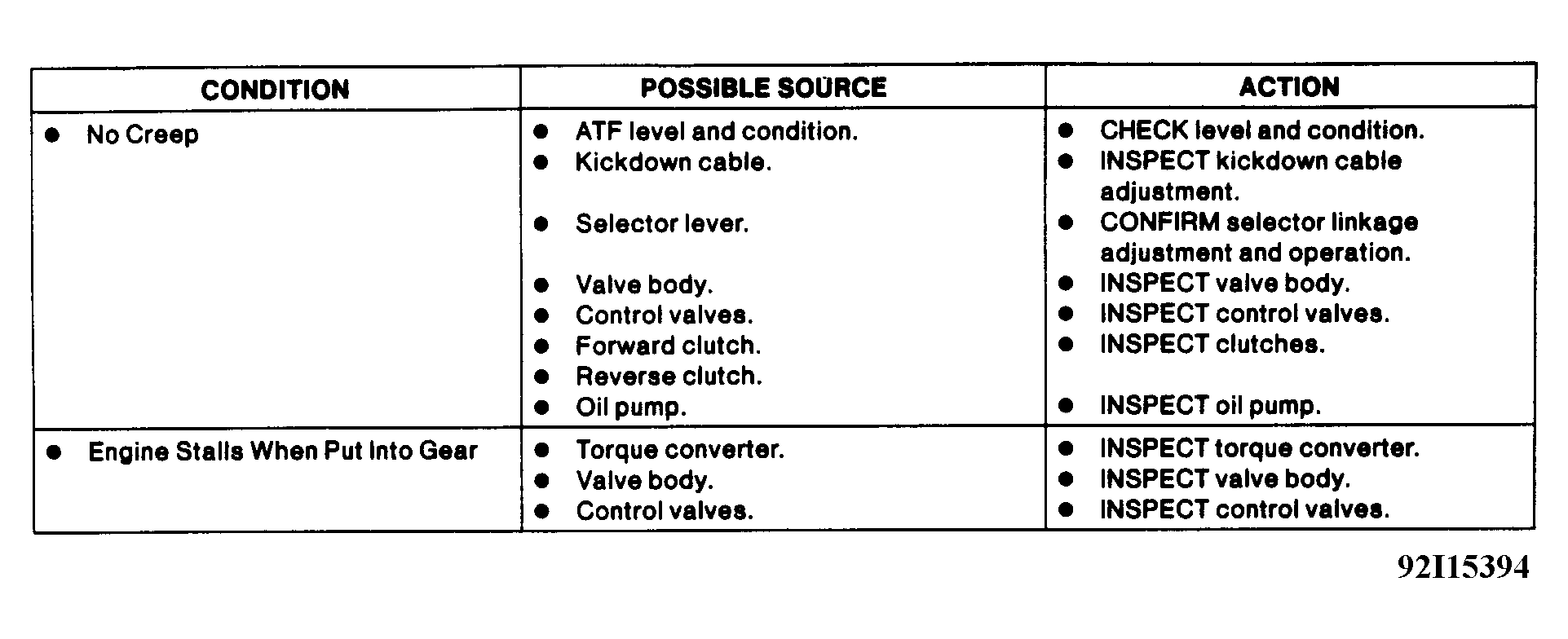

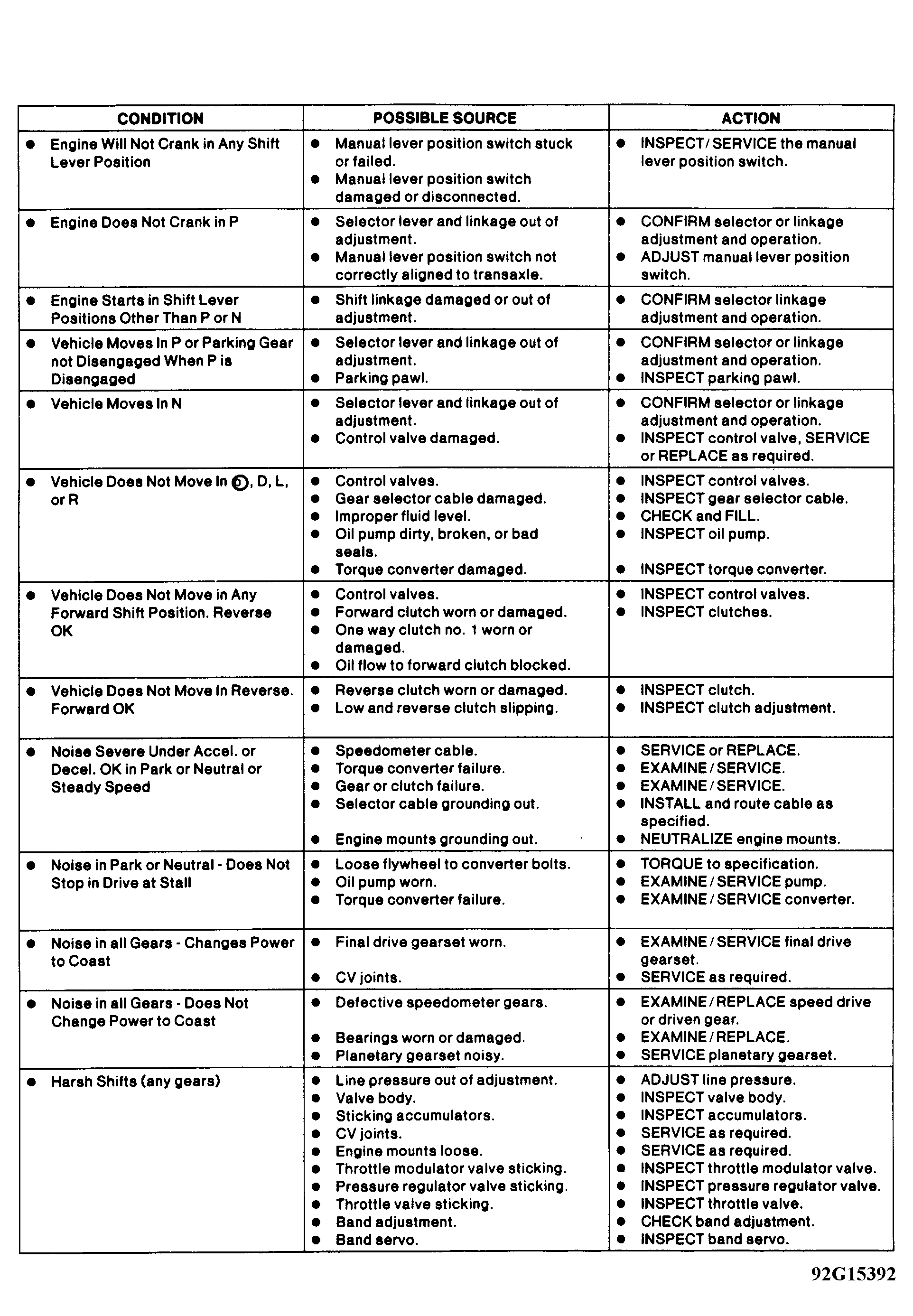

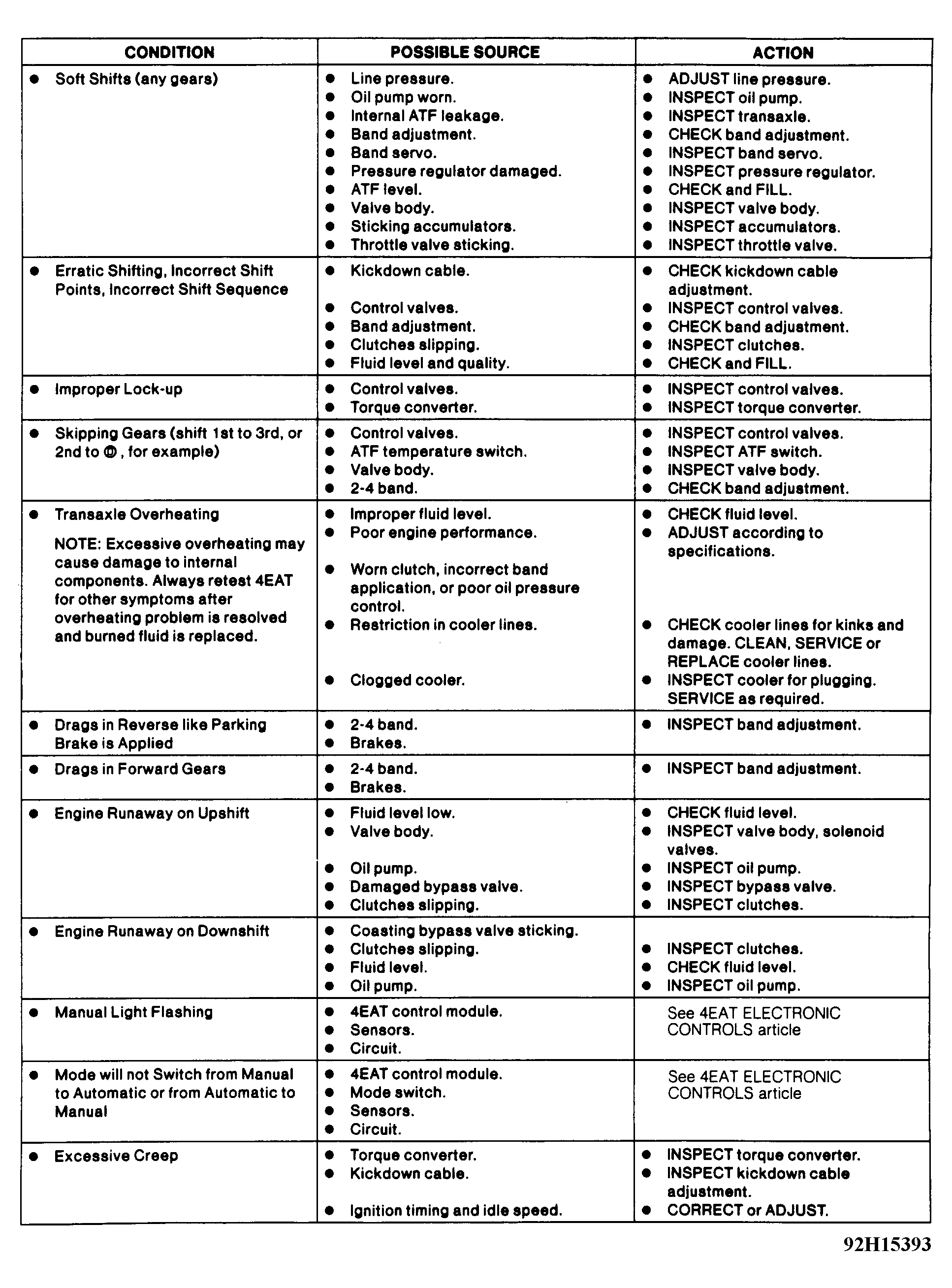

article in AUTOMATIC TRANSMISSIONS. See Fig 1
-Fig 2
for trouble shooting charts.
