Wiring Diagrams

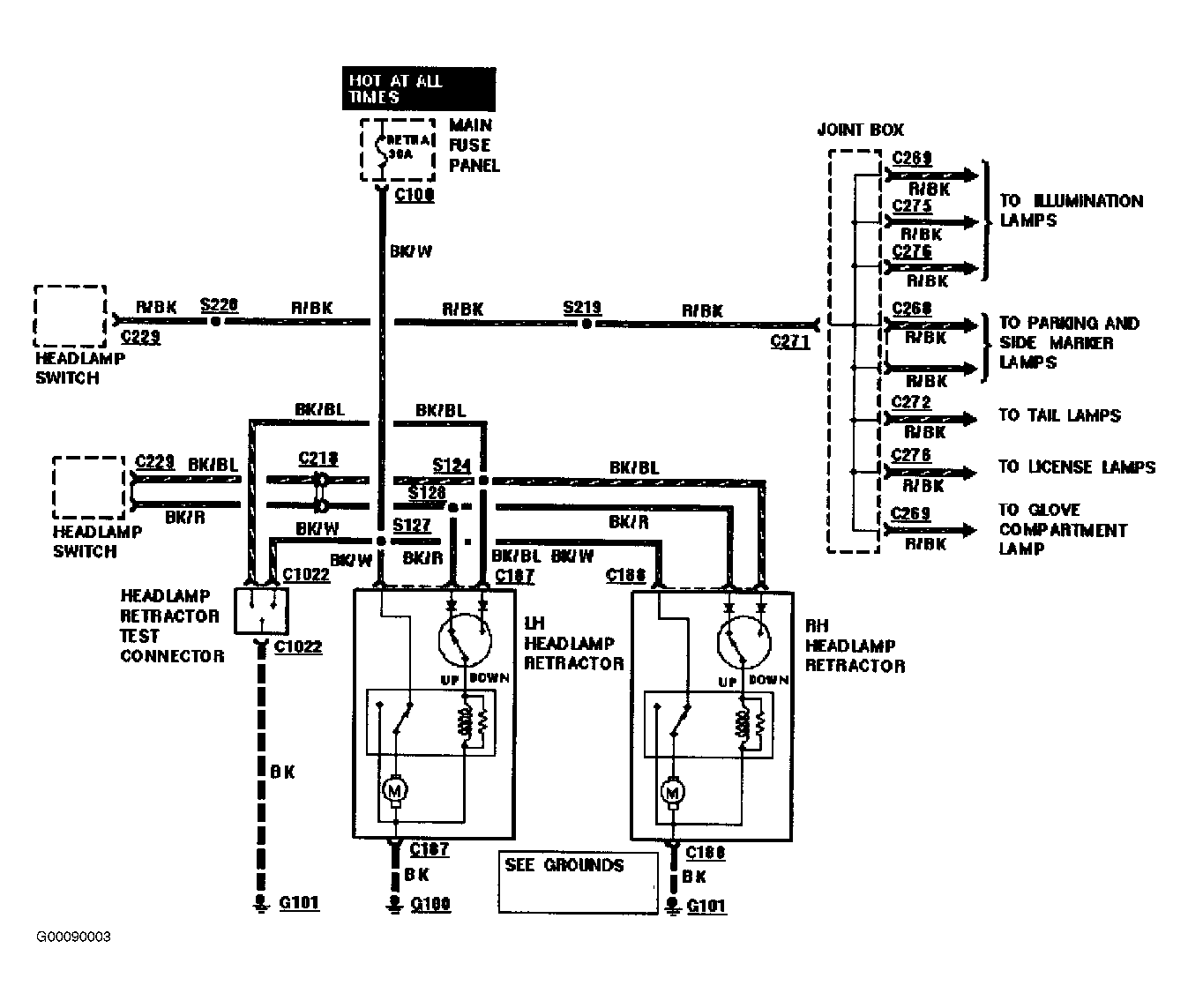

Fig 1: Headlamp Retractor Assembly Wiring Diagram
G00090003Courtesy of FORD MOTOR CO.
