Repair and Diagnosis (Single Page)
›
Electrical
›
Gauges
›
Instrument Panel - Electronic
›
Testing
›
Notes
Instrument Panel - Electronic: Testing: Notes
NOTE:
The following diagnostic charts, circuits and illustrations are supplied courtesy of Ford Motor Co.

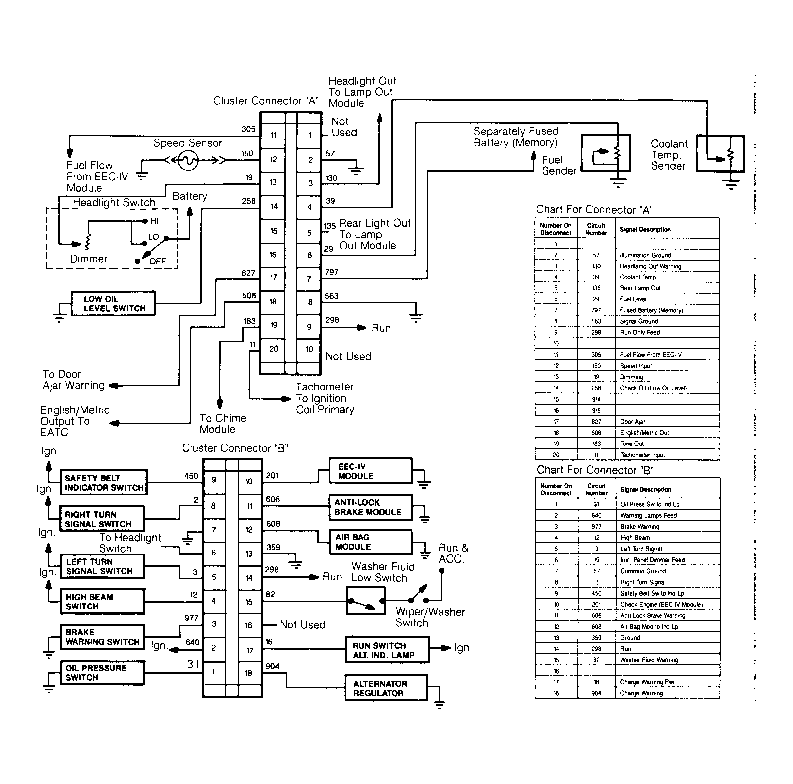

Fig 1: Instrument Cluster Connector Identification
Courtesy of FORD MOTOR CO.
