Torque Specifications

TORQUE SPECIFICATIONS

Application	Ft. Lbs. (N.m)
Pulley Nut	60-100 (81-136)
INCH Lbs. (N.m)
Bearing Retainer Screws	25-42 (3-5)
Brush Holder Screw	20-30 (2-3)
Rectifier Screws	25-35 (3-4)
Regulator Grounding Screws	15-25 (2-3)
Regulator Mount Screws	25-35 (3-4)
Through Bolt	35-60 (4-7)

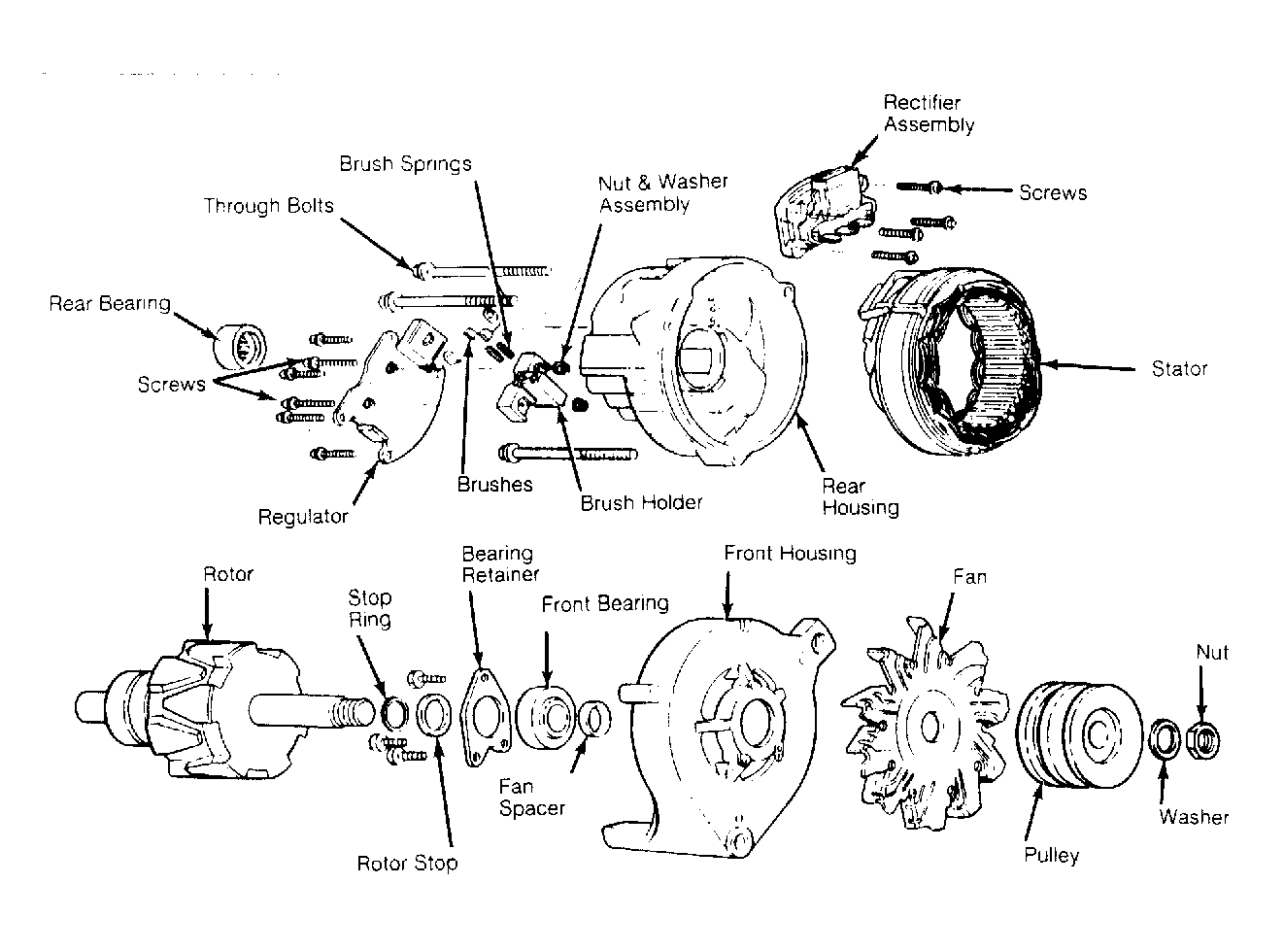

Fig 1: Exploded View of Motorcraft Alternator with Integral Regulator

G106369

Courtesy of FORD MOTOR CO.
