Service Point Locations
Service Point Locations

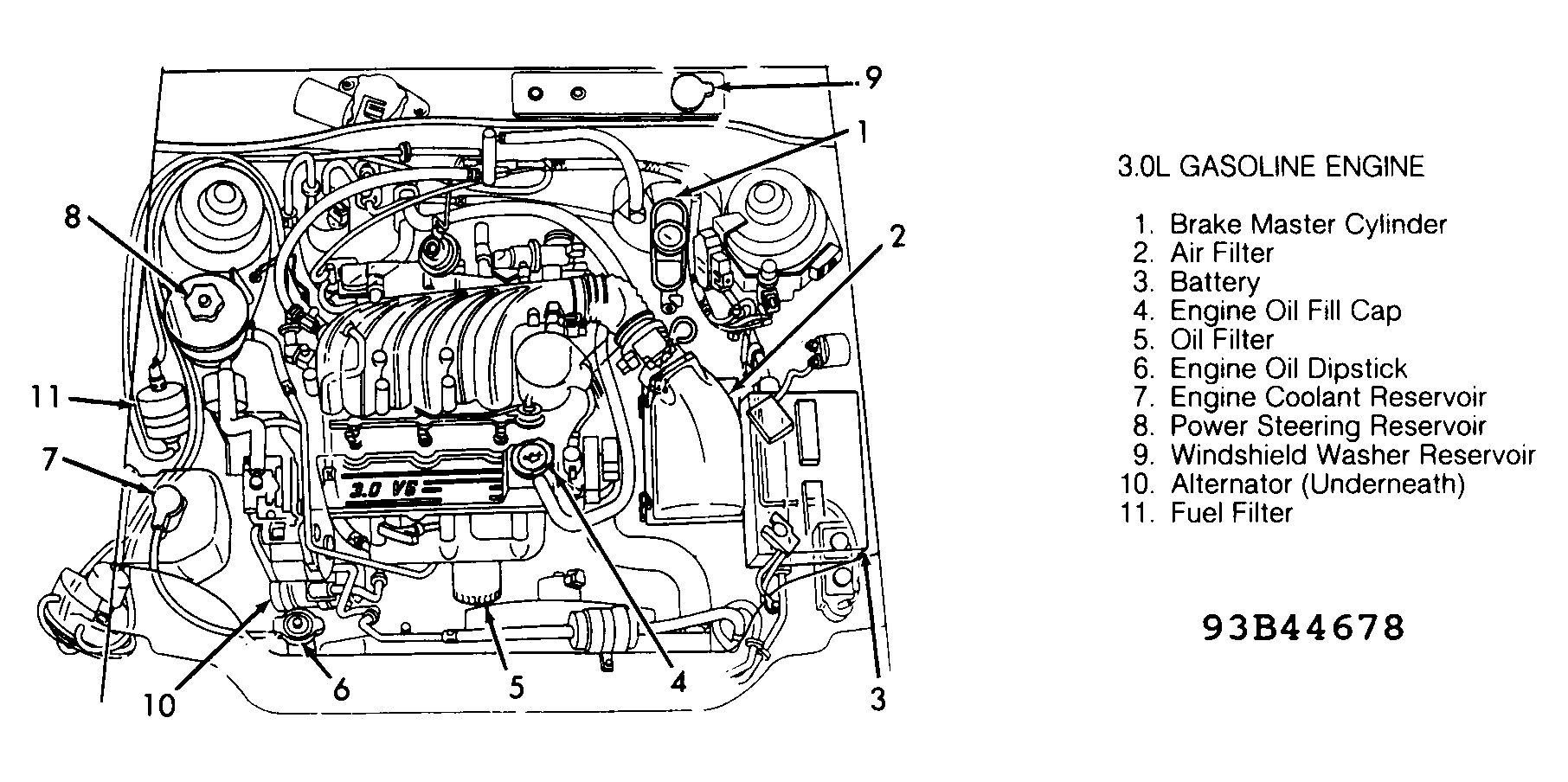

Fig 1: Service Point Locations (3.0L Gasoline Engine)
Courtesy of FORD MOTOR CO.

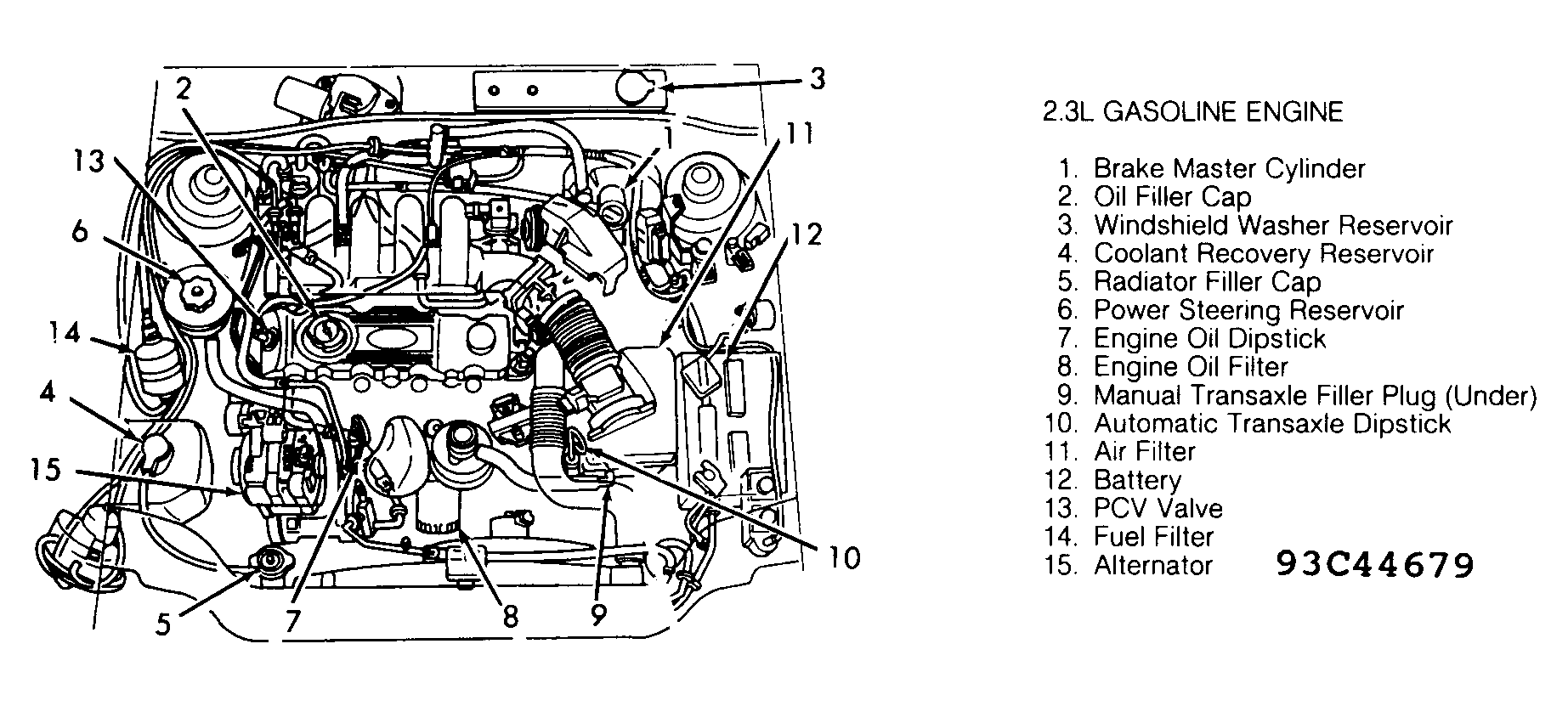

Fig 2: Service Point Locations (2.3L Gasoline Engine)
Courtesy of FORD MOTOR CO.

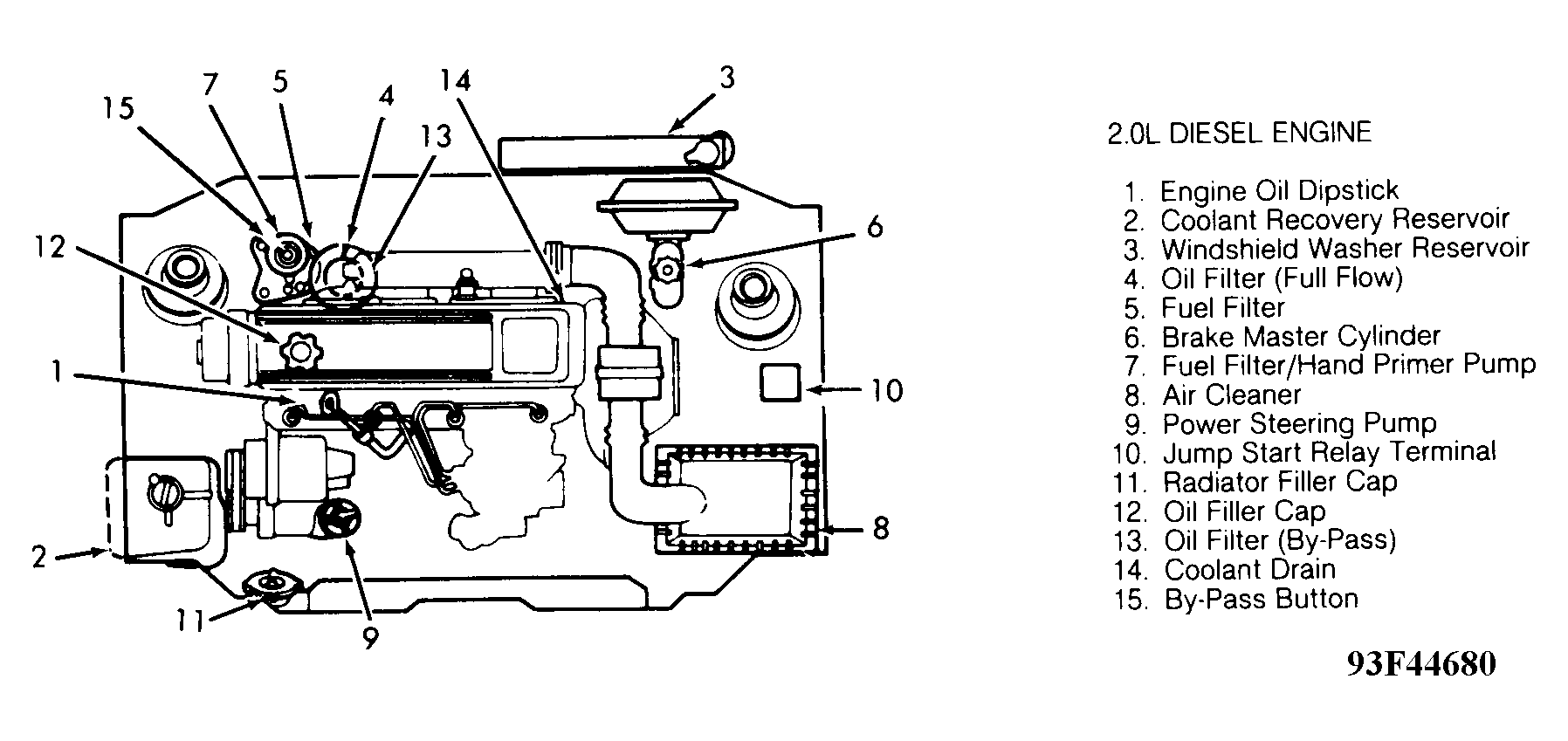

Fig 3: Service Point Locations (2.0L Diesel Engine)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
