All PFI & Ma PFI Models

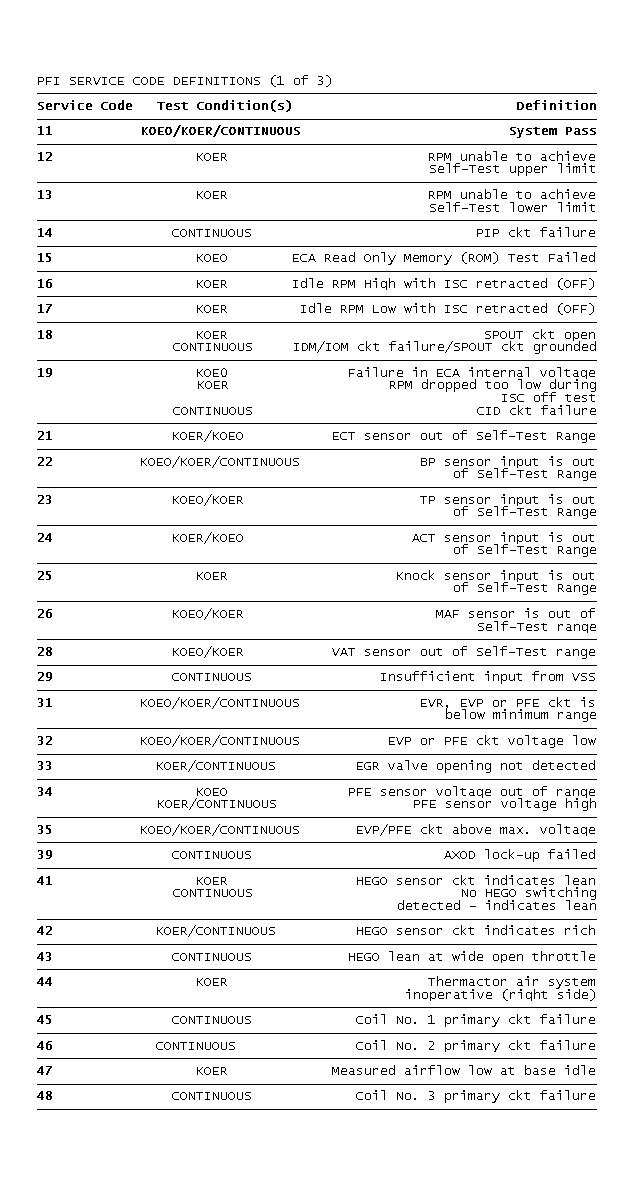

Fig 1: PFI SERVICE CODE DEFINITIONS (1 of 3)
GB0049050

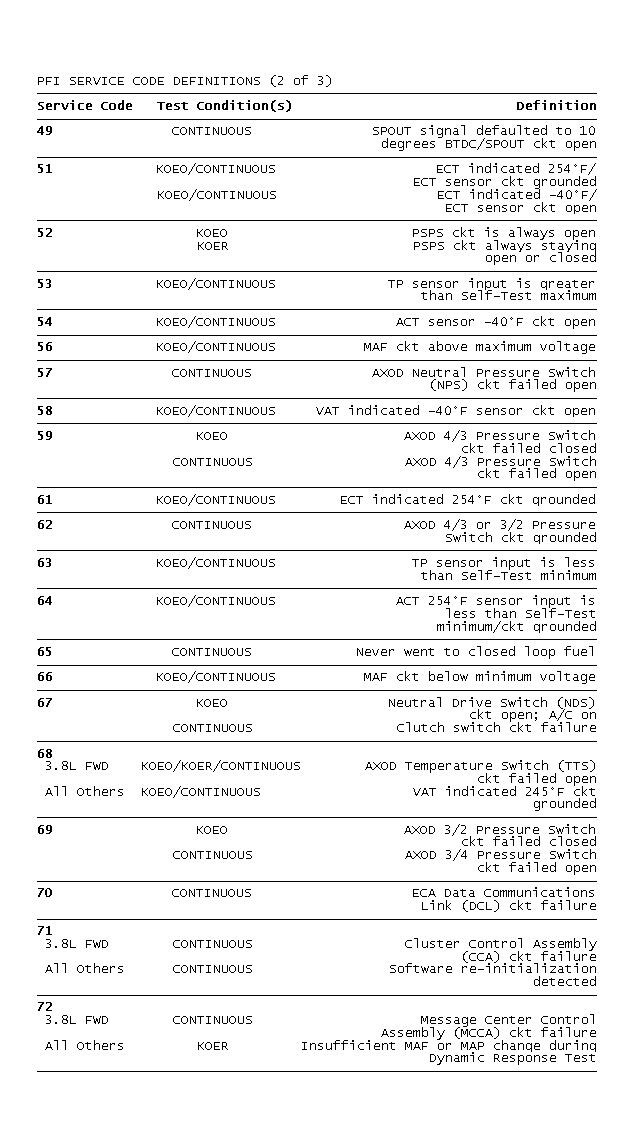

Fig 2: PFI SERVICE CODE DEFINITIONS (2 of 3)
GB0049051

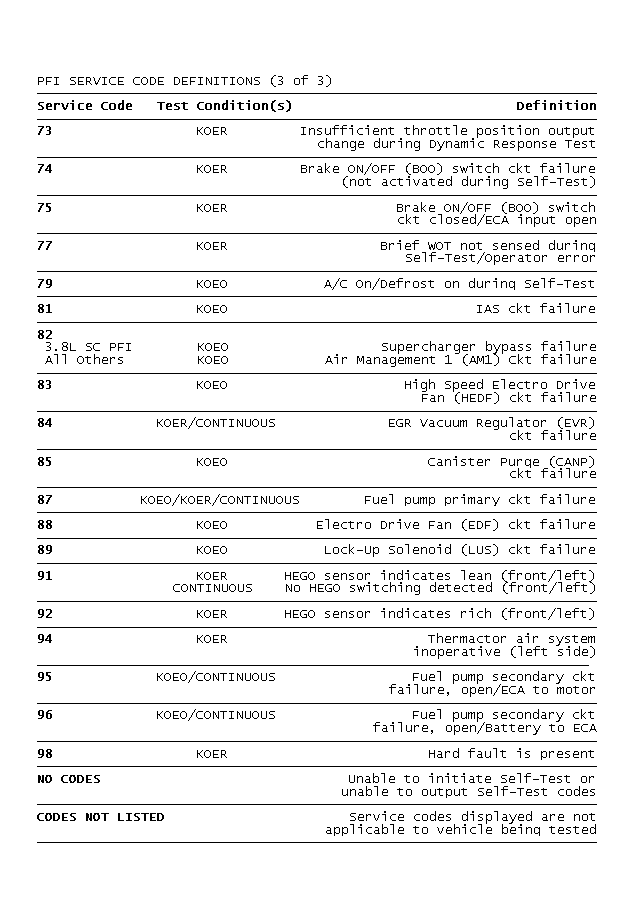

Fig 3: PFI SERVICE CODE DEFINITIONS (3 of 3)
GB0049052
