Service Point Locations

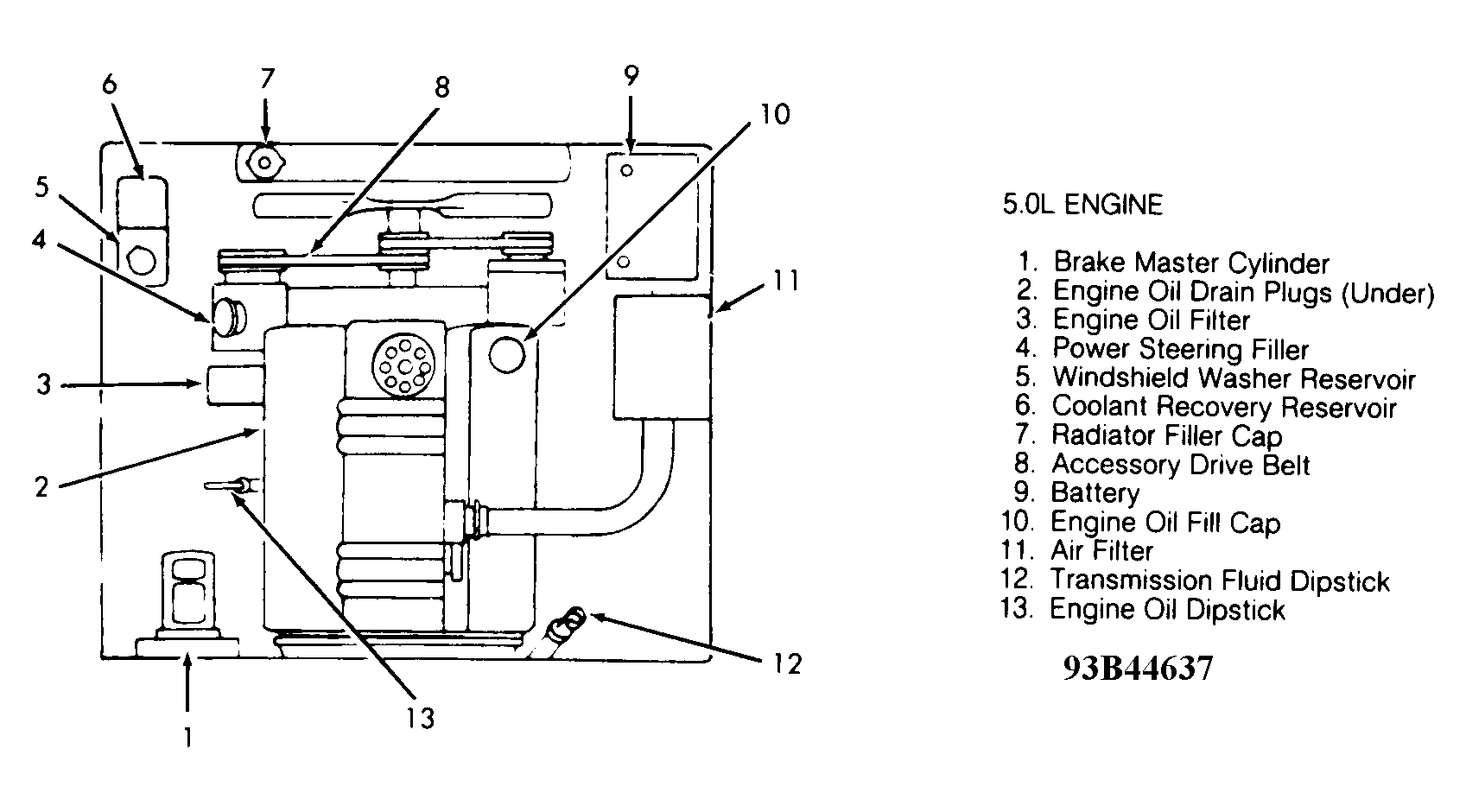

Fig 1: Service Point Locations (5.0L Engine)

G93B44637

Courtesy of FORD MOTOR CO.

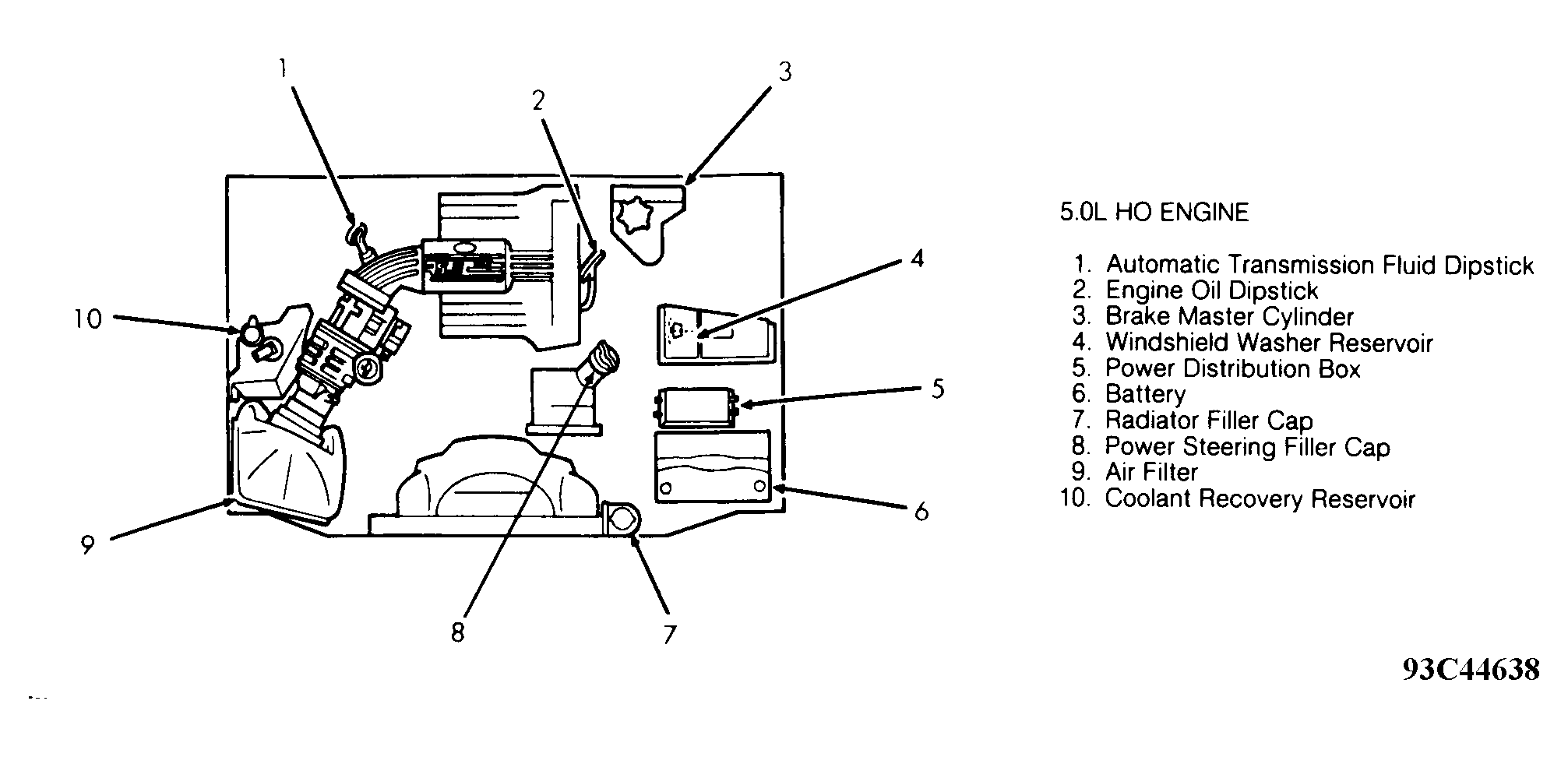

Fig 2: Service Point Locations (5.0L HO Engine)

G93C44638

Courtesy of FORD MOTOR CO.

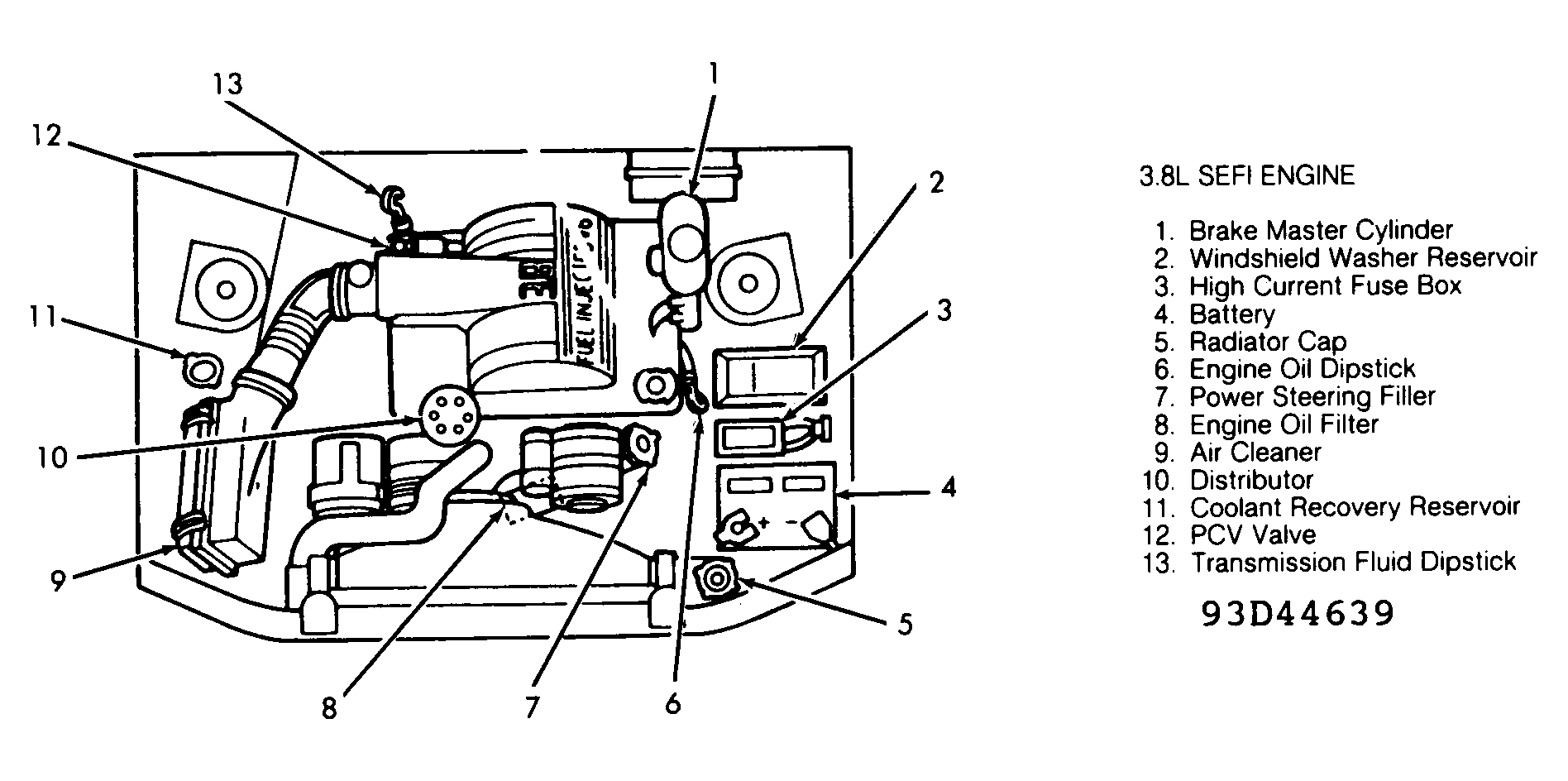

Fig 3: Service Point Locations (3.8L SEFI Engine)

G93D44639

Courtesy of FORD MOTOR CO.

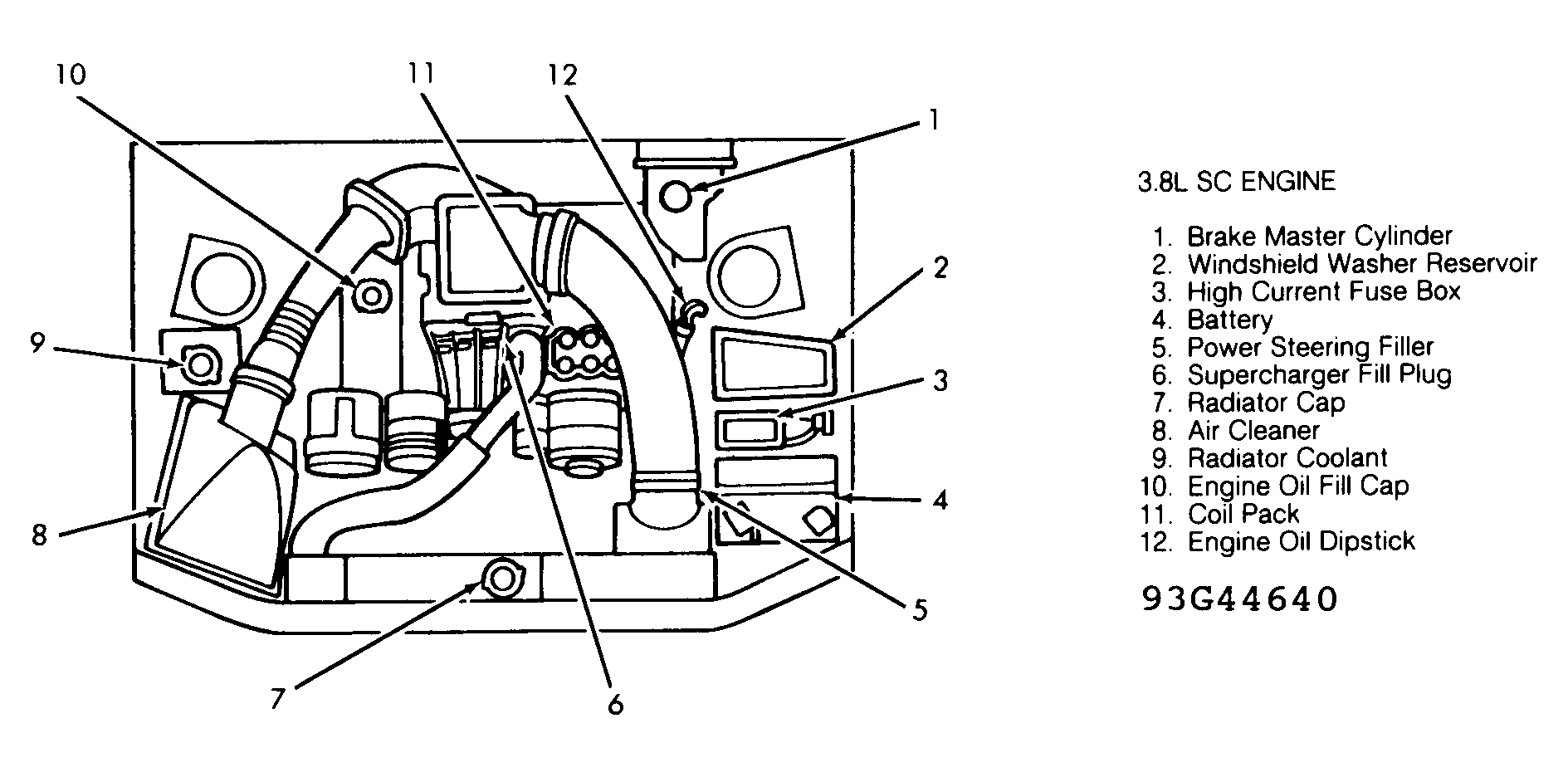

Fig 4: Service Point Locations (3.8L SC Engine)

G93G44640

Courtesy of FORD MOTOR CO.

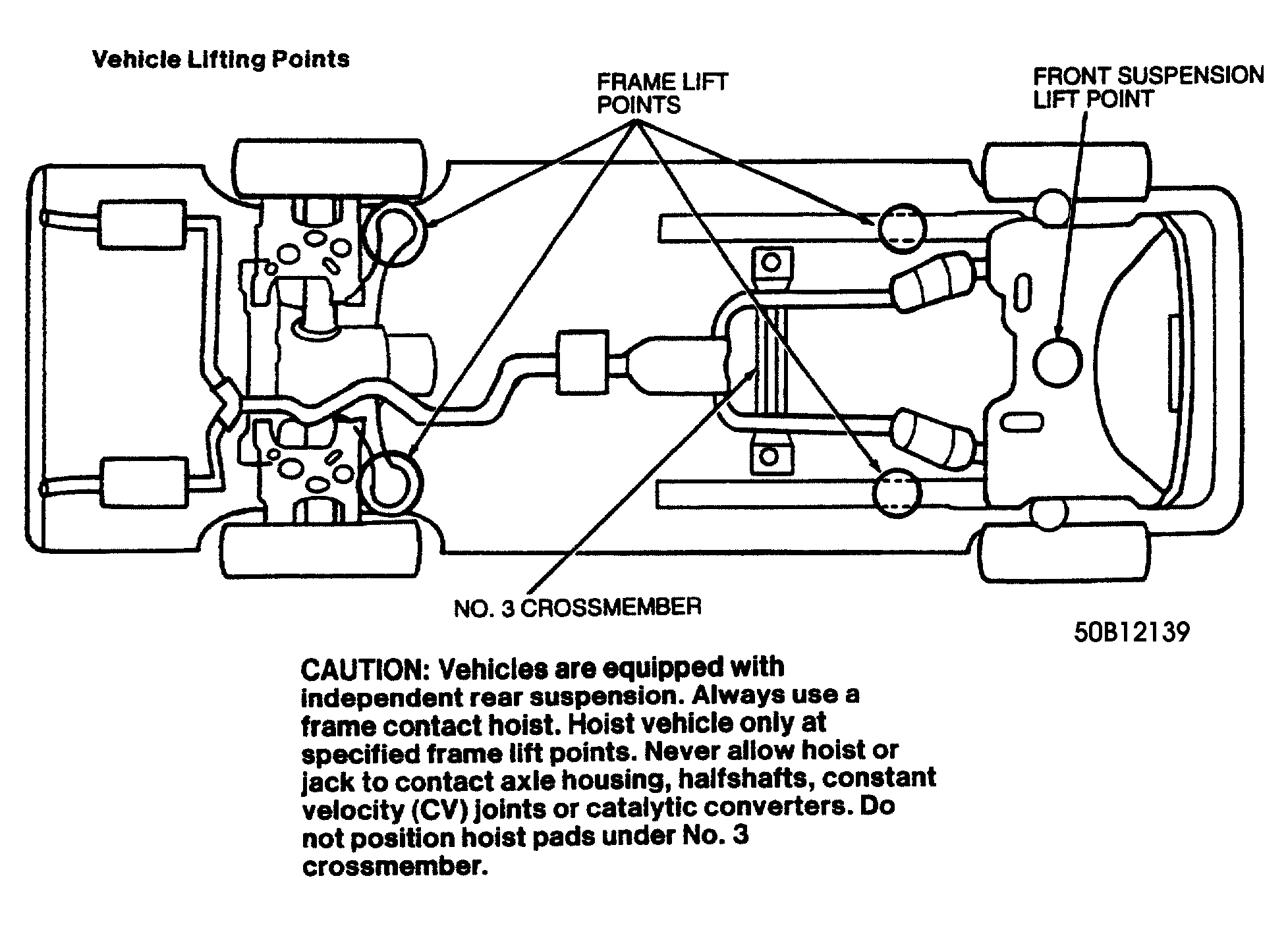

Fig 5: Lift Point Locations

G50B12139

Courtesy of FORD MOTOR CO.
