"E" Series
- Loosen bolts attaching steering column bracket to brake and clutch pedal support. Loosen steering column opening cover plate-to-dash panel bolts.

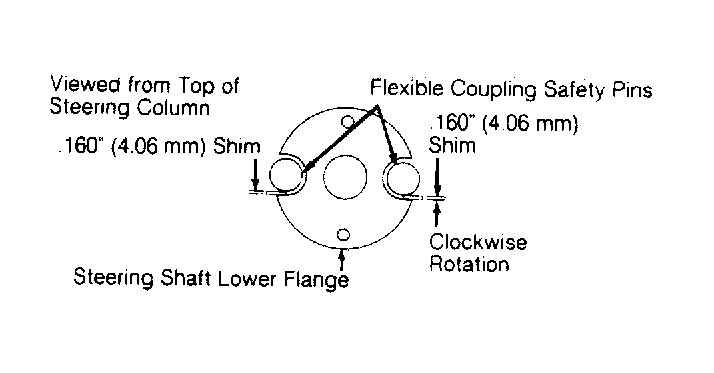

- Loosen steering column opening cover clamp bolt. Verify coupling pin to flange cut-out clearance is .160 (4.06 mm). See Fig 1 . If clearance is not to specification, loosen flange coupling nuts, and adjust.
- When adjustment is completed, tighten all nuts and bolts to specifications. See TORQUE SPECIFICATIONS .
