Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Power Door Locks | In cavity No. 12 of fuse block. See Figure . | |
| Power Windows | In cavity No. 14 of fuse block. See Figure . | |
| Windshield Wiper | In cavity No. 2 of fuse block. See Figure . | |

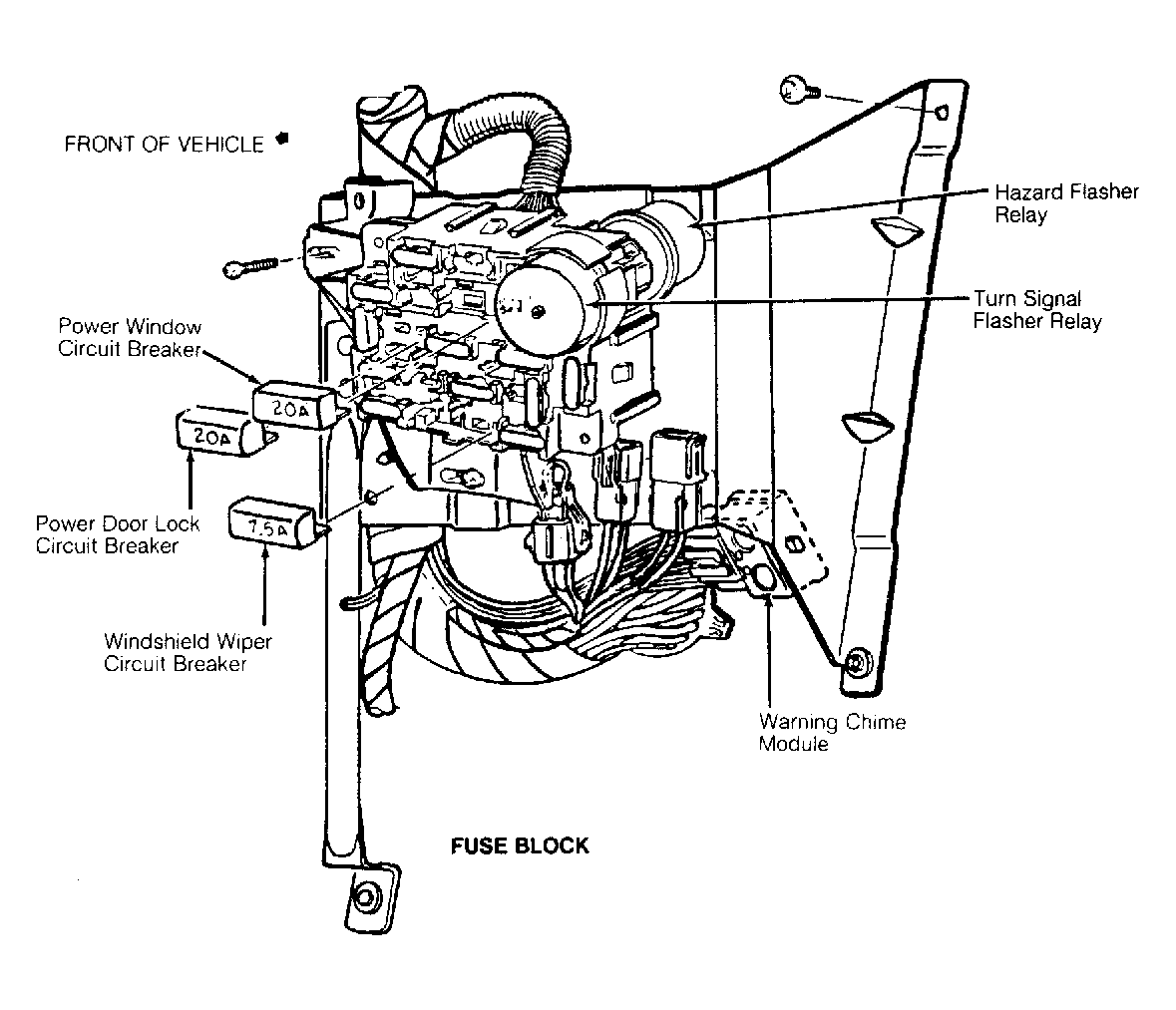

| Fuse Block | Under dash, left of steering column. See Figure . | |
| Fusible Links | ||
| A/C-Heater Blower Relay (Blue 20 Ga.) | Near blower motor relay. See Figure . | |

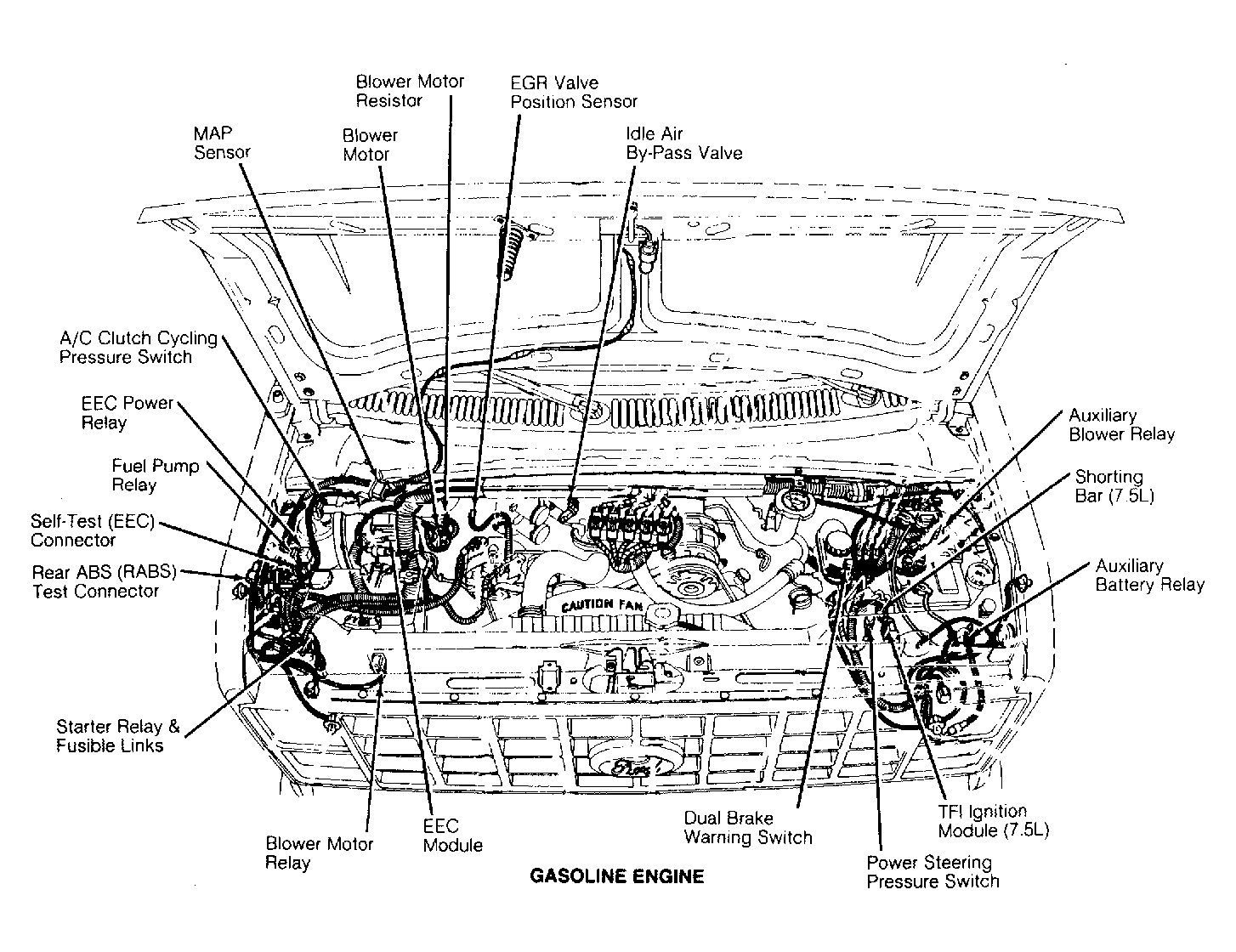

| Alternator (Gray 12 Ga.) | At starter relay. See Figure & Figure . | |
| Auxiliary Battery (Black 16 Ga.) | At starter relay. See Figure & Figure . | |
| Auxiliary Blower Motor (Brown 18 Ga.) | Near auxiliary blower relay. | |
| Courtesy Lights (Blue 20 Ga.) | At starter relay. See Figure & Figure . | |
| EEC Module (Blue 20 Ga.) | At starter relay. See Figure & Figure . | |
| Fuel Shut-Off Solenoid (Blue 20 Ga. - Diesel) | On center of firewall. | |
| Glow Plug Control (Green 14 Ga.) | At starter relay. See Figure & Figure . | |
| Headlight Switch (Brown 18 Ga.) | On left side of master cylinder. | |
| Ignition Switch & Turn/Hazard (Black 16 Ga.) | On left side of master cylinder. | |
| TFI Ignition Module (Blue 20 Ga. - Except Diesel) | On center of firewall. | |
| Transmission Control (Blue 20 Ga. - Diesel) | At starter relay. See Figure & Figure . | |

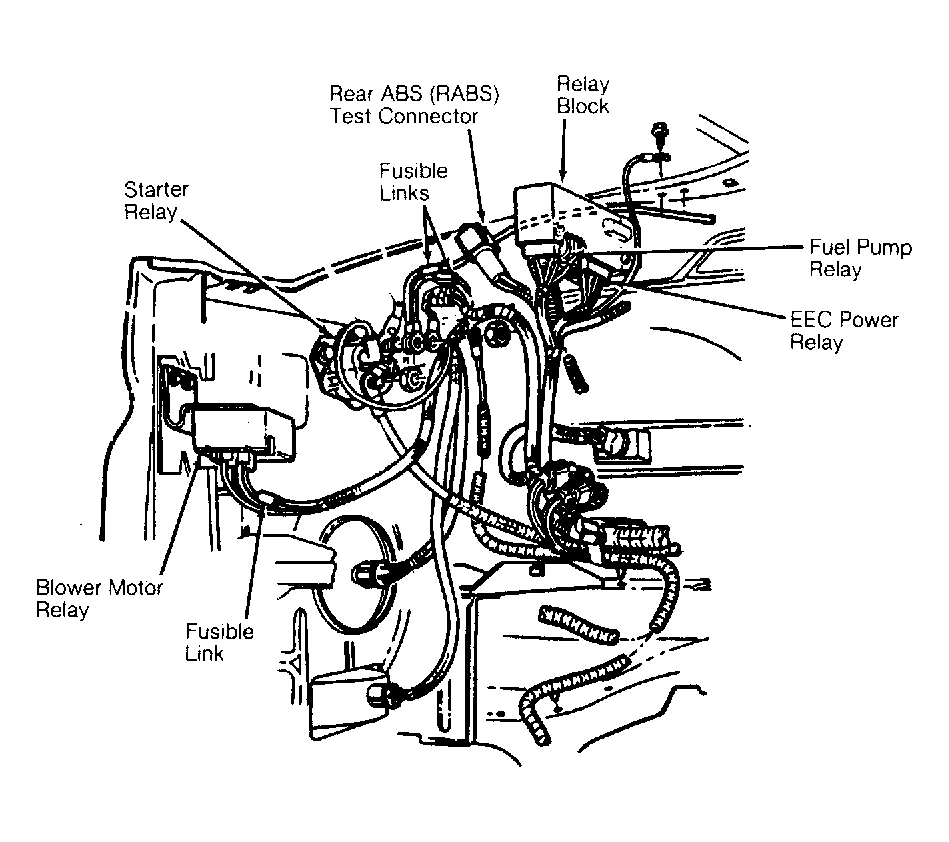

| Relay Block | Behind starter relay. See Figure . | |
