Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | On left side of firewall. | |
| Diesel Warning Light Module | Behind left side of dash. | |
| Elec. Engine Control (EEC) Module | Under blower motor. See Figure . | |

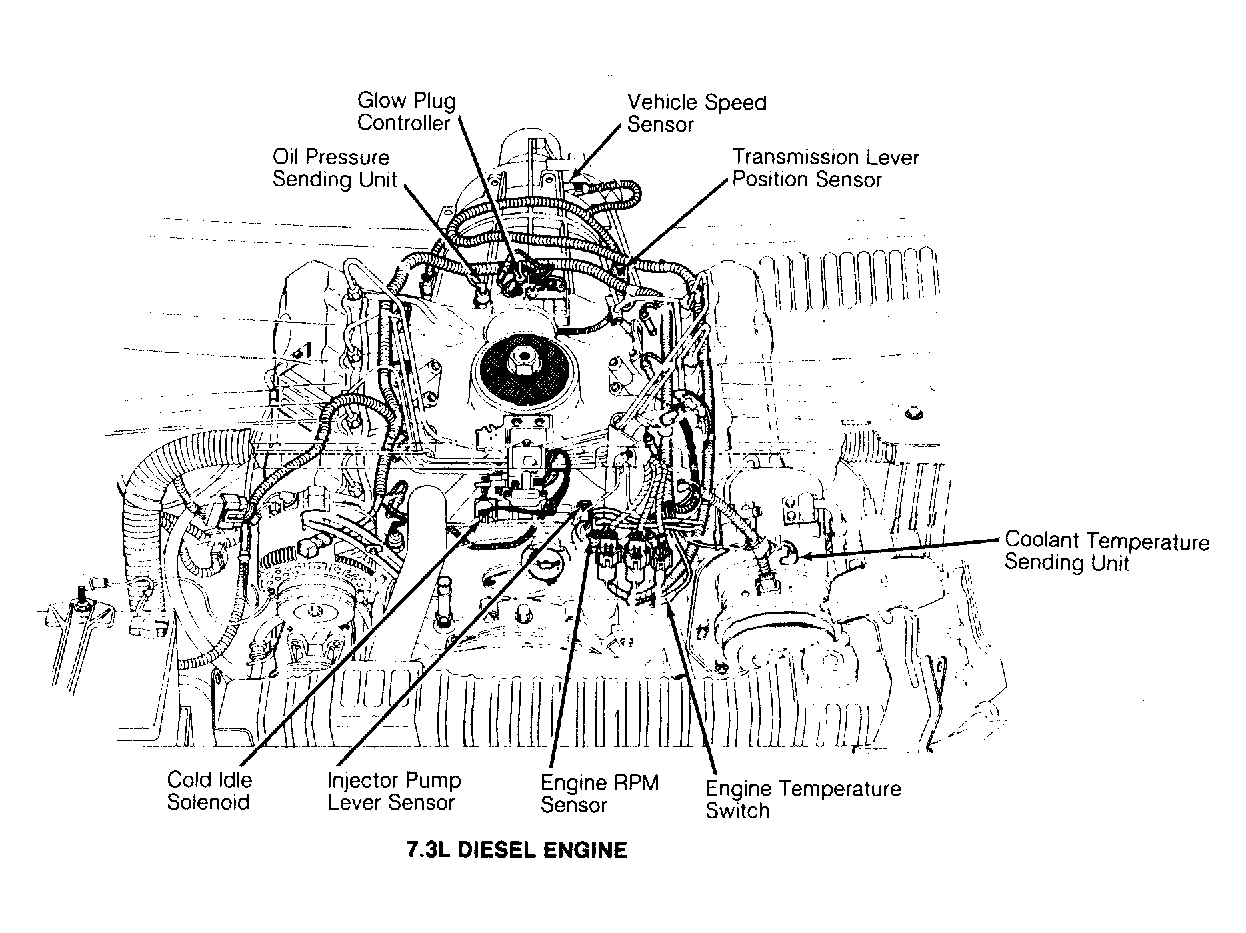

| Glow Plug Controller (Diesel) | On top rear center of engine. See Figure . | |
| TFI Ignition Module | ||

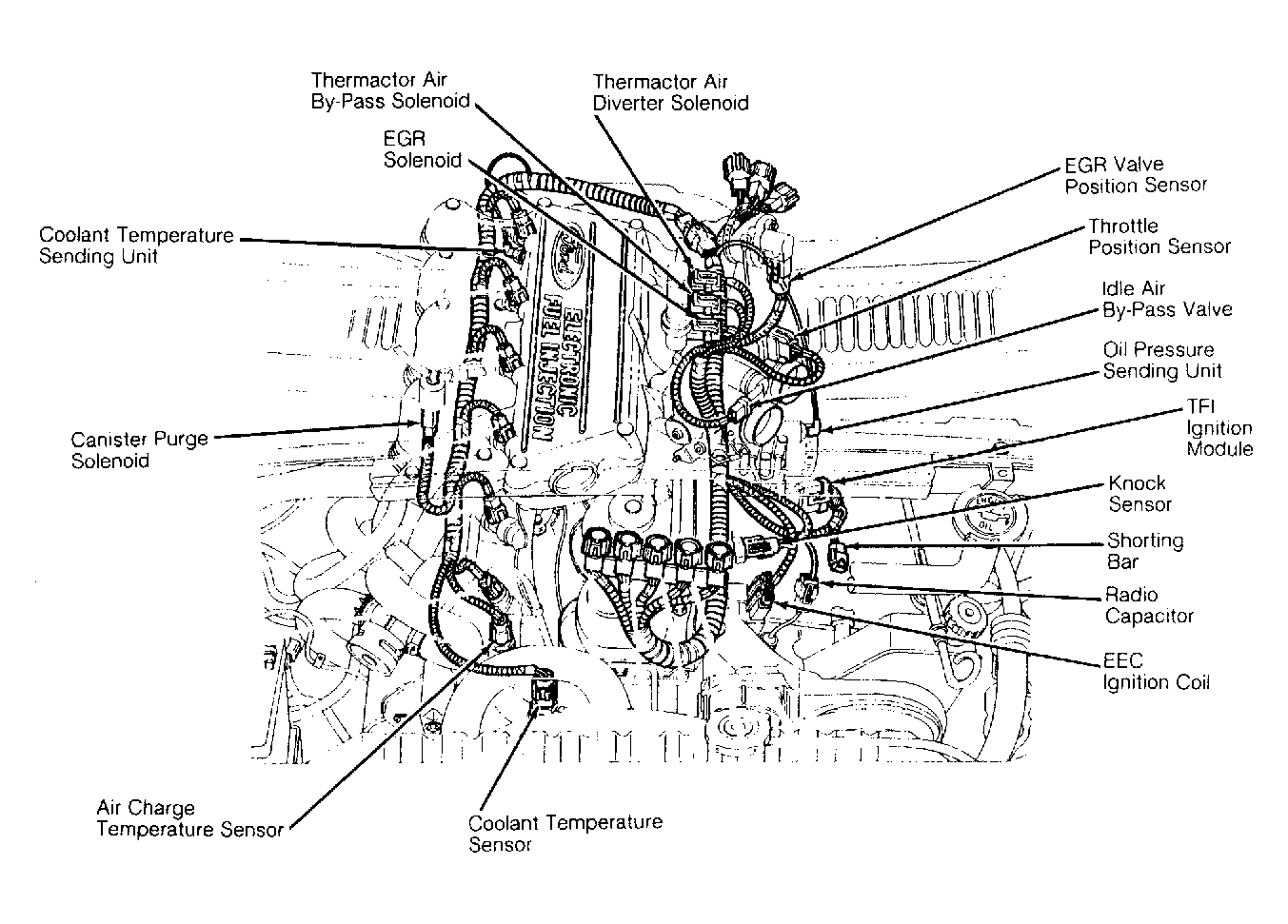

| 4.9L | On distributor. See Figure . | |

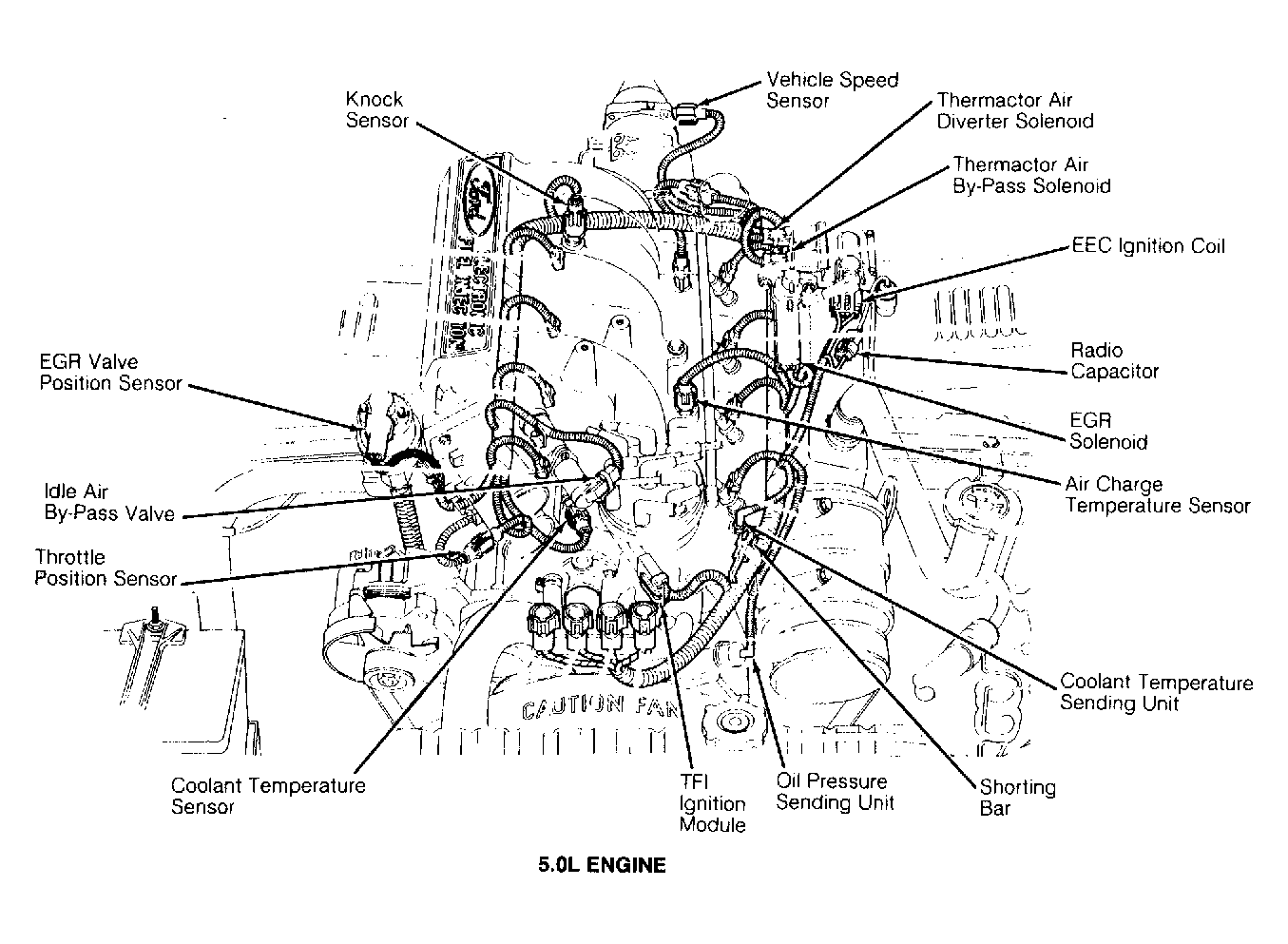

| 5.0L | On distributor. See Figure . | |

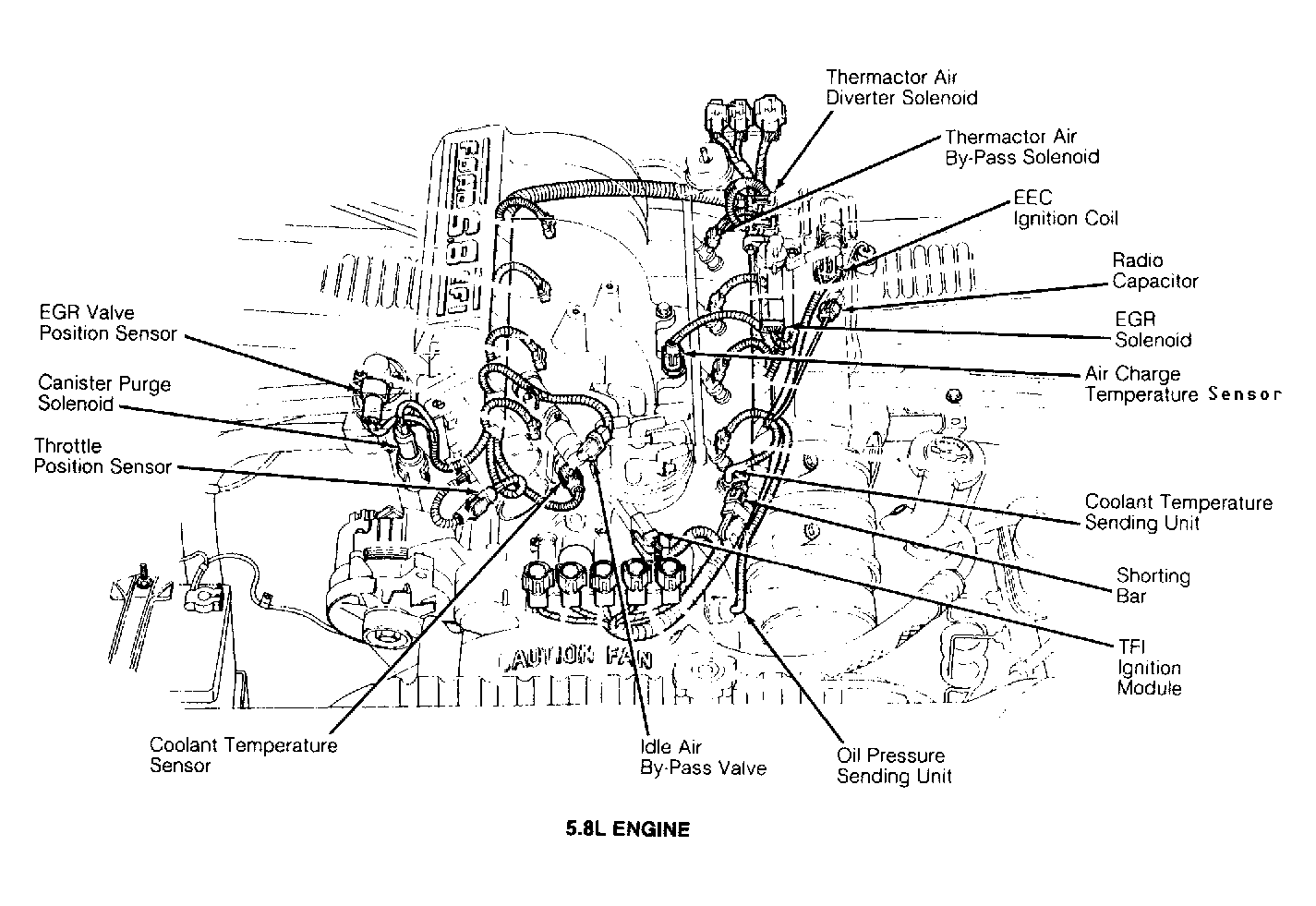

| 5.8L | On distributor. See Figure . | |
| 7.5L | On left fender apron. See Figure . | |

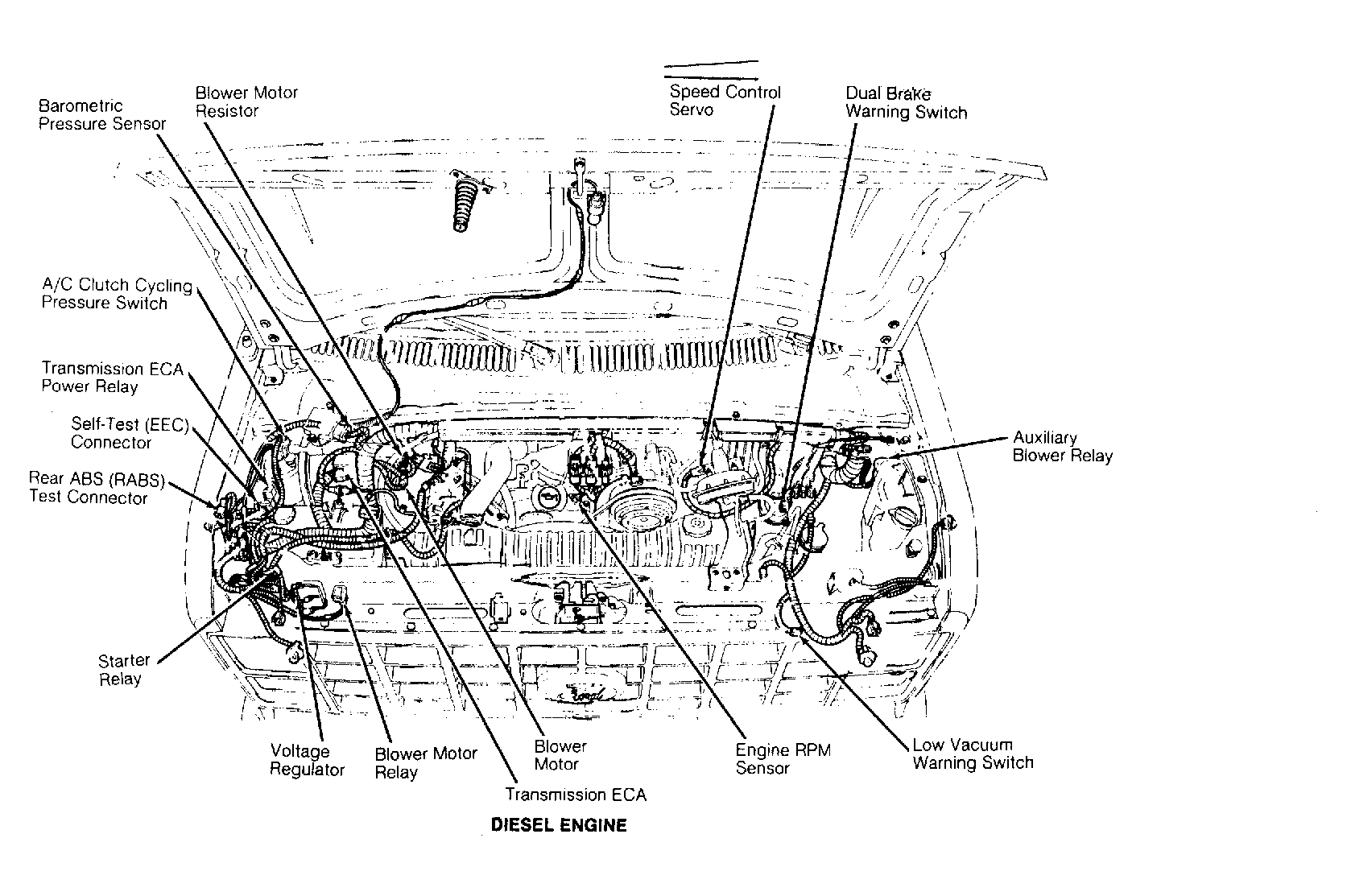

| Transmission ECA | Under blower motor. See Figure . | |
| Warning Chime Module | Under dash, behind fuse block bracket. See Figure . | |
| Windshield Wiper Interval Governor | Behind left side of instrument cluster. | |
