Wiring Diagrams

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of FORD MOTOR CO.

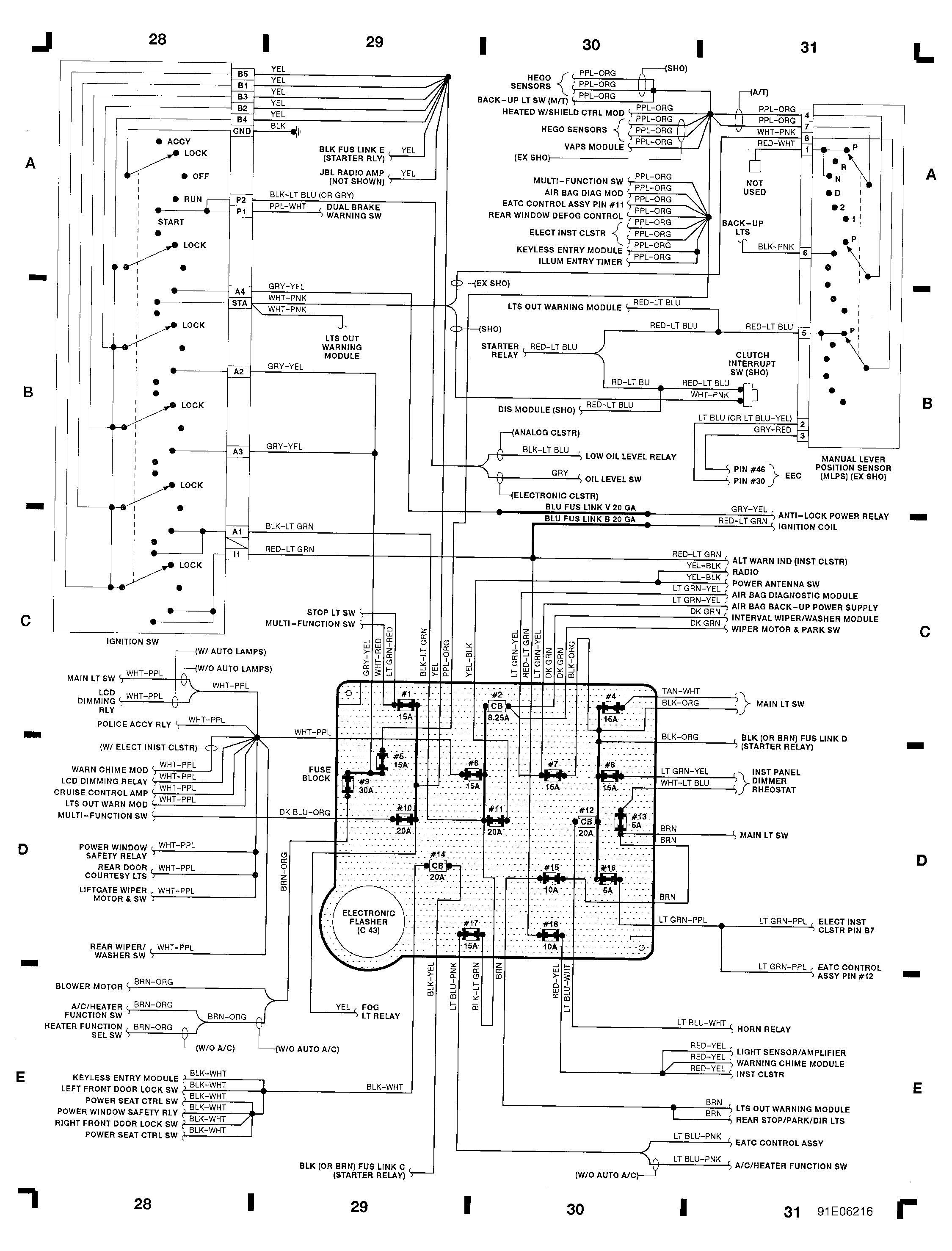

Fig 2: Ignition Switch And Fuse Block Wiring Diagram
G91E06216Courtesy of FORD MOTOR CO.
