Wiring Diagrams: 3.8L

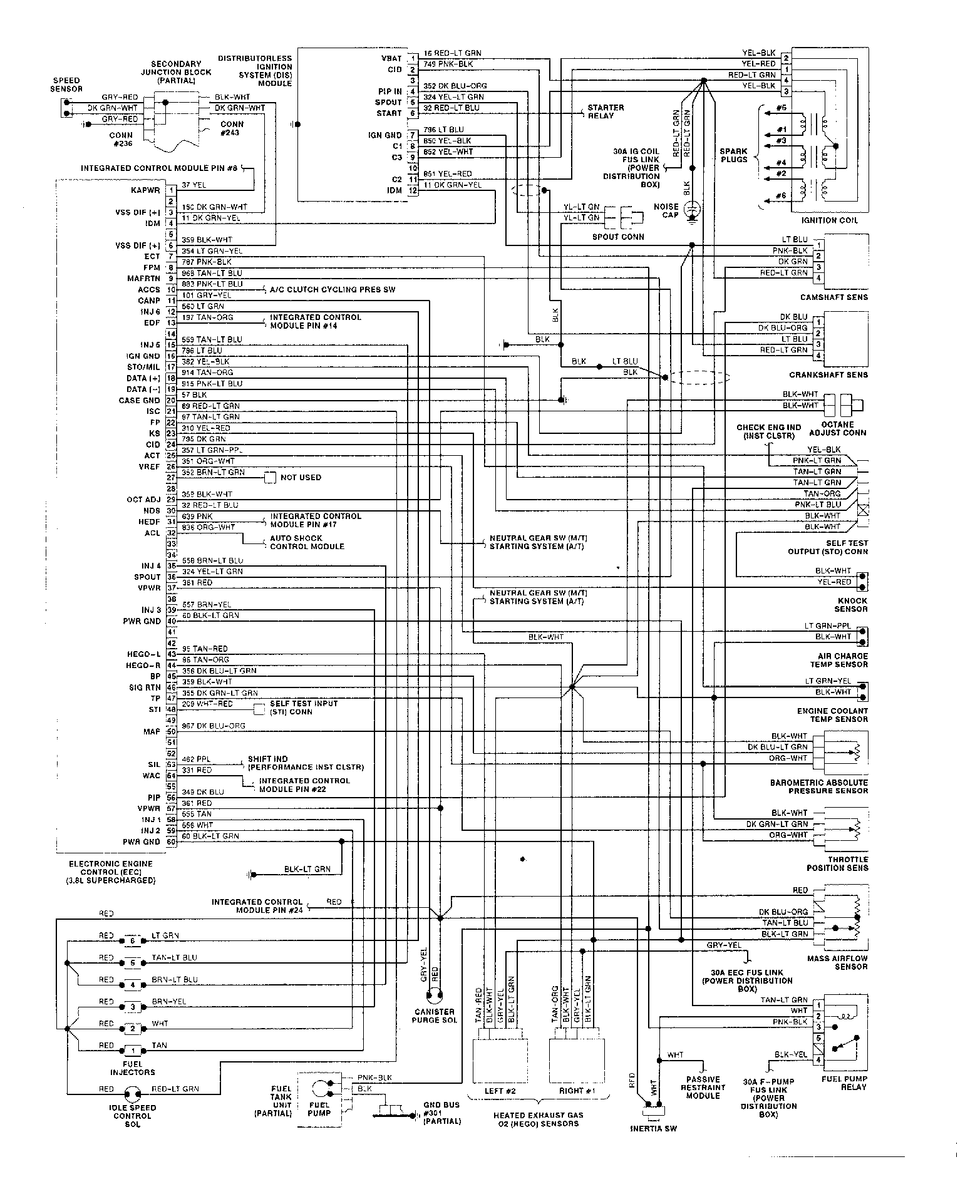

Fig 1: 3.8L SC Cougar/Thunderbird EEC-IV Wiring Diagram (1 of 2)

G91D11349

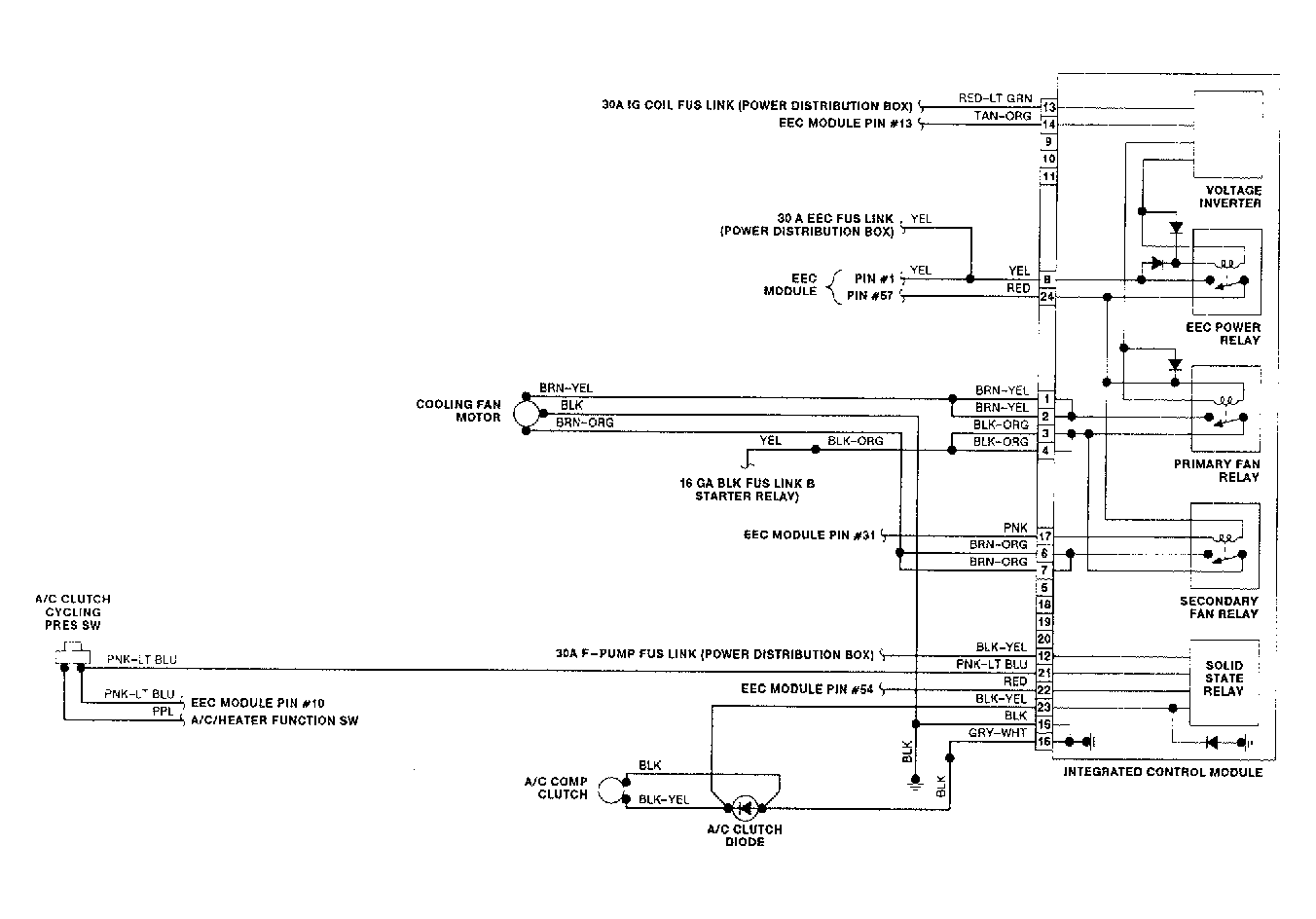

Fig 2: 3.8L SC Cougar/Thunderbird EEC-IV Wiring Diagram (2 of 2)

G91H11350
