Window Regulator: Removal

Remove door trim panel and watershield. See DOOR TRIM PANEL  . Prop glass in full-up position. Remove four rivets attaching regulator mounting plate assembly to door inner panel. Remove window regulator from door. Use access hole in door inner panel for removal and installation. See Fig 1 .

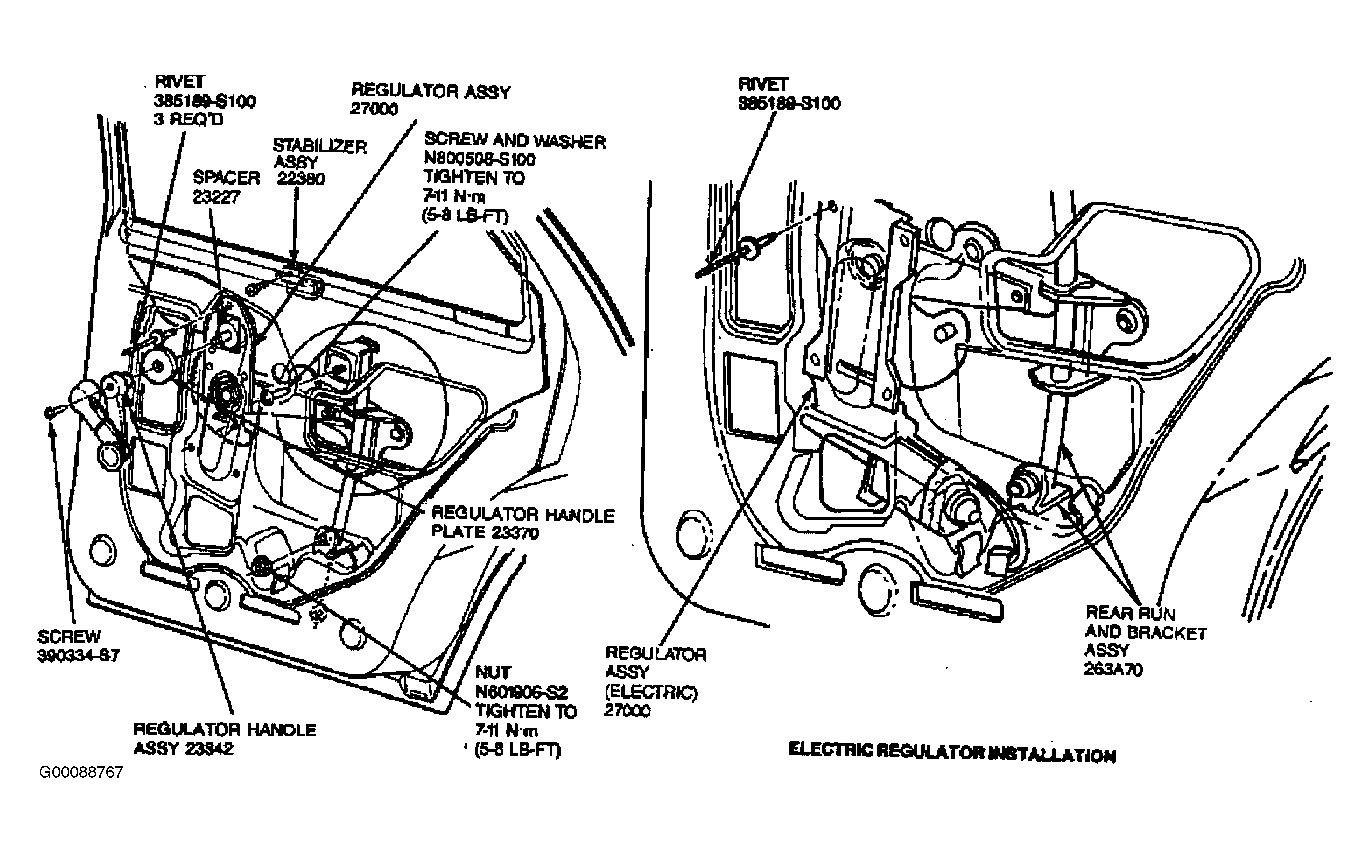

Fig 1: Removing Power Window Regulator
G00088767Courtesy of FORD MOTOR CO.
