Wiring Diagrams: 3.0L

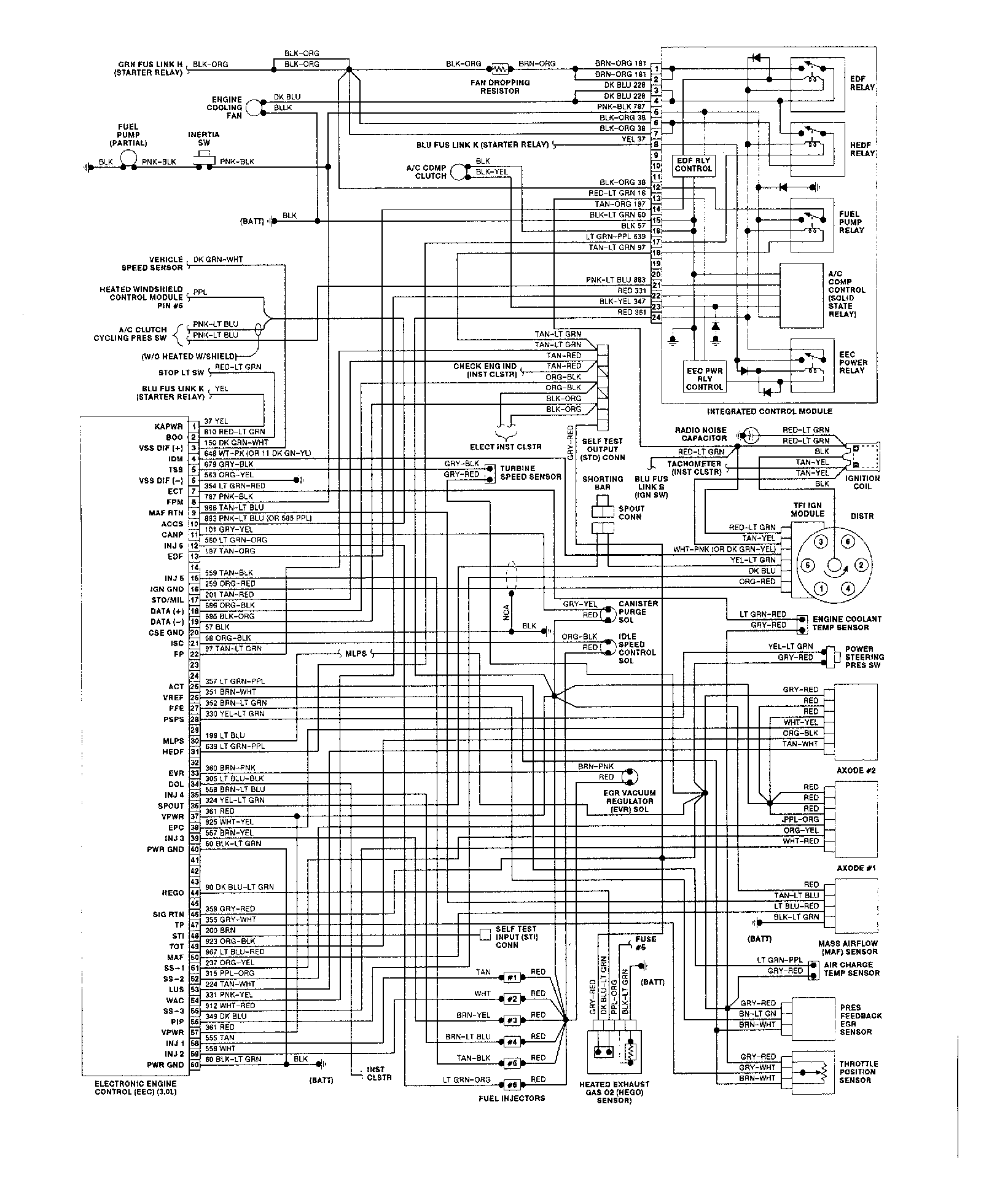

Fig 1: 3.0L Probe EEC-IV Wiring Diagram

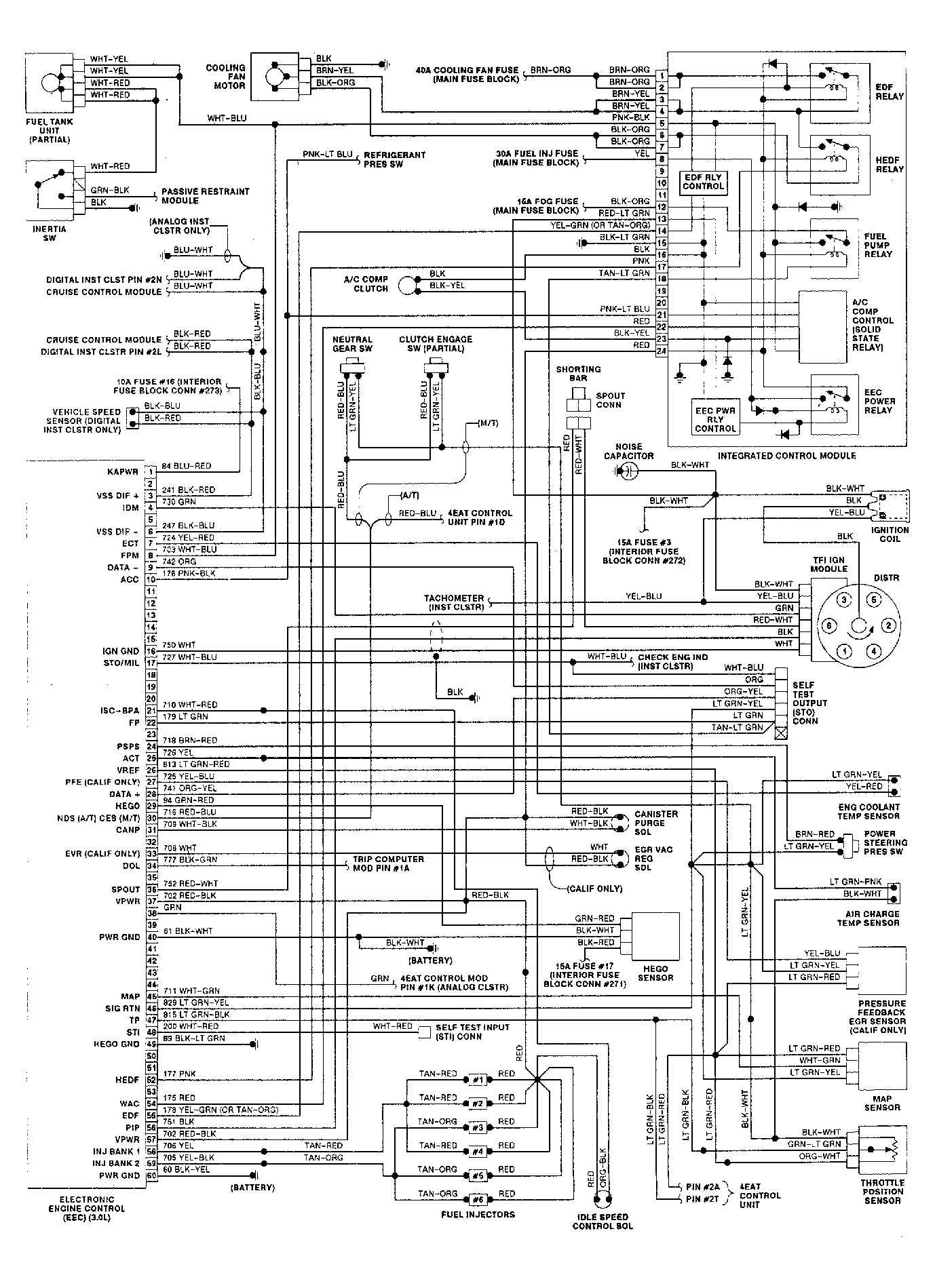

Fig 2: 3.0L Sable & Taurus EEC-IV Wiring Diagram (Except SHO)
