Wiring Diagrams: 3.8L

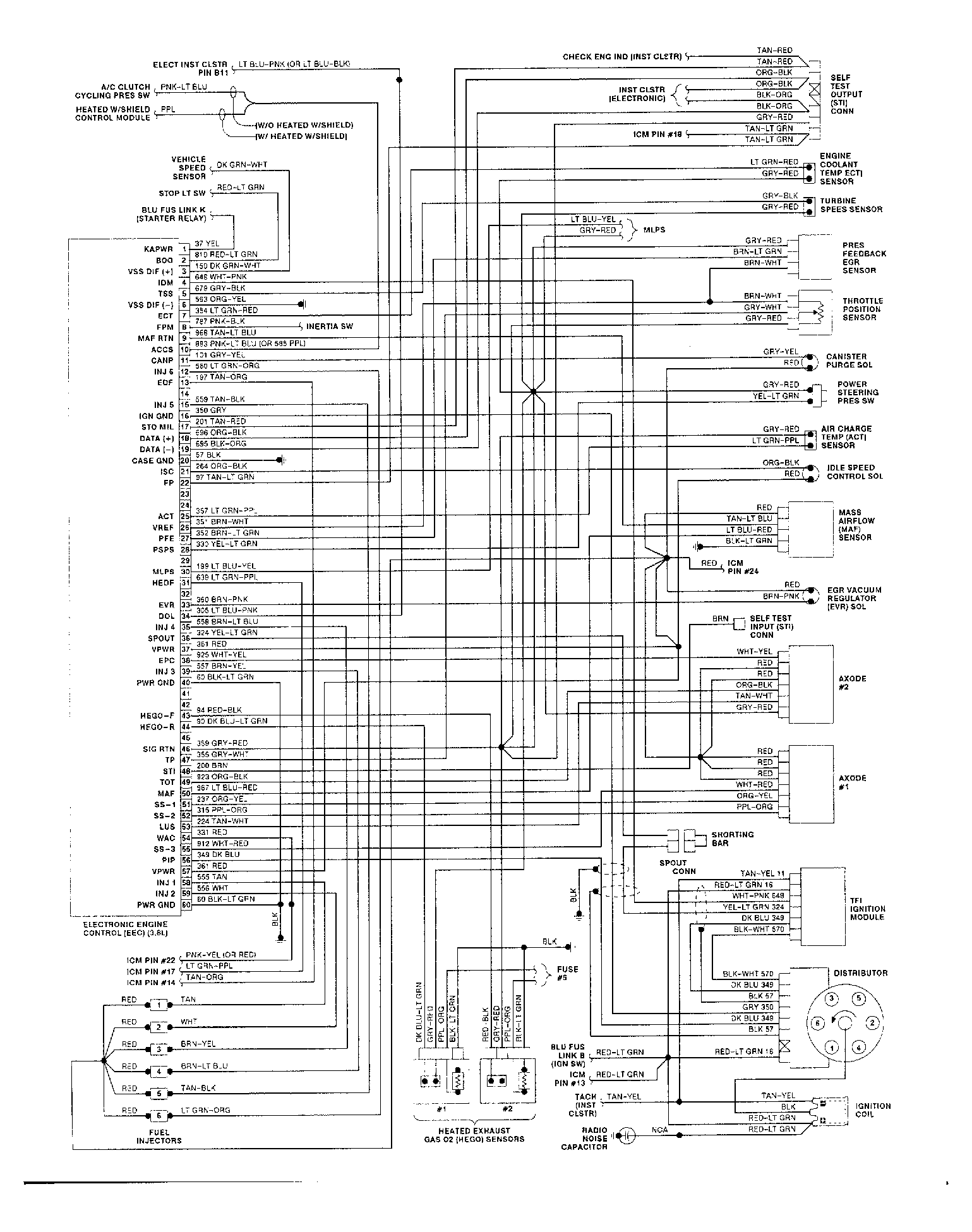

Fig 1: 3.8L Continental EEC-IV Wiring Diagram (1 of 2)

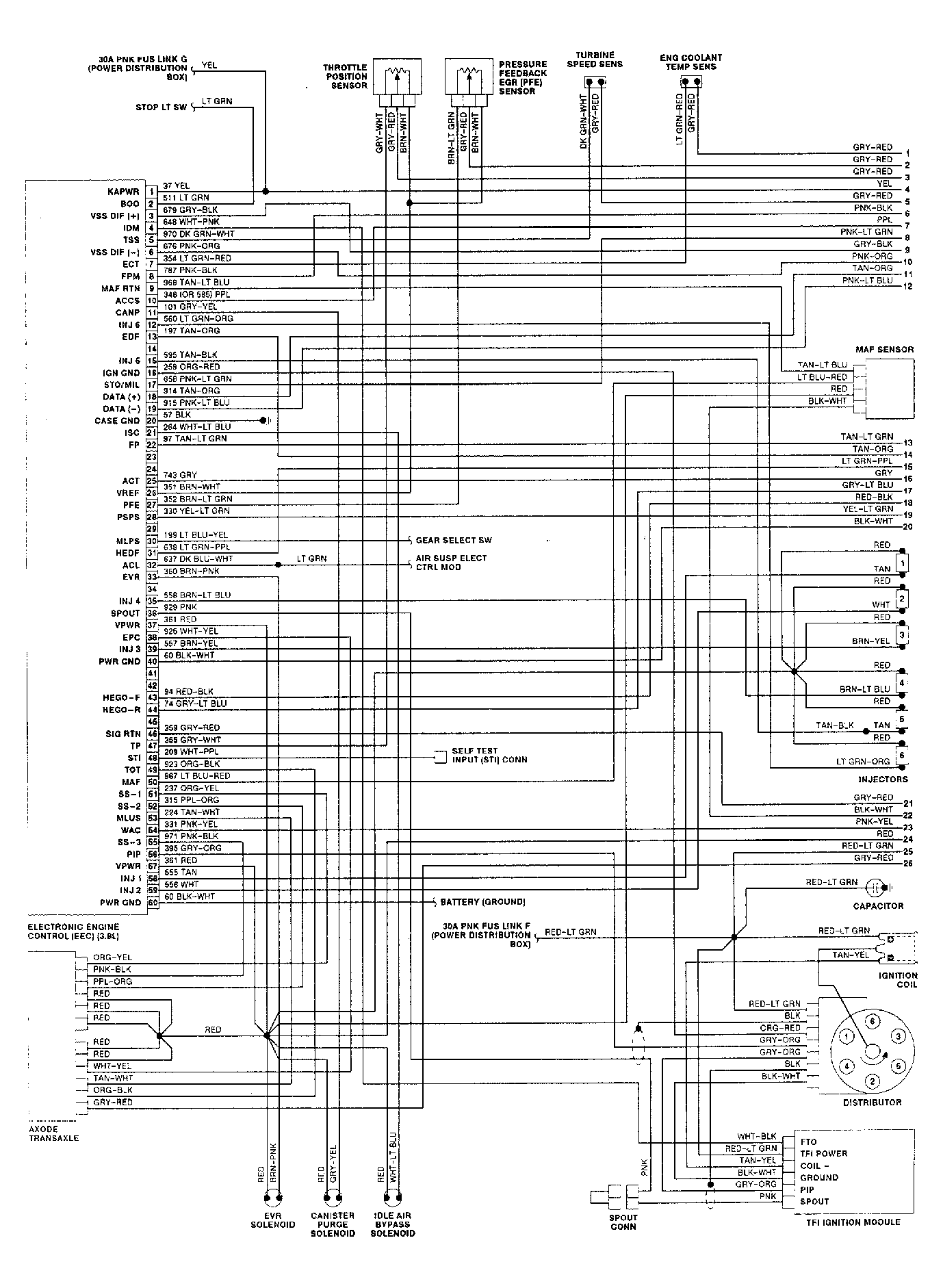

Fig 2: 3.8L Continental EEC-IV Wiring Diagram (2 of 2)

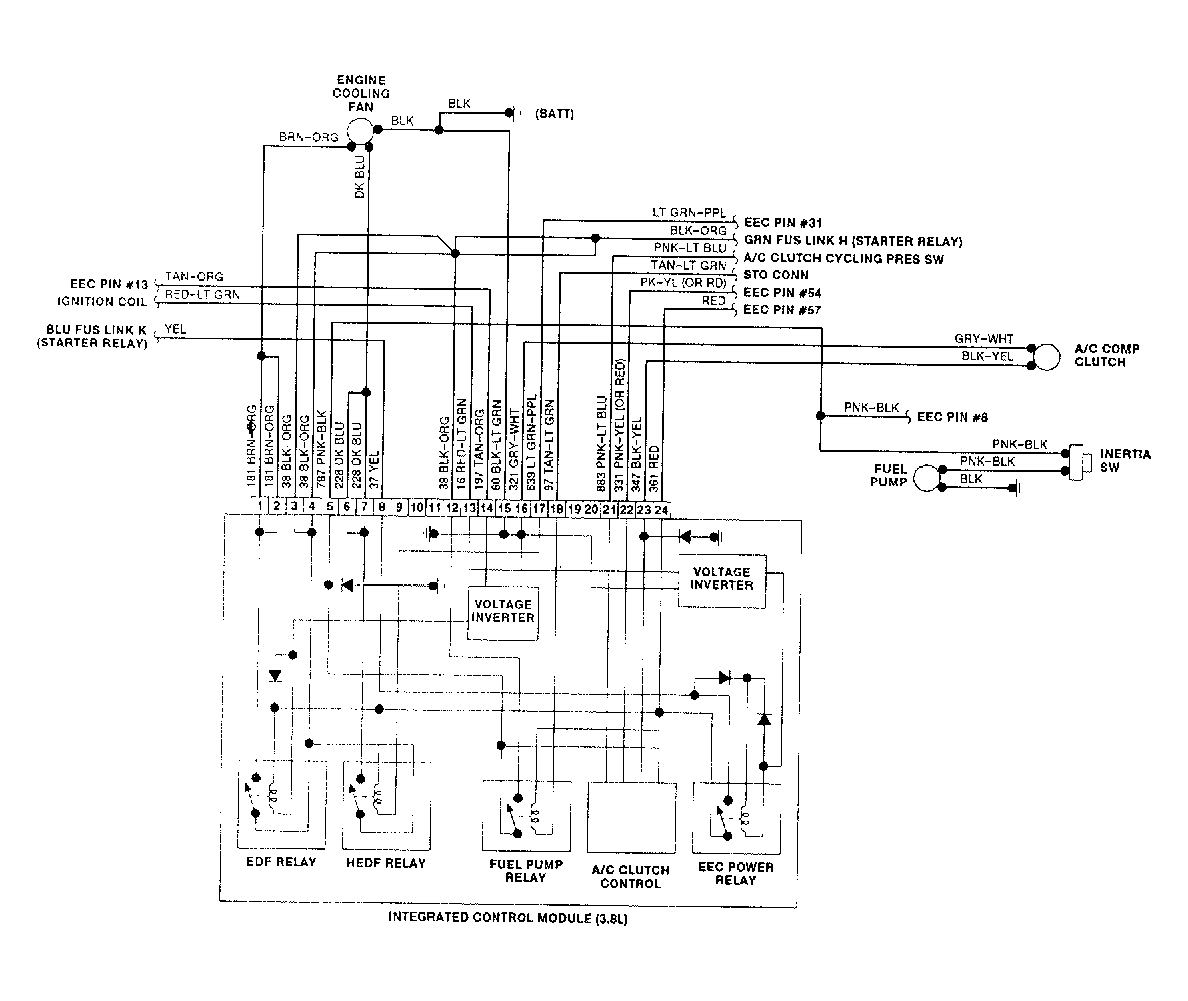

Fig 3: 3.8L Cougar & Thunderbird EEC-IV Wiring Diagram (Exc. SC)

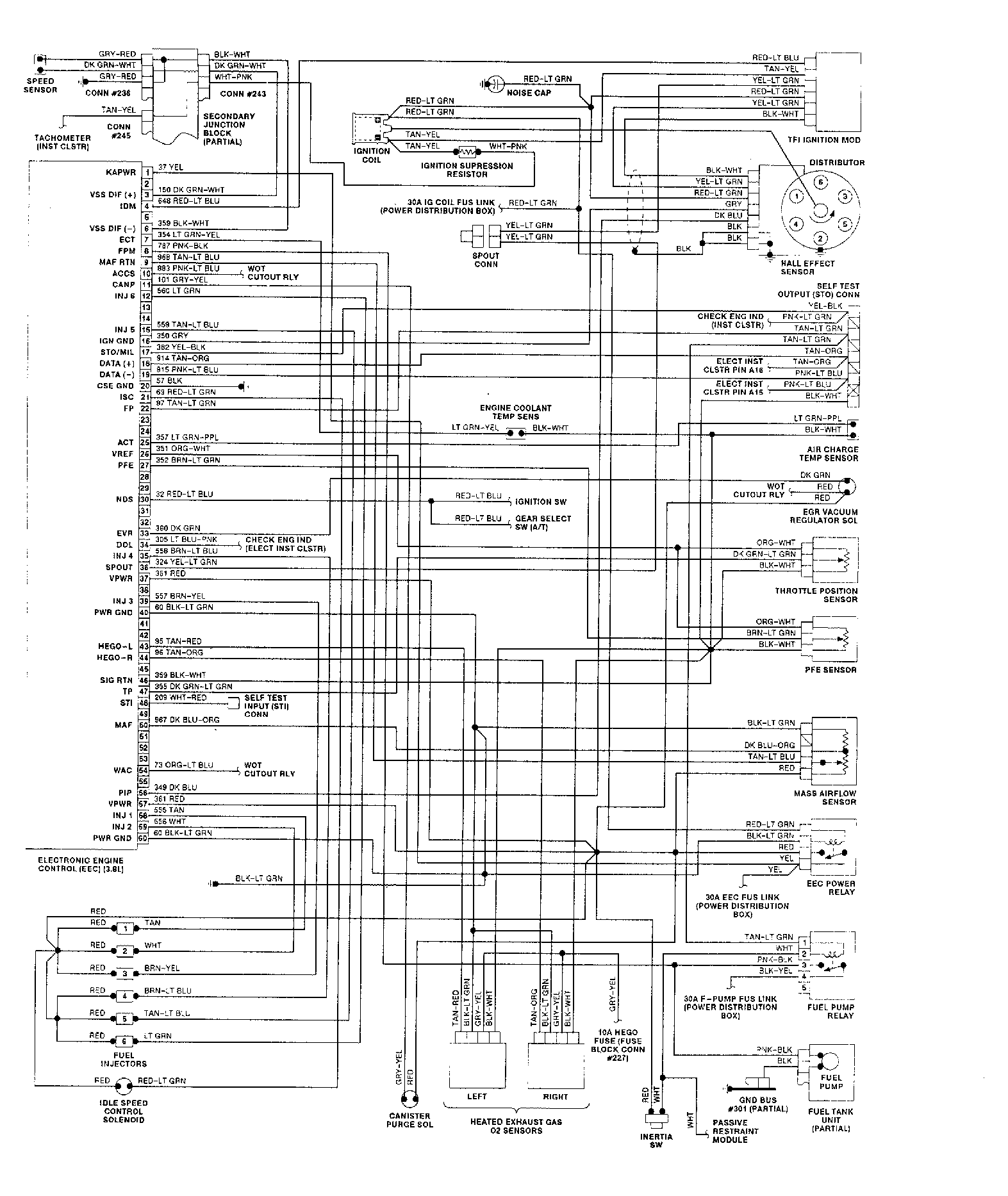

Fig 4: 3.8L Sable & Taurus EEC-IV Wiring Diagram (1 of 2)

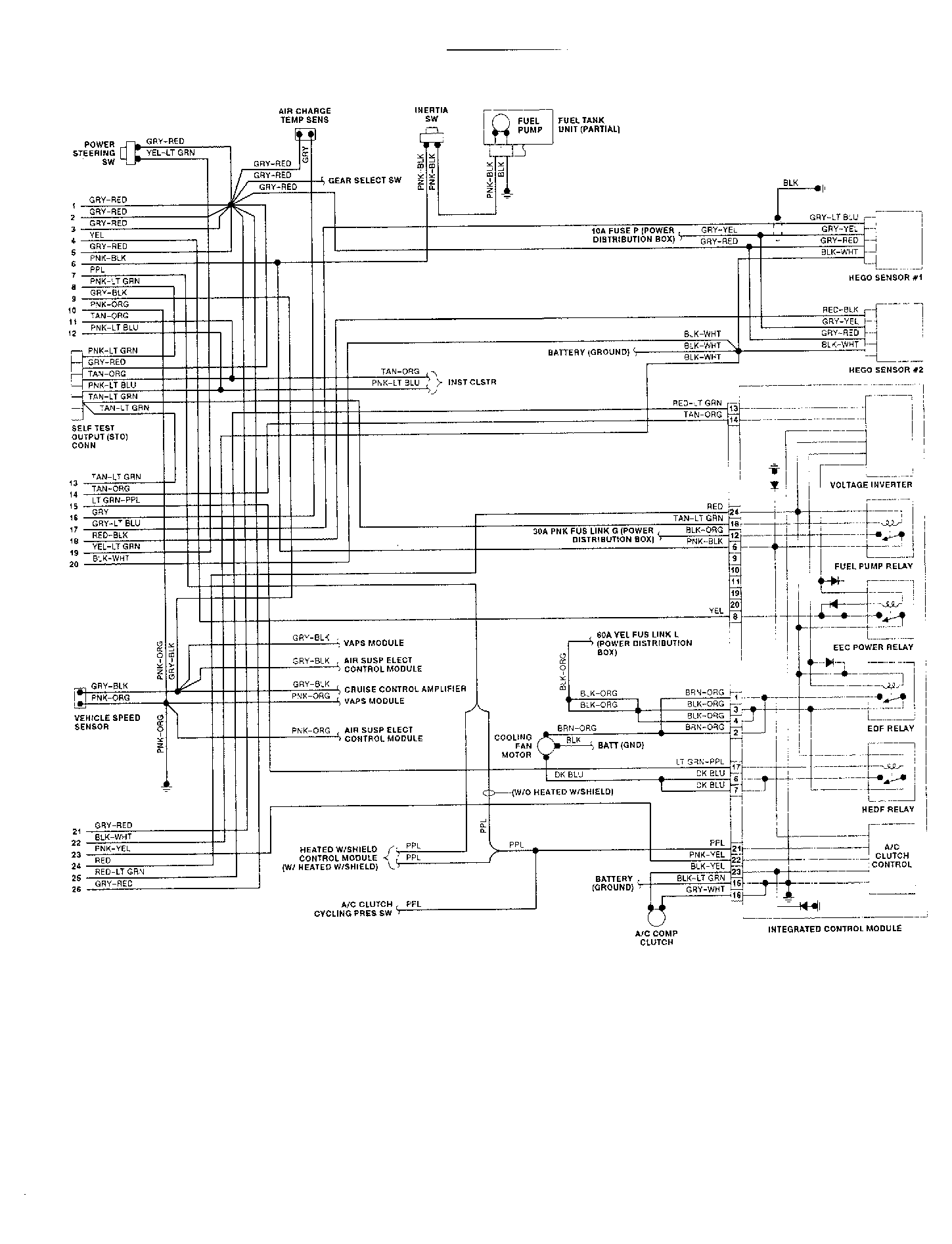

Fig 5: 3.8L Sable & Taurus EEC-IV Wiring Diagram (2 of 2)
