Wiring Diagrams: 5.0L

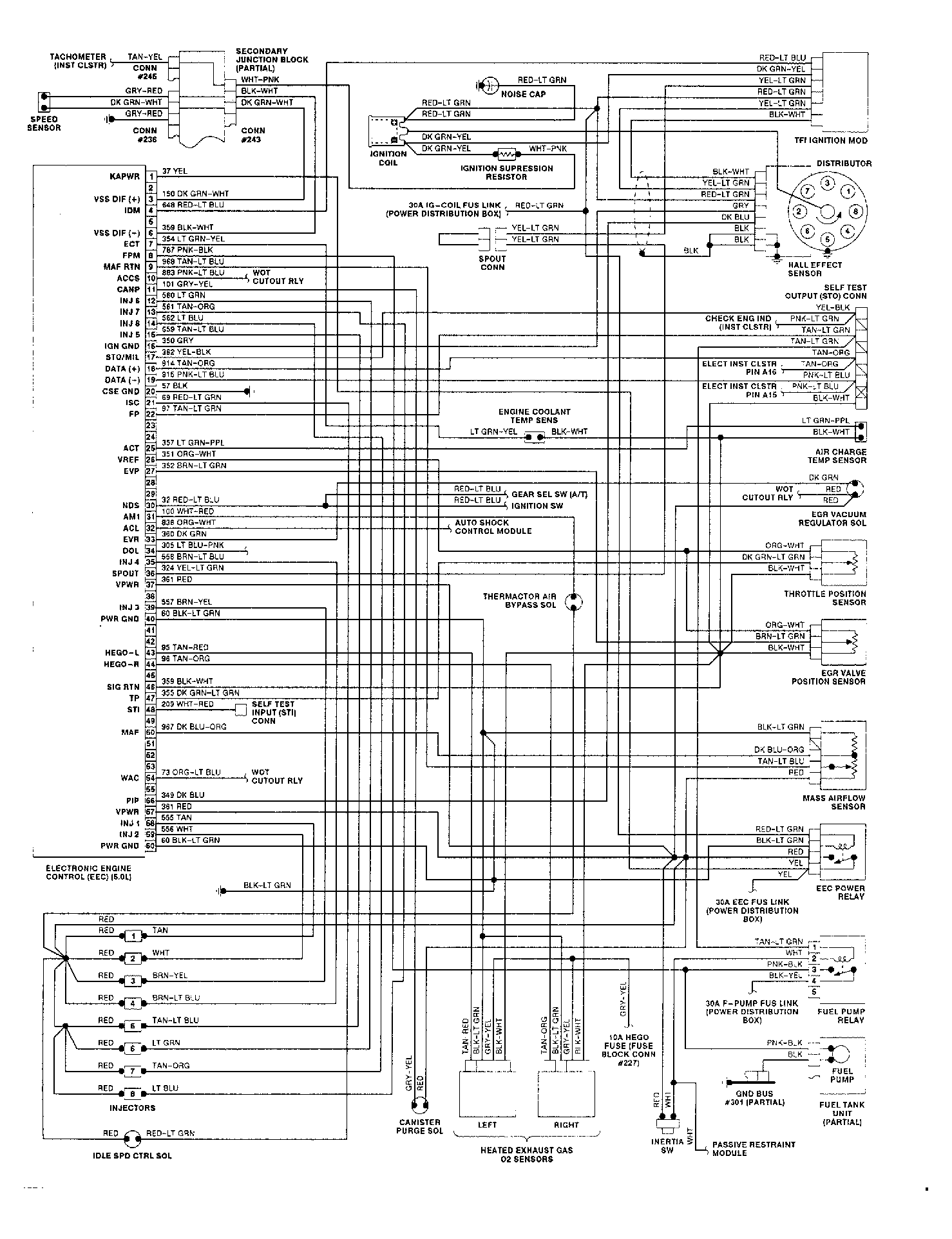

Fig 1: 5.0L Cougar & Thunderbird

G91B11354

Fig 2: 5.0L Crown Victoria & Grand Marquis (California)

G91C11355

Fig 3: 5.0L Crown Victoria & Grand Marquis (Federal)

G91D11356

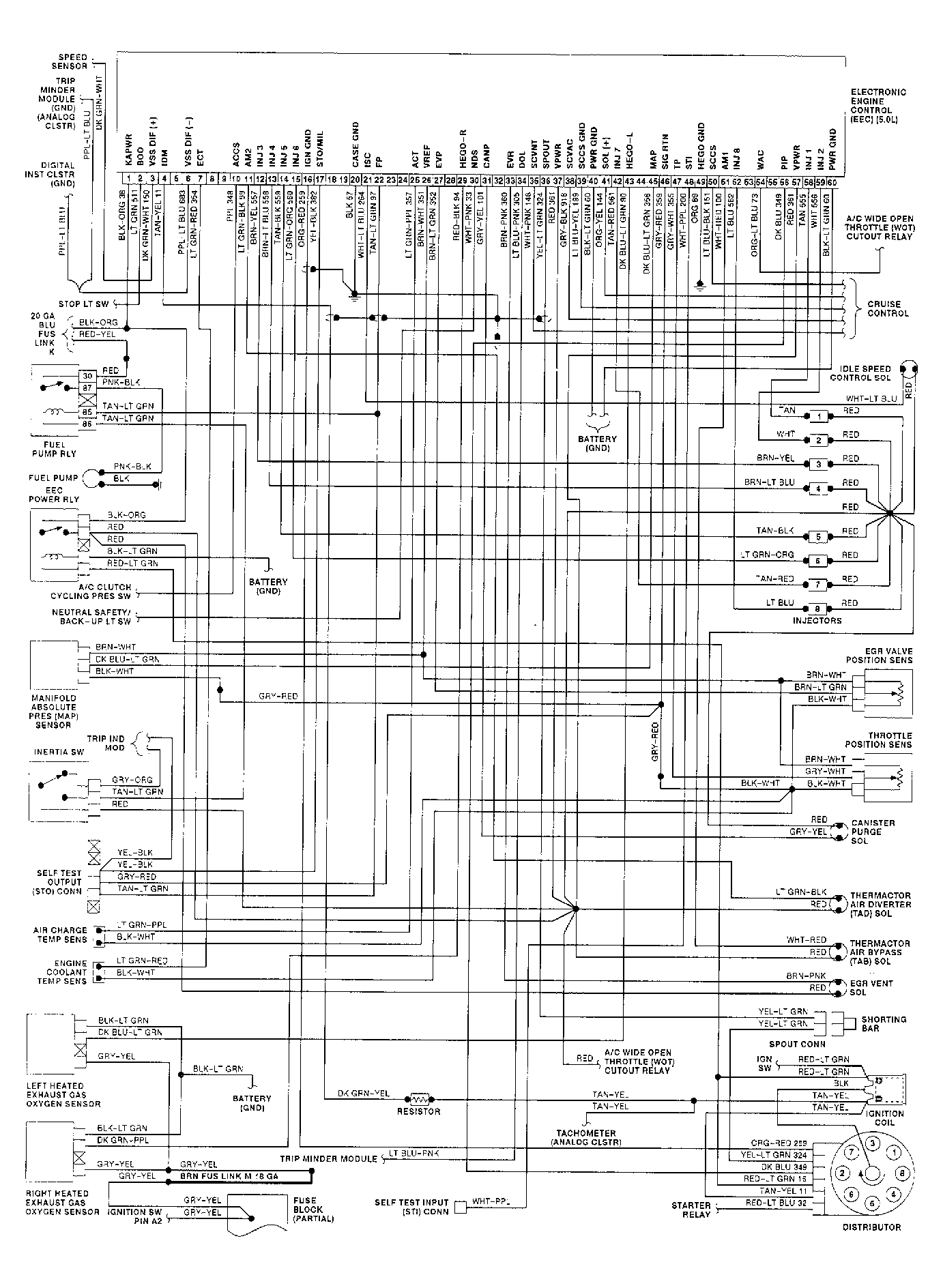

Fig 4: 5.0L Mark VII EEC-IV Wiring Diagram

G91E11357

Fig 5: 5.0L Mustang EEC-IV Wiring Diagram

G91F11358
