Wiring Diagrams

Fig 1: Wiring Diagram (Crown Victoria & Grand Marquis - 1 Of 2)
G93B46020Courtesy of FORD MOTOR CO.
Fig 2: Wiring Diagram (Crown Victoria & Grand Marquis - 2 Of 2)
G93C46021Courtesy of FORD MOTOR CO.

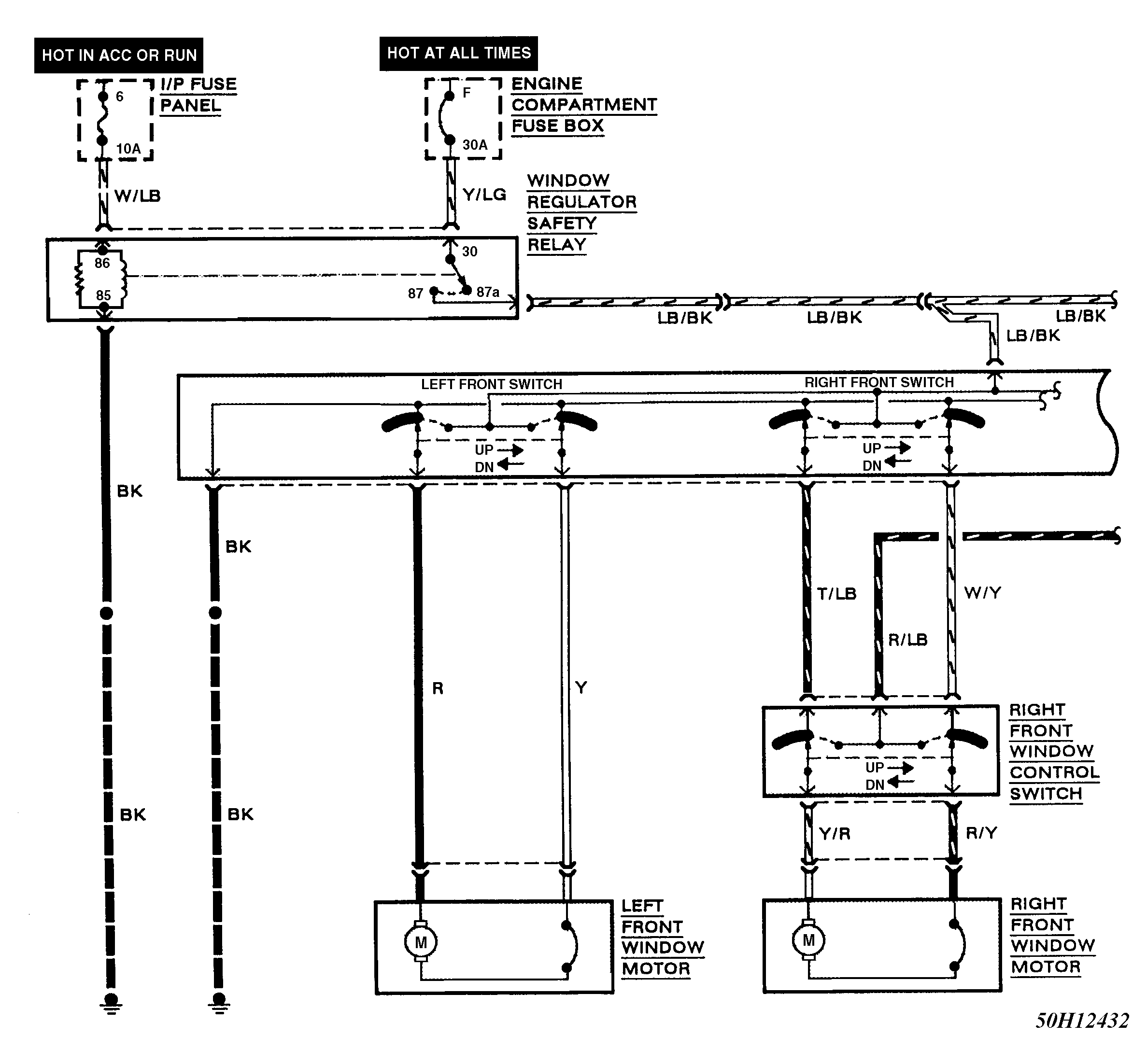

Fig 3: Wiring Diagram (Town Car - 1 Of 2)
G50H12432Courtesy of FORD MOTOR CO.

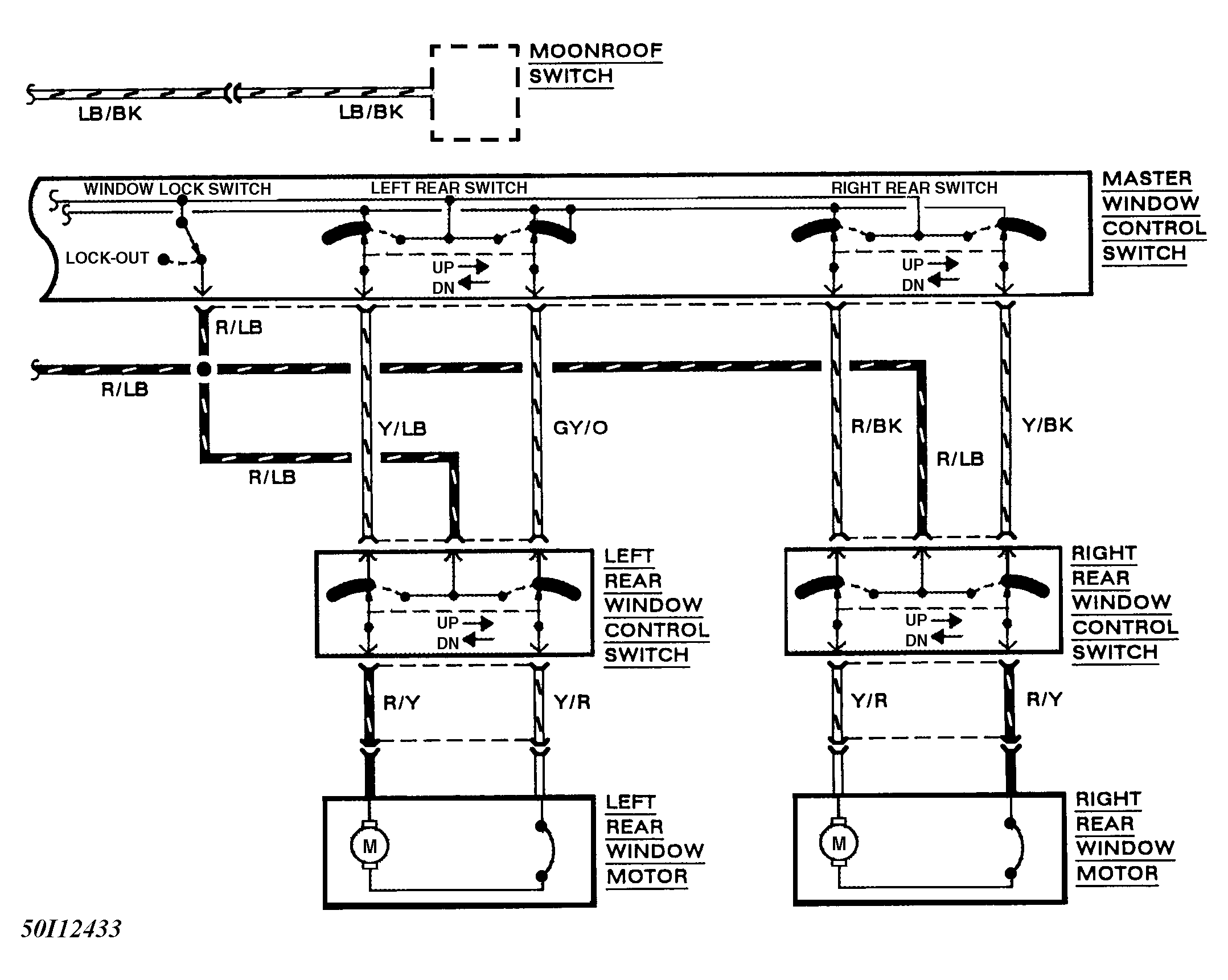

Fig 4: Wiring Diagram (Town Car - 2 Of 2)
G50I12433Courtesy of FORD MOTOR CO.
