Diagnostic Trouble Code Reference Charts (2-Digit)

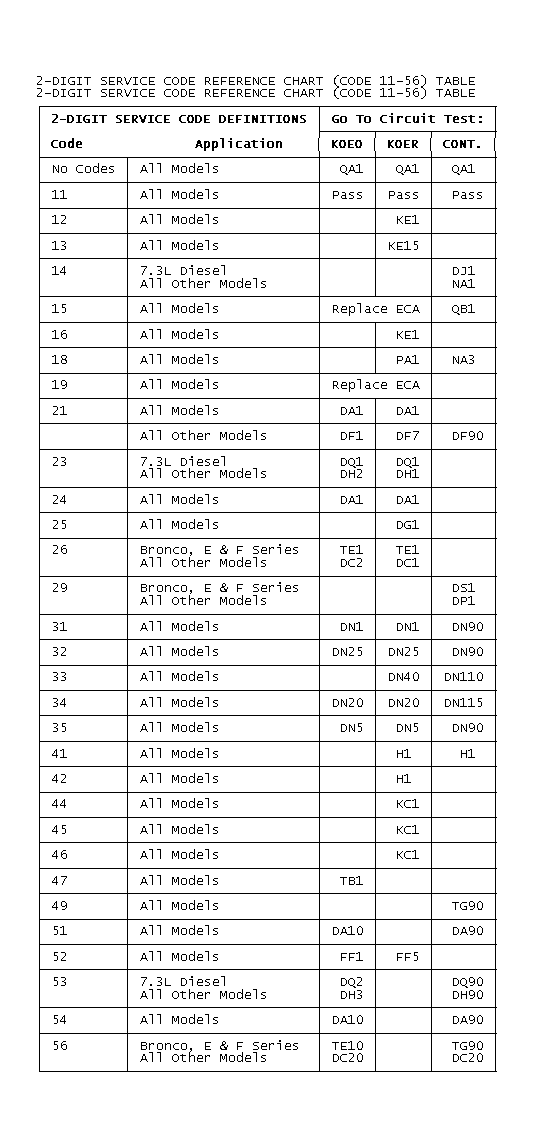

Fig 1: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 11-56)

GB0020935

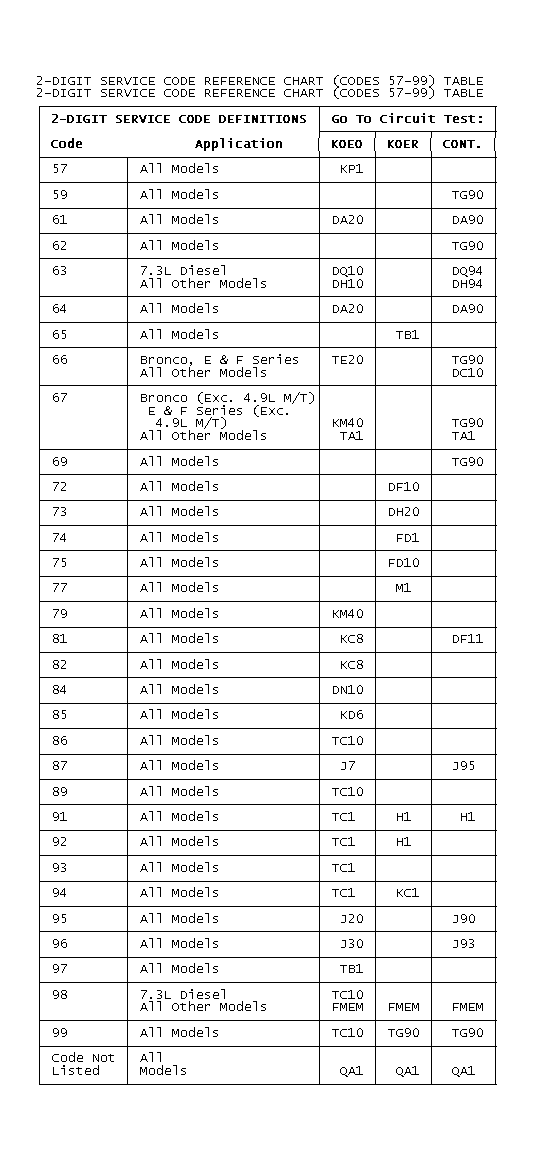

Fig 2: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODES 57-99)

GB0020936
