Section 35 (Keyless Entry System): Testing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Ford RV Cutaway, 1994 Ford Econoline, 1994 Ford Cutaway, 1994 Ford Club Wagon, and 1993 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

To test and service remote keyless entry system, perform the Quick Test first. Perform pinpoint tests only when instructed to by the Quick Test. When pinpoint tests are completed, repeat Quick Test to ensure system is operational.

NOTE: Keep driver's window rolled down when performing pinpoint tests to avoid getting locked out of vehicle.

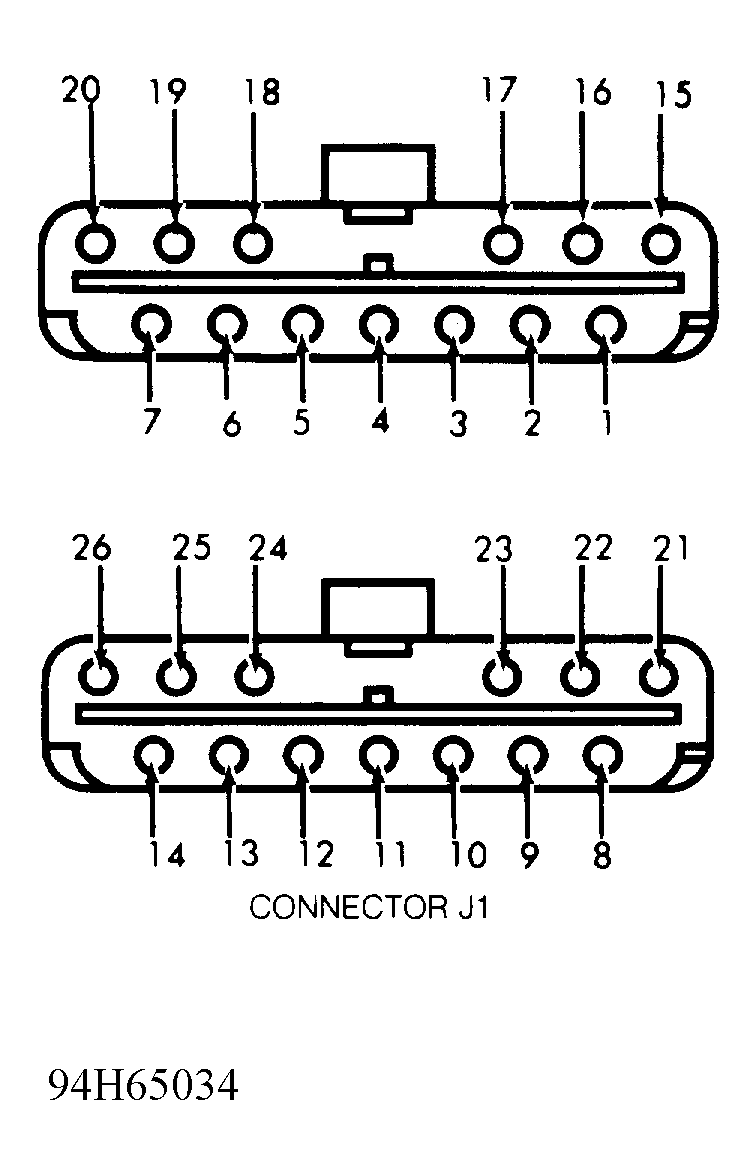

Fig 1: Keyless Entry Control Module Connector Terminals ID

Courtesy of FORD MOTOR CO.

Fig 2: Program Connector J4 Terminals ID

Courtesy of FORD MOTOR CO.
