Explorer 2D Utility, RWD, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Windows
›
Wiring Diagrams
Wiring Diagrams
Fig 1: System Wiring Diagram (Aerostar)
Courtesy of FORD MOTOR CO.

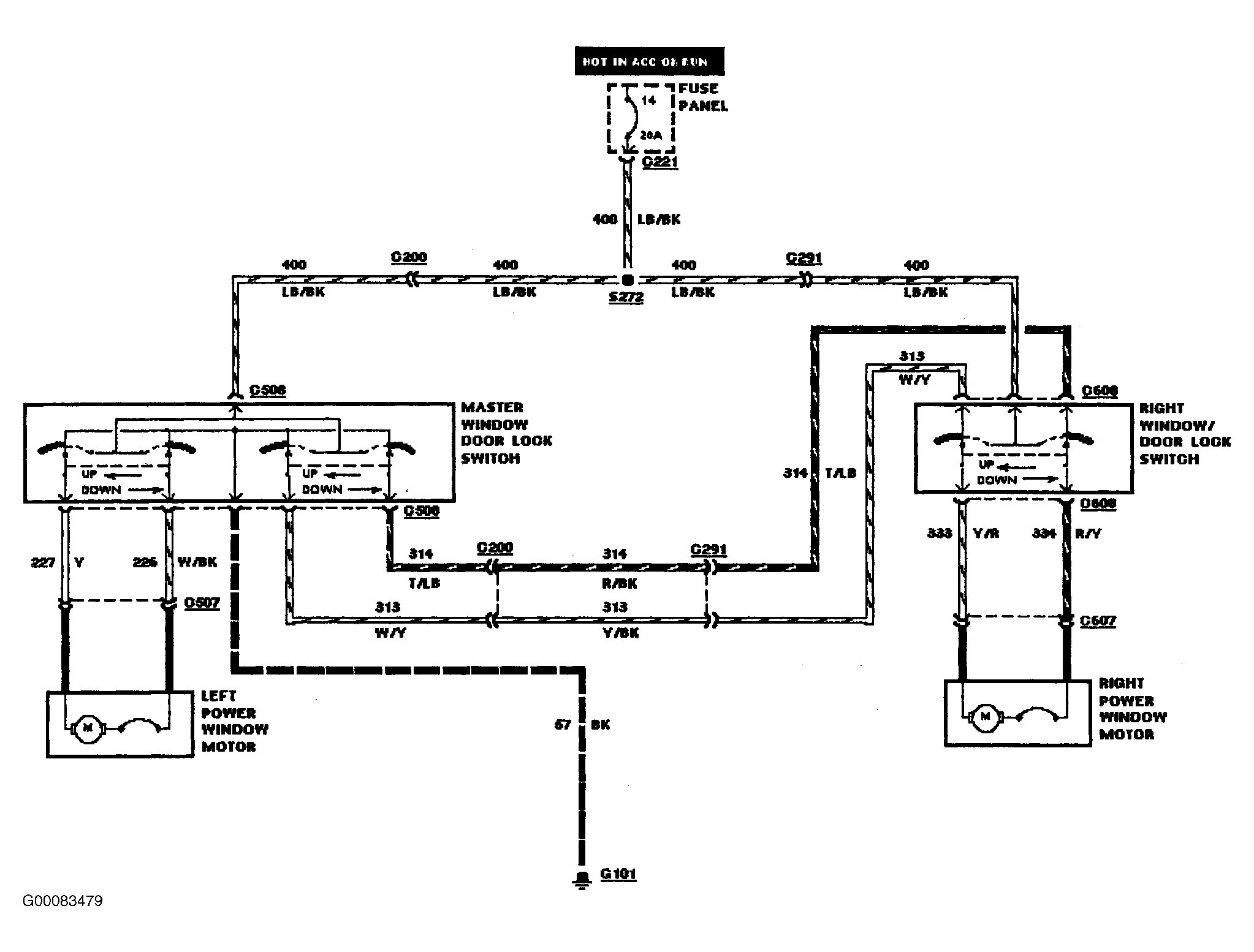

Fig 2: System Wiring Diagram (Explorer 2-Door)
Courtesy of FORD MOTOR CO.
Fig 3: System Wiring Diagram (Explorer 4-Door)
Courtesy of FORD MOTOR CO.
Fig 4: System Wiring Diagram (Ranger)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
