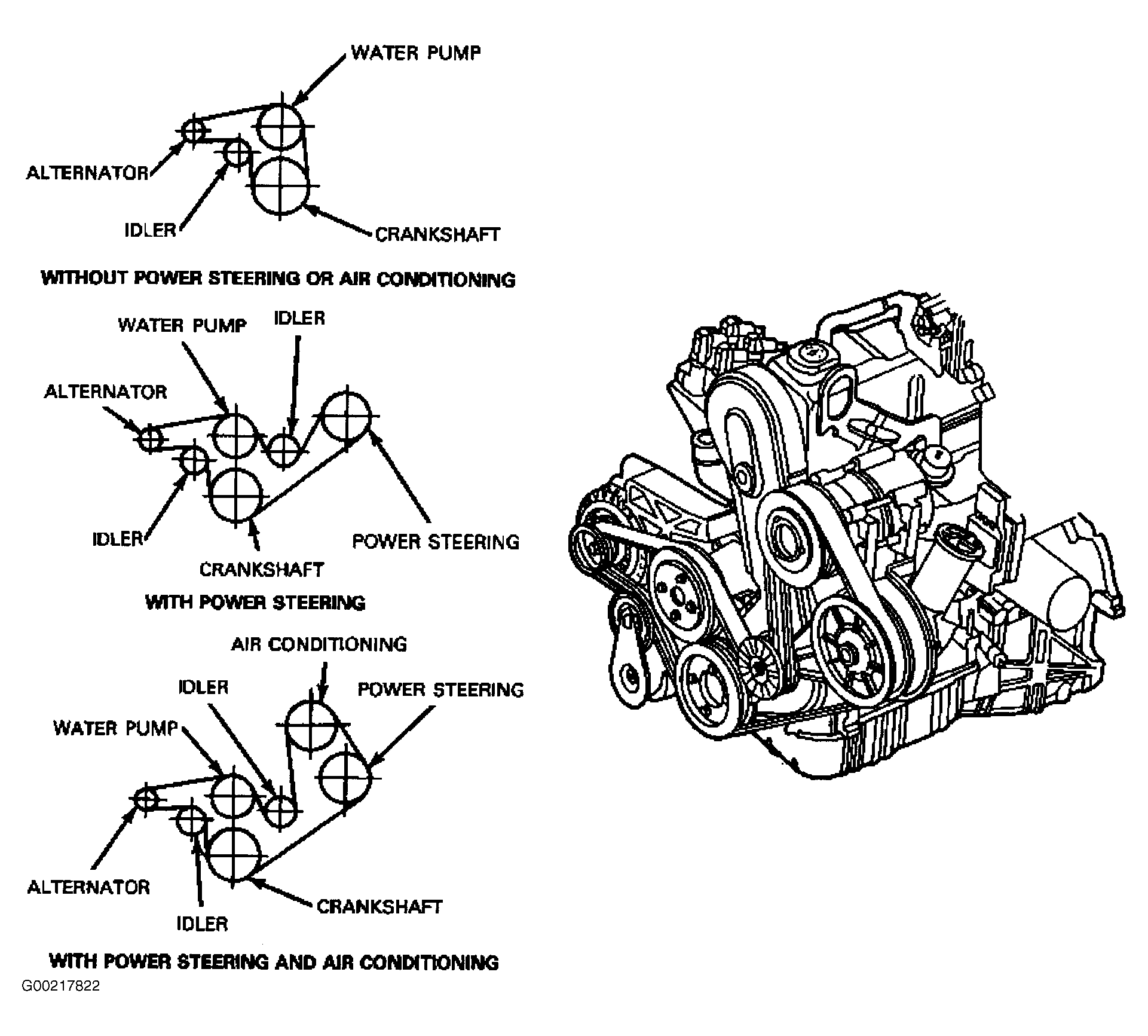

Home › Ford › 1992 › Explorer 2D Utility, RWD, Automatic › Repair and Diagnosis › Engine Performance › Specifications › Engine Controls - Specifications › Quick-Service › Service Intervals & Specifications › Drive Belt Routing (2.3L)
