Valve Body: Notes

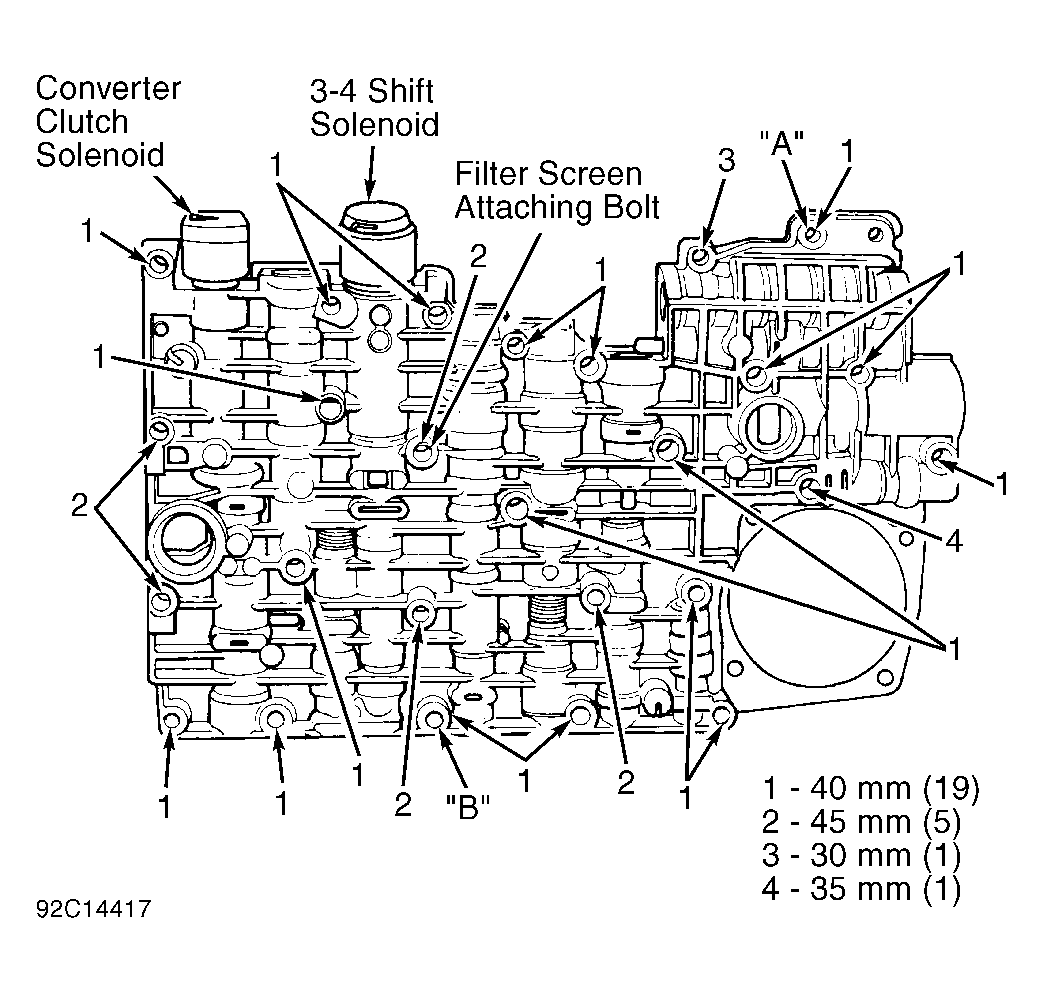

NOTE: Note length and position of valve body bolts for reassembly reference. See Figure.
