RM7: Check Remote Control Mirror Switch

Access the remote control mirror switch. Check for voltages at the remote control mirror switch as shown. See Fig 1 . Do all the switch positions check out OK? If yes, see RM8: Check Wire Power  . If no, replace the remote control mirror switch. See REMOTE MIRROR SWITCH  under REMOVAL & INSTALLATION.

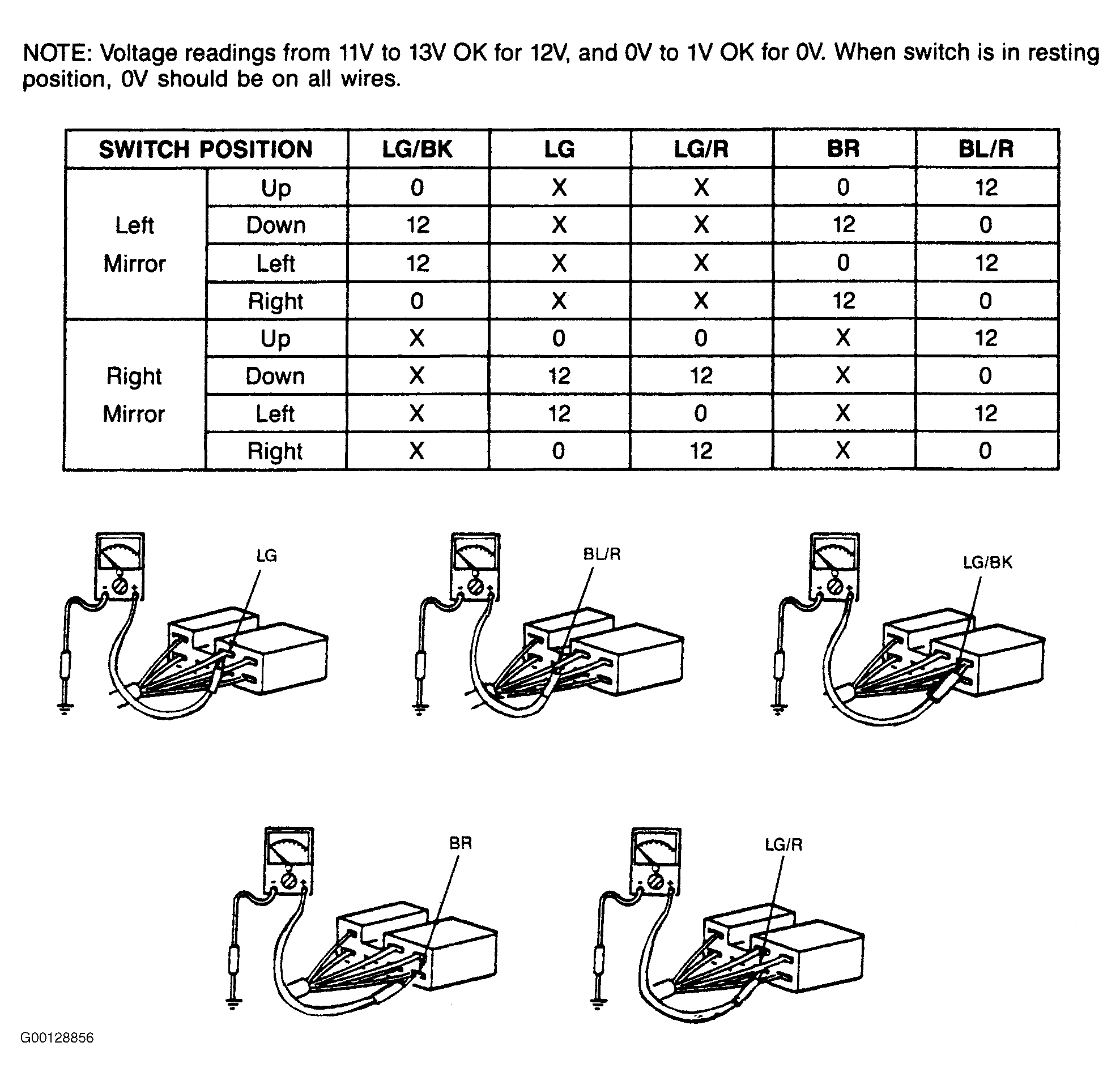

Fig 1: Identifying Remote Control Mirror Switch Terminals & Switch Positions
G00128856Courtesy of FORD MOTOR CO.
