Function Selector Cable

  1. Position function selector lever in defrost position. Remove left sound deadening panel. Release cable from cable housing brace on left side of heater case. See Fig 2 .
  2. With cable end on door lever pin, push door lever down to extreme stop. Secure cable on cable housing brace. Install left sound deadening panel.
    NOTE: If excess air bleeds from panel outlets after adjustment, perform step 3).
  3. Disconnect function selector cable from cable clip on heater assembly. Adjust mode cam on heater assembly to panel position. Adjust control assembly lever to panel position. Connect function selector cable to cable clip.
    Fig 1: Mounting Control Cables
    G104233Courtesy of FORD MOTOR CO.

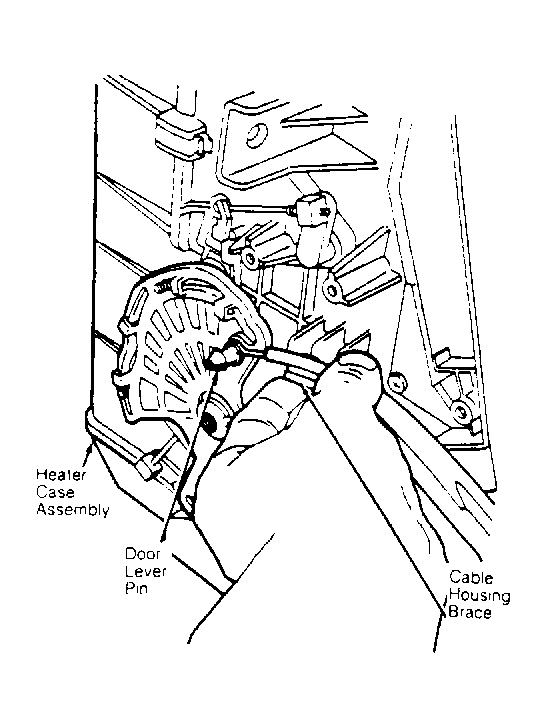

    Fig 2: Adjusting Function Selector Cable
    G91C05353Courtesy of FORD MOTOR CO.
