Control Panel Assembly

  1. Disconnect negative battery cable. Remove bezel cover from control panel assembly face.
  2. Remove 4 attaching screws from control panel assembly housing. Remove left and right sound deadening panels. Disconnect air inlet selector cable at fresh/recirculated air door assembly.
  3. Disconnect blower switch electrical connector and control panel assembly illumination electrical connector. See Fig 1 . Disconnect temperature control cable from temperature-blend door assembly at right side of heater case.
  4. Remove control panel and control cables as an assembly. To install, reverse removal procedure. Ensure cable routing is correct. Check control panel operation.

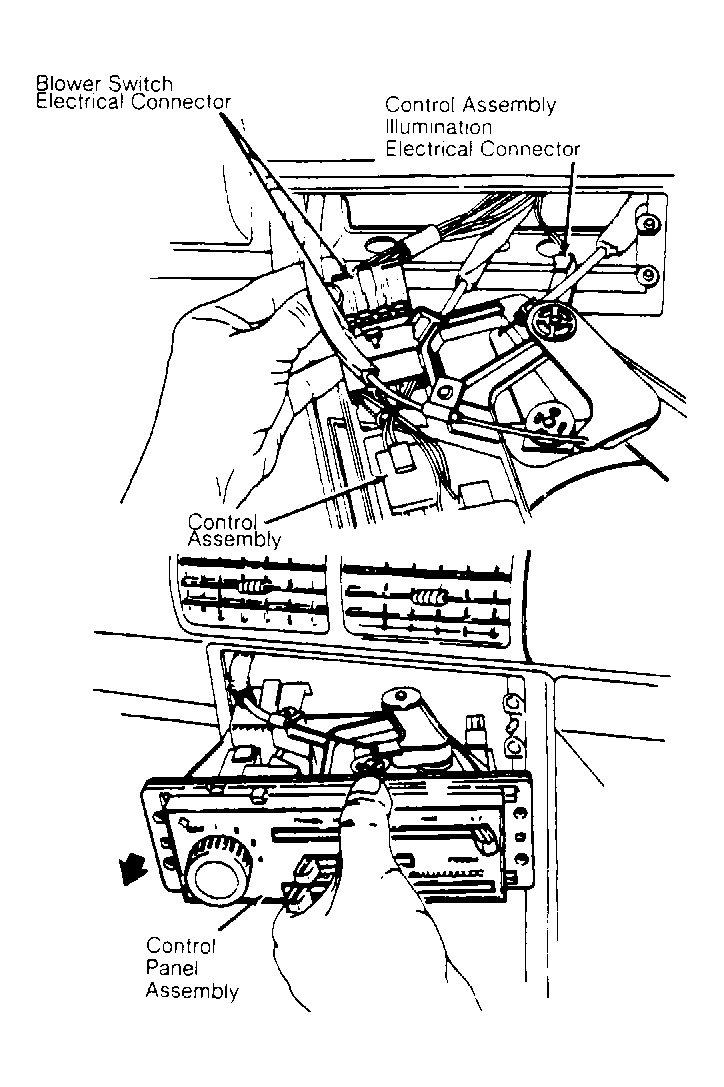

    Fig 1: Removing Control Panel Assembly
    G91J05356Courtesy of FORD MOTOR CO.
