Power Steering Pump: Installation

1. If removed, install drive pulley and hub. Install 3 pump mounting bracket bolts and tighten to 27-34 ft. lbs. (37-46 N.m).
2. Connect pressure and return hydraulic hoses. Tighten to specification. Install drive belt. Fill system with fluid. Follow START-UP PROCEDURE  under LUBRICATION.

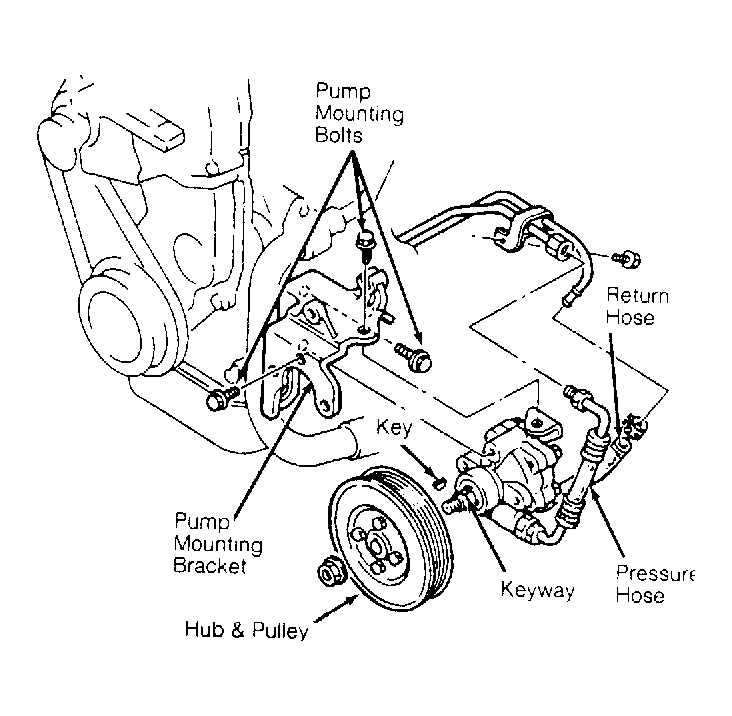

Fig 1: Exploded View of Power Steering Pump Mounting

Courtesy of FORD MOTOR CO.
