Wiring Diagrams

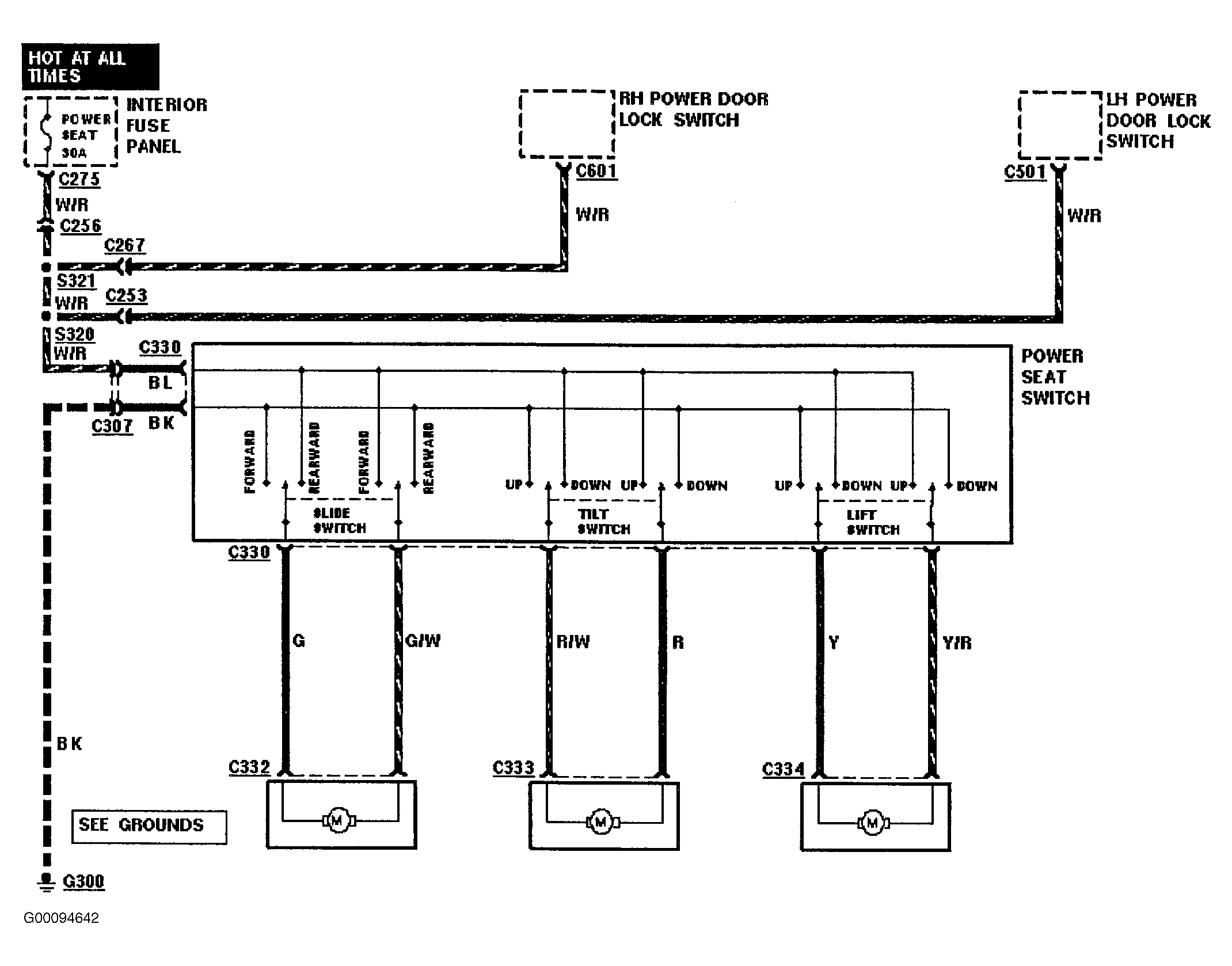

Fig 1: Power Seat Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
