Diagnostic Trouble Code Reference Charts (3-Digit): Notes

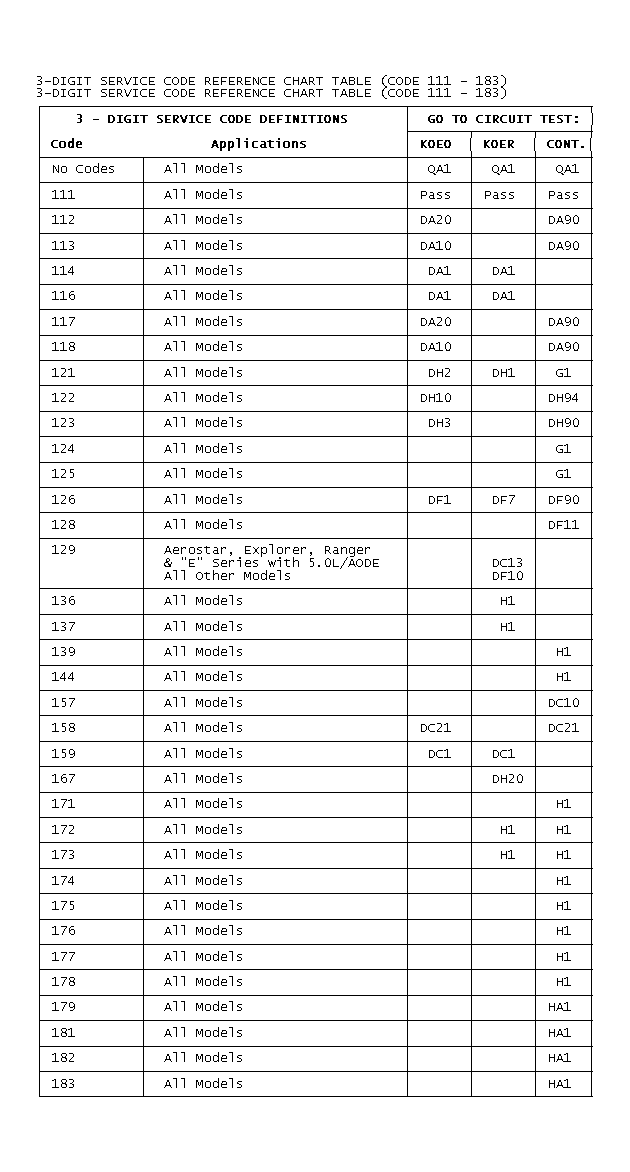

Fig 1: DIAGNOSTIC TROUBLE CODE CHART (CODE 111 - 183)

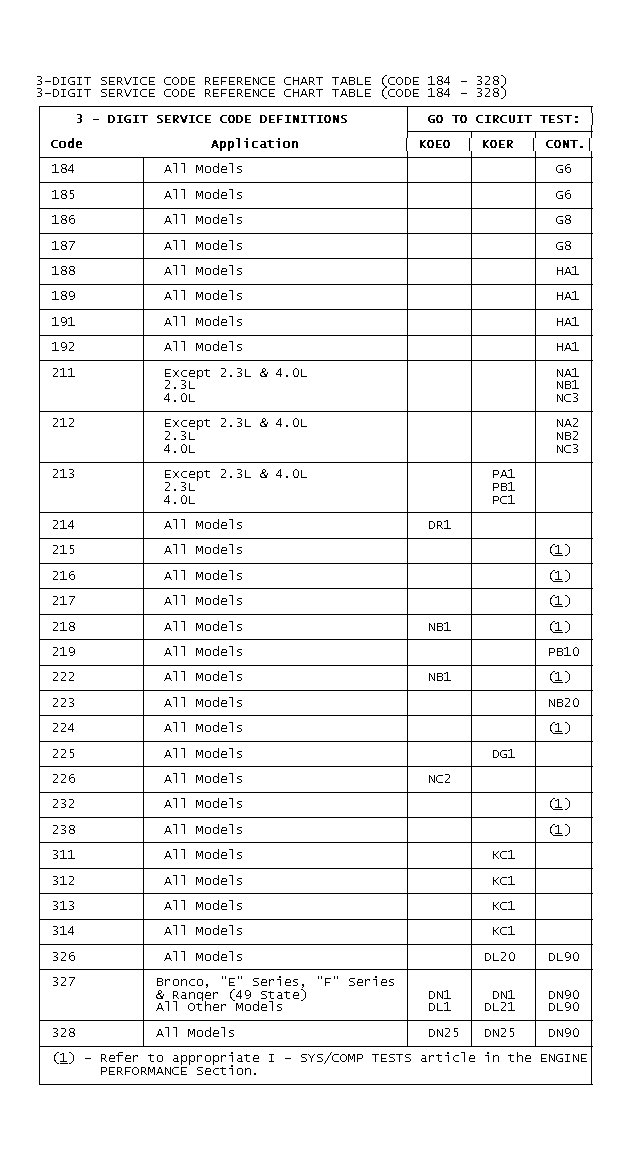

Fig 2: DIAGNOSTIC TROUBLE CODE CHART (CODE 184 - 328)

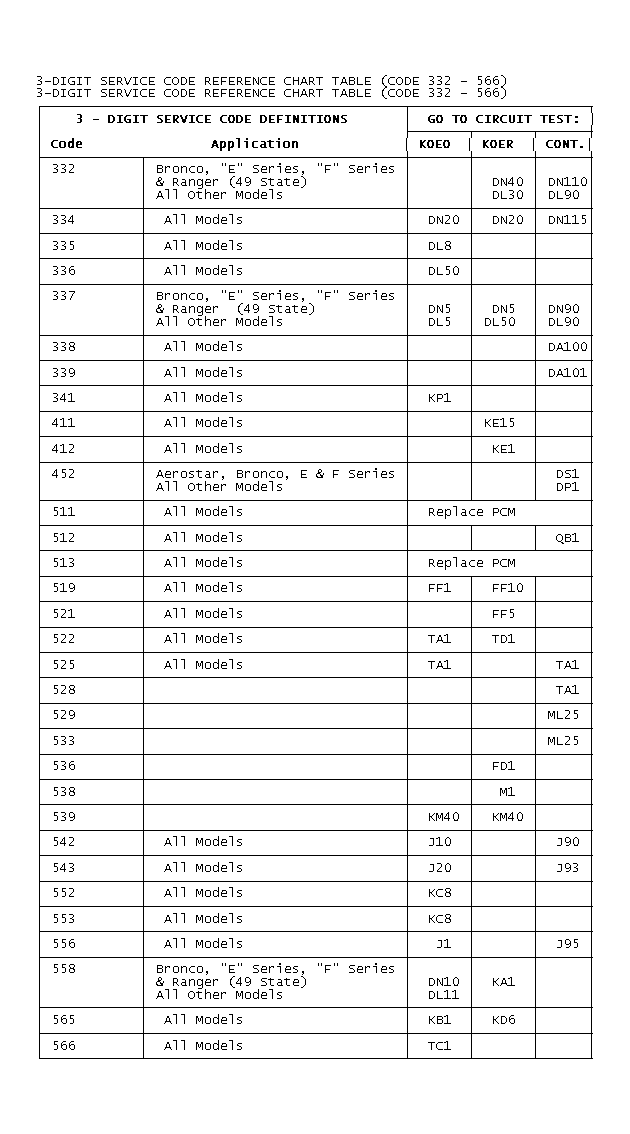

Fig 3: DIAGNOSTIC TROUBLE CODE CHART (CODE 332 - 566)

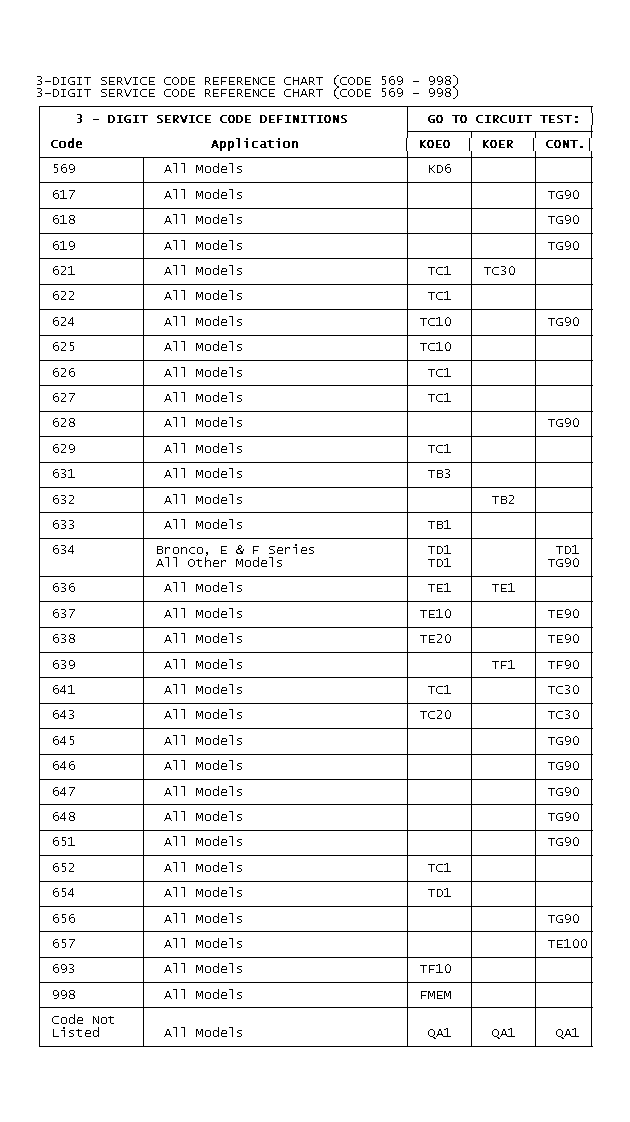

Fig 4: DIAGNOSTIC TROUBLE CODE CHART (CODE 569 - 998)
