Engine Controls - Tests W/Codes - EEC-IV
›
Wiring Diagrams
›
Mark VIII
Mark VIII

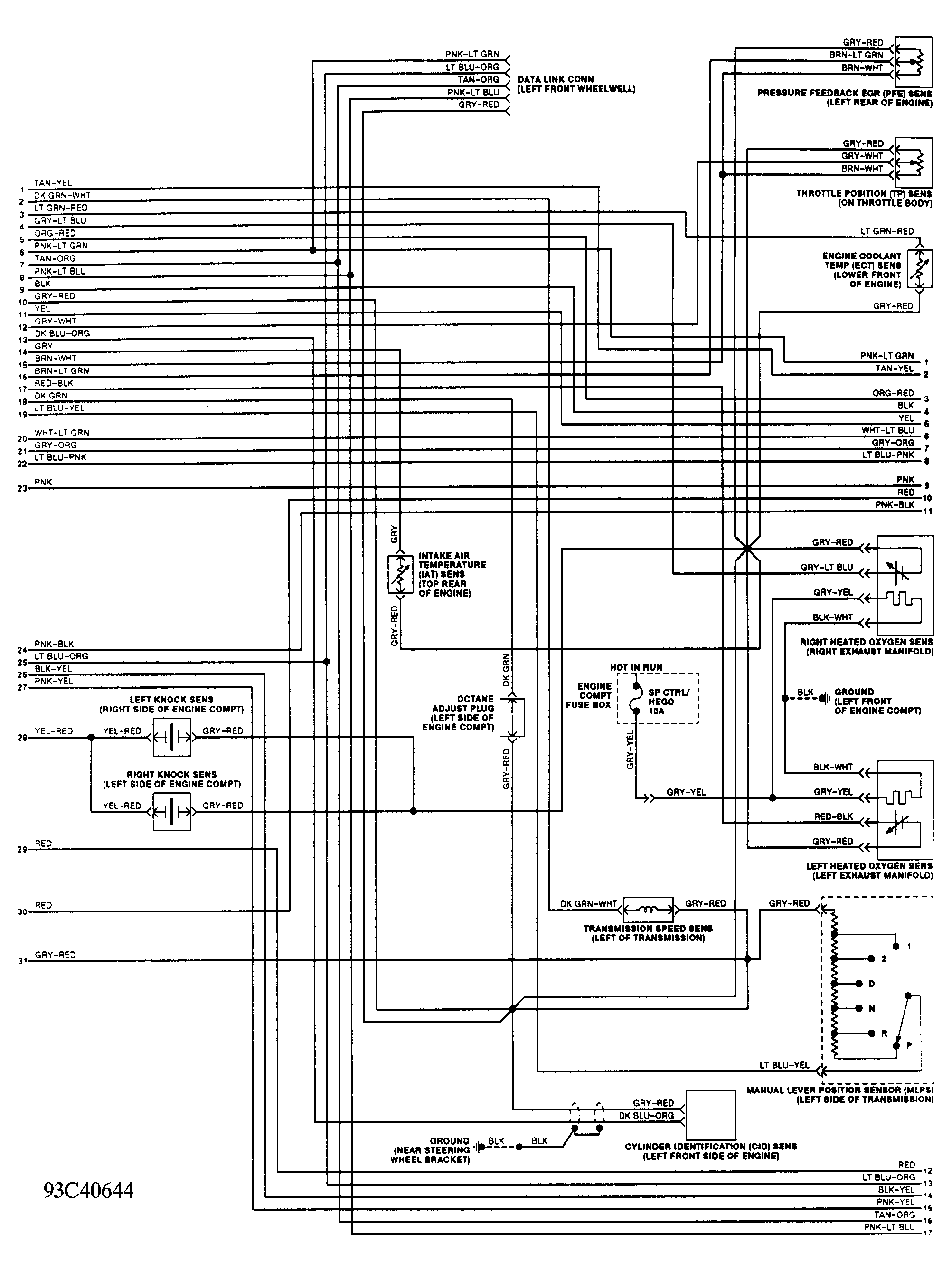

Fig 1: EEC-IV Wiring Diagram (Mark VIII 4.6L - 1 of 3)

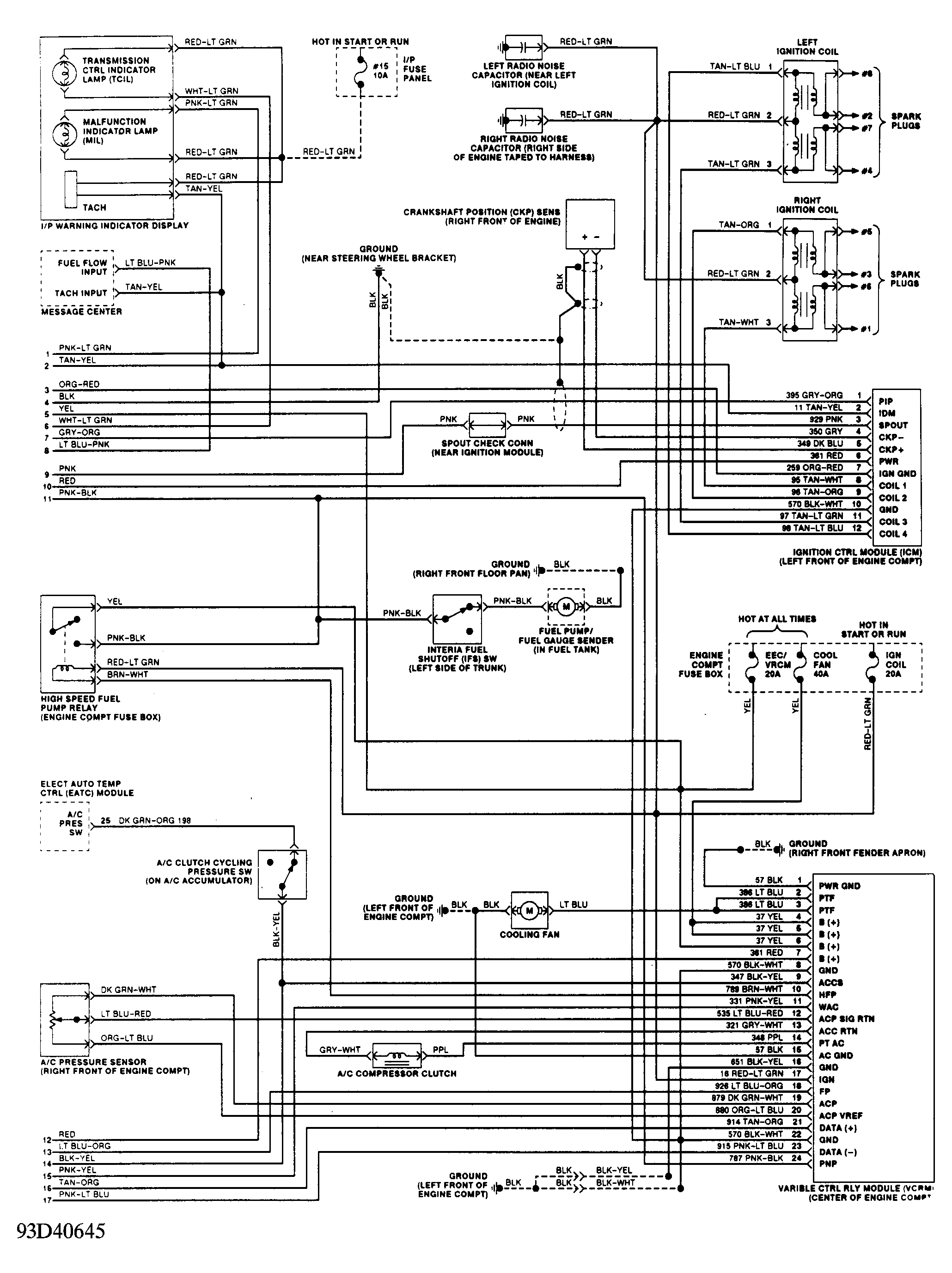

Fig 2: EEC-IV Wiring Diagram (Mark VIII 4.6L - 2 of 3)

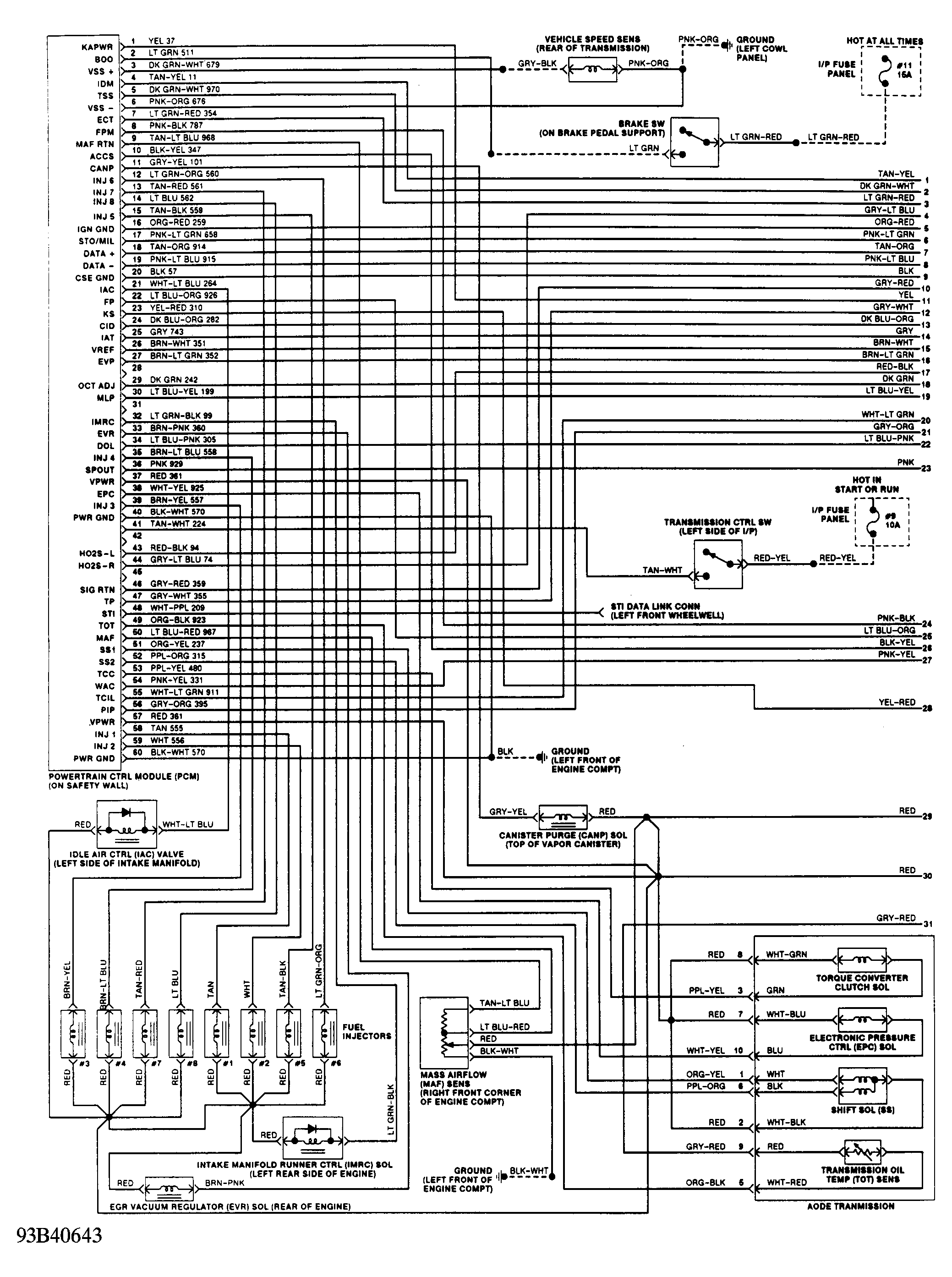

Fig 3: EEC-IV Wiring Diagram (Mark VIII 4.6L - 3 of 3)
