Wiring Diagrams

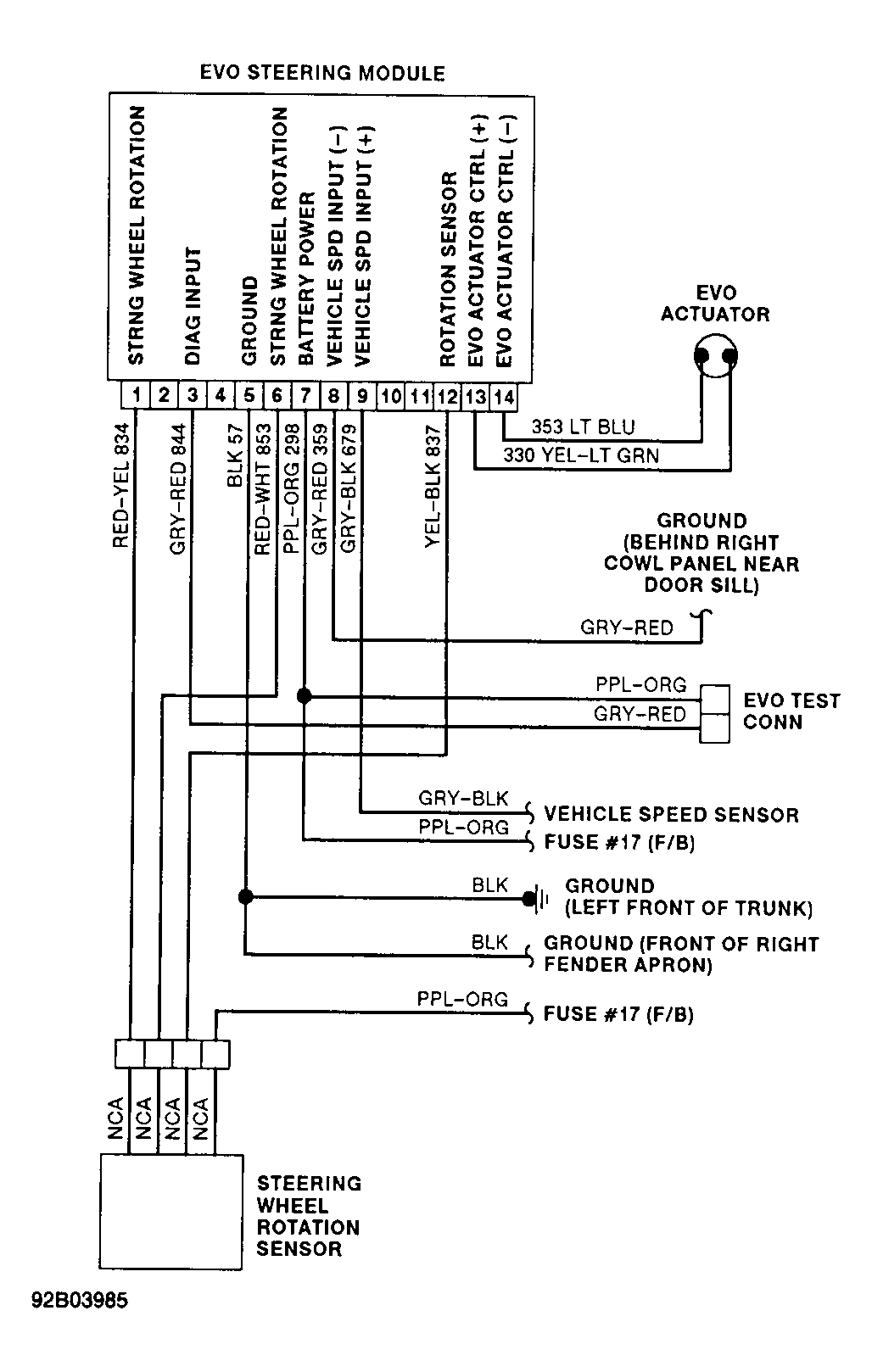

Fig 1: EVO System Wiring Diagram (Crown Victoria & Grand Marquis) W/ Air Suspension
G92B03985

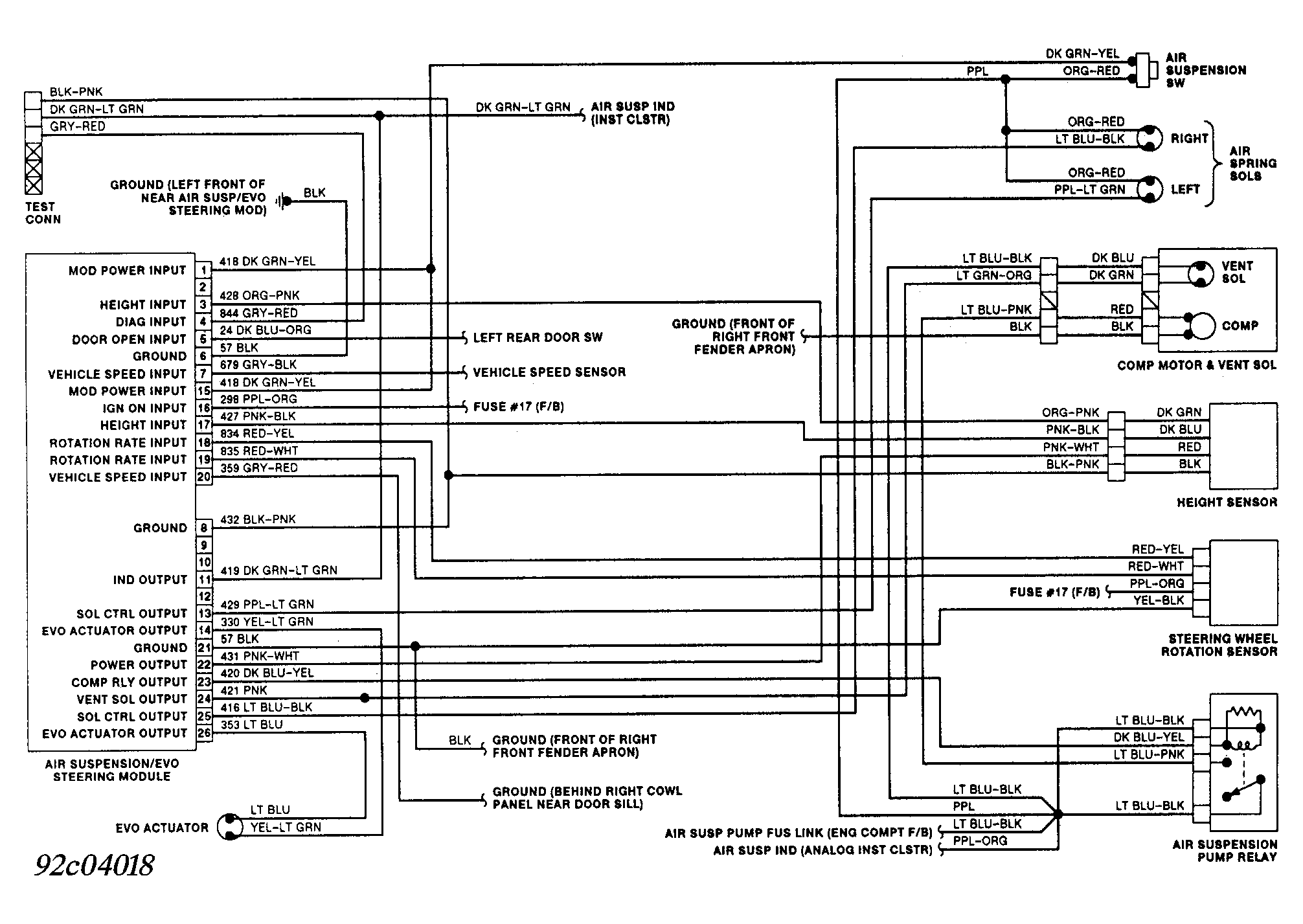

Fig 2: EVO System Wiring Diagram (Crown Victoria & Grand Marquis) W/ Air Suspension
G92C04018

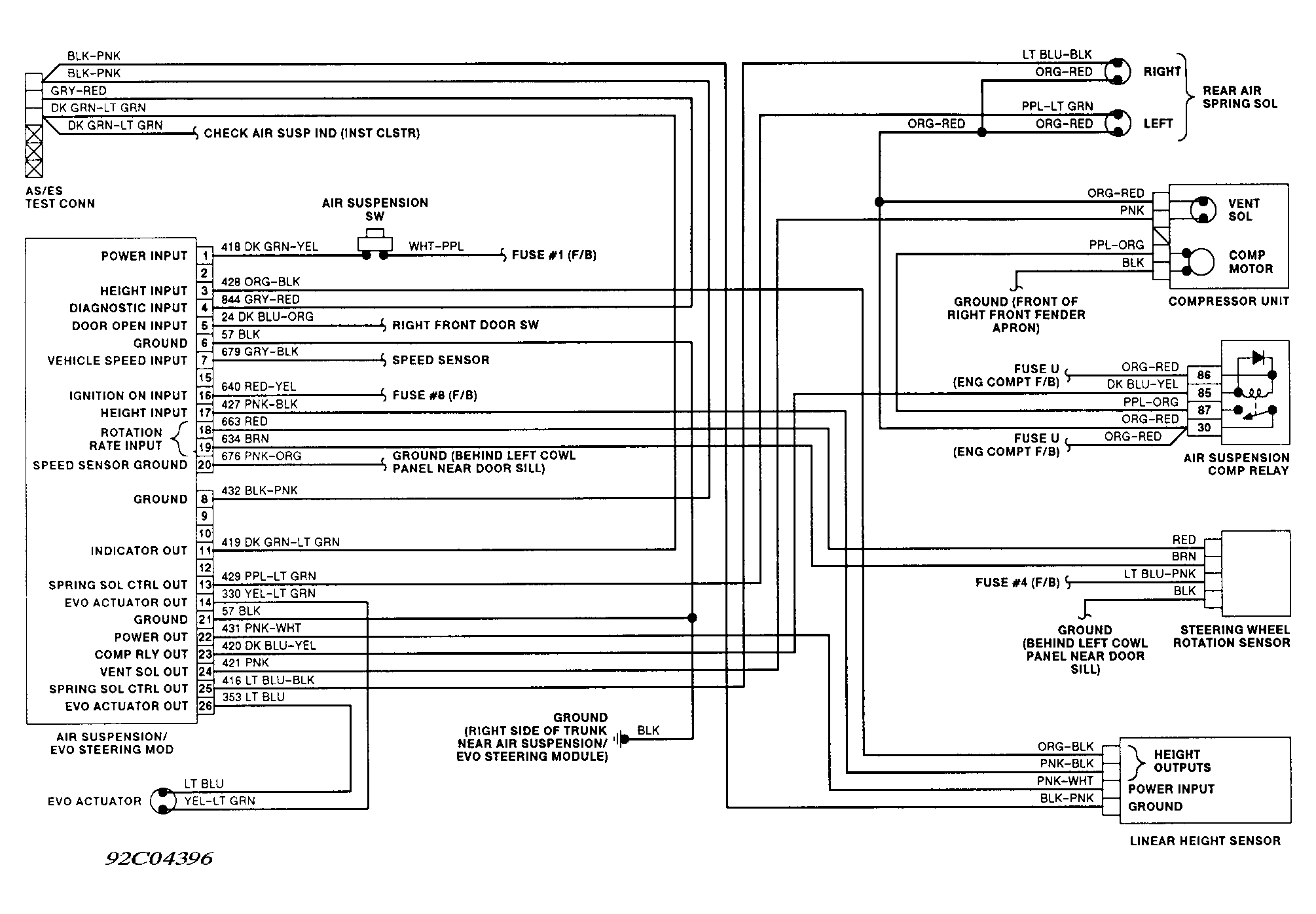

Fig 3: EVO System Wiring Diagram (Town Car)
G92C04396

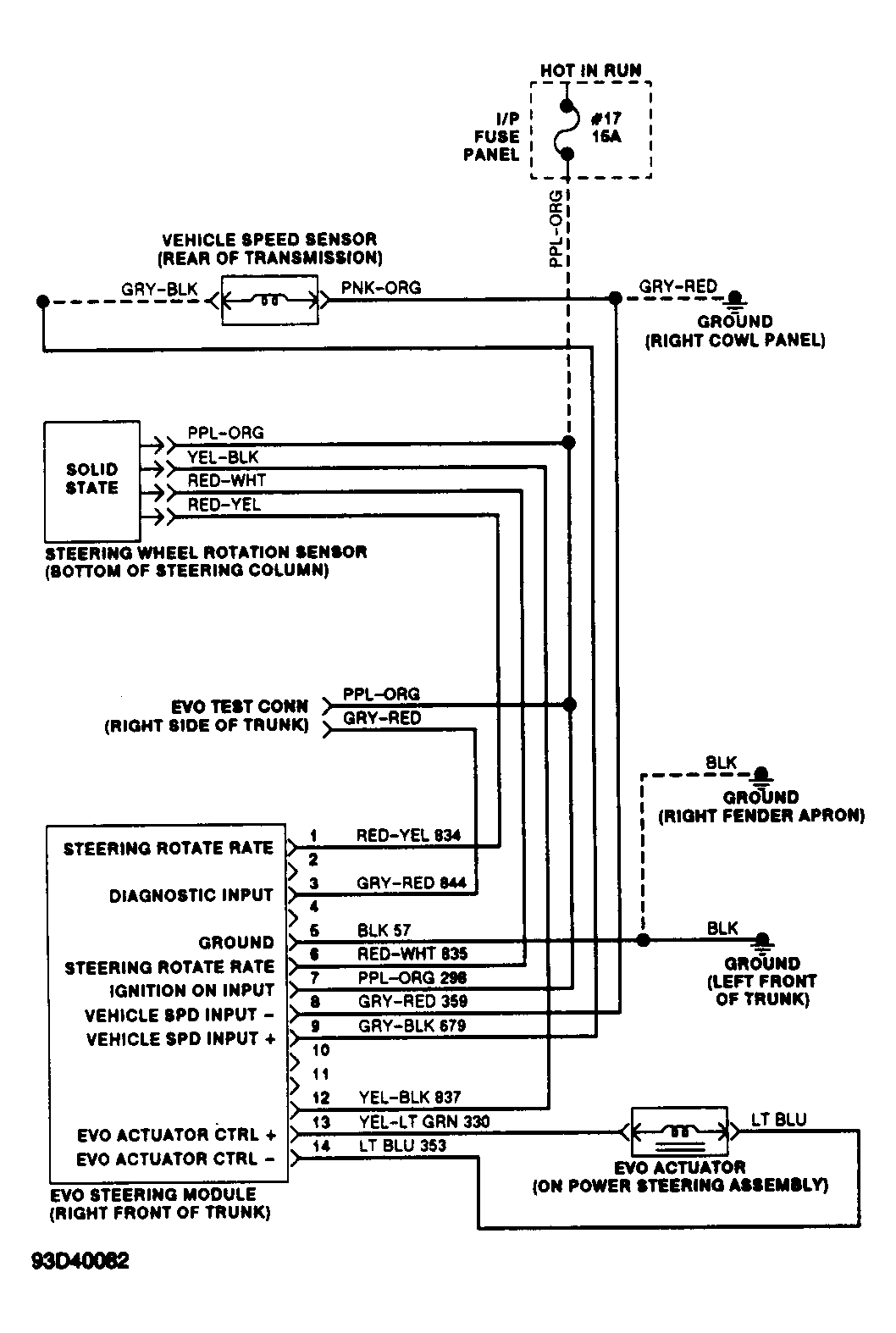

Fig 4: EVO System Wiring Diagram (Crown Victoria & Grand Marquis) W/ Air Suspension
G93D40082
