3-Digit Service Code-To-Test Menu (Codes 111-222)

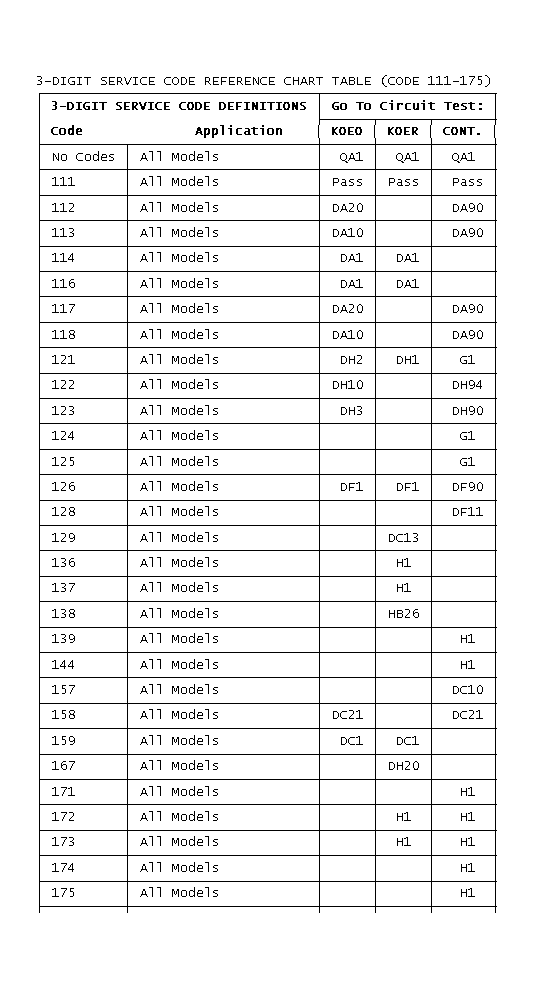

Fig 1: 3-DIGIT SERVICE CODE REFERENCE CHART TABLE (CODE 111-175)

GB0021767

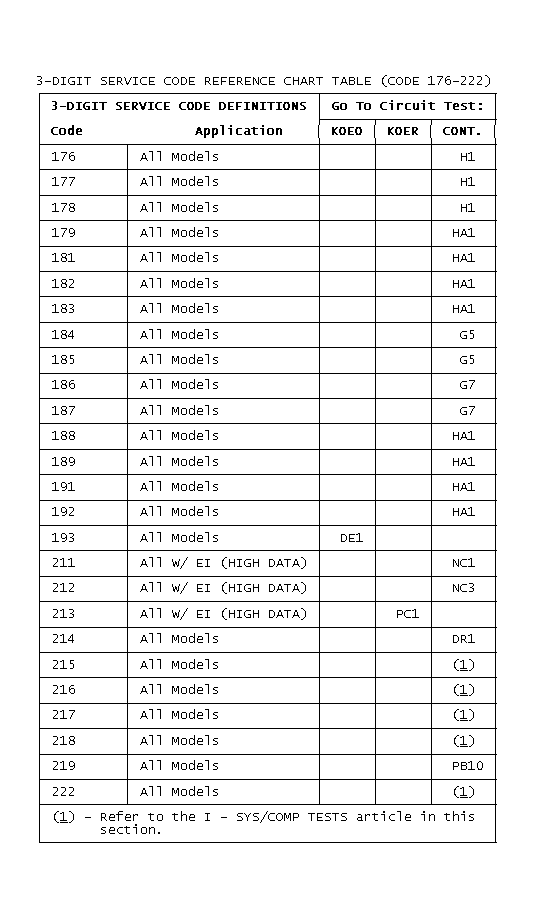

Fig 2: 3-DIGIT SERVICE CODE REFERENCE CHART TABLE (CODE 176-222)

GB0021768
