Engine Control System Wiring Diagrams: 1.9L

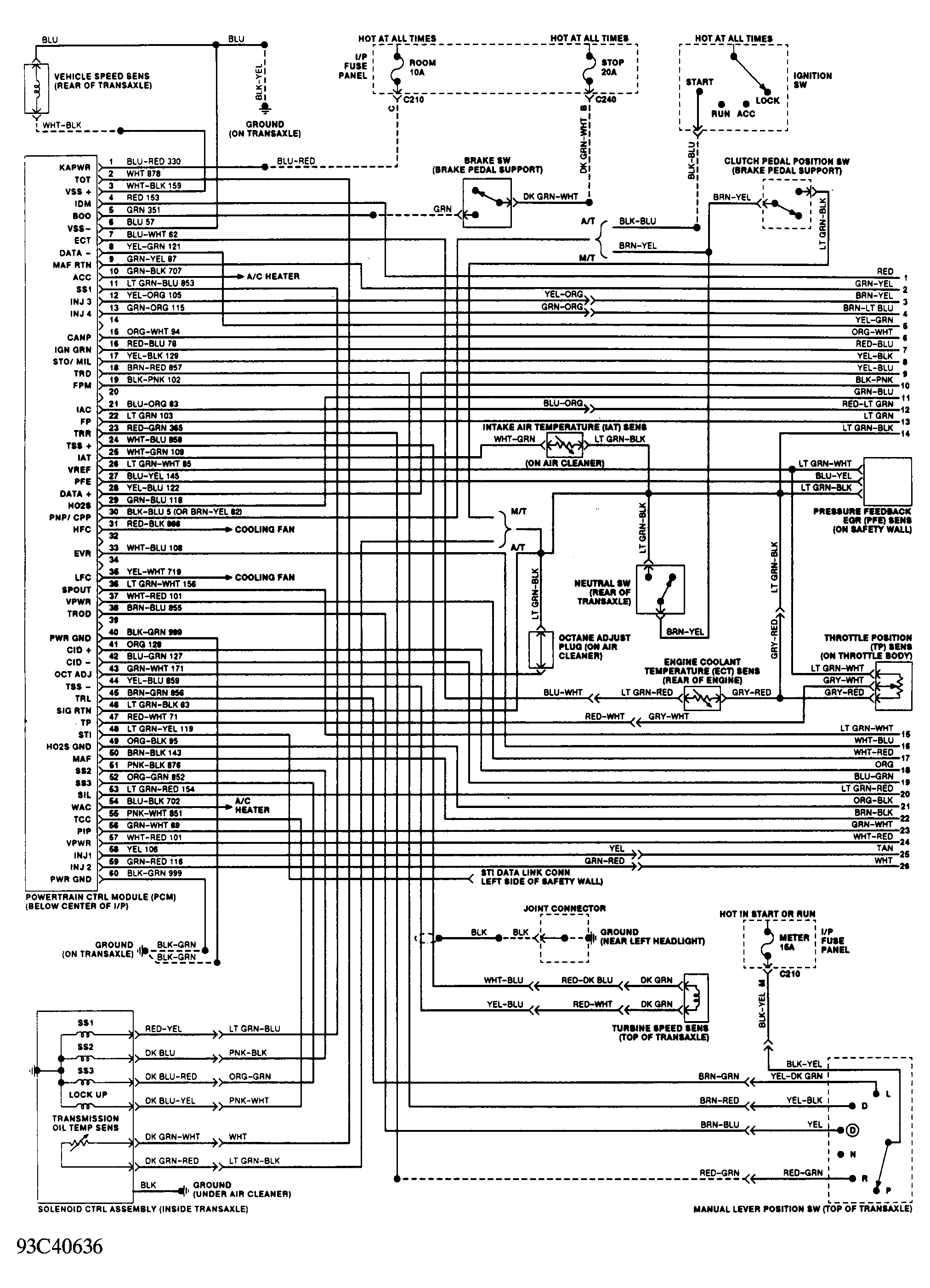

Fig 1: EEC-IV Wiring Diagram (Escort/Tracer 1.9L - 1 of 2)

G93C40636

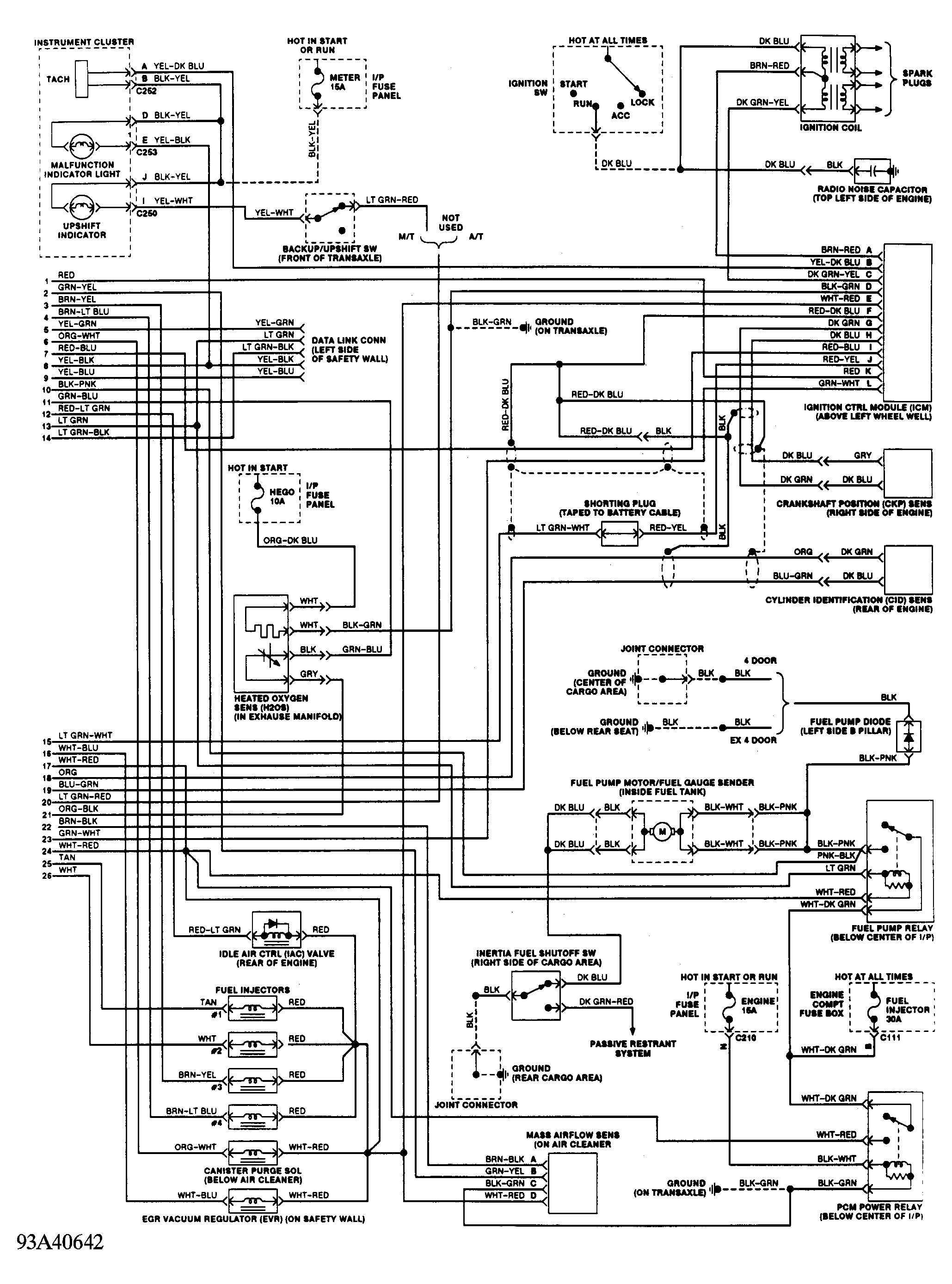

Fig 2: EEC-IV Wiring Diagram (Escort/Tracer 1.9L - 2 of 2)

G93A40642
