3-Digit Service Code-To-Test Menu (Codes 551-998)

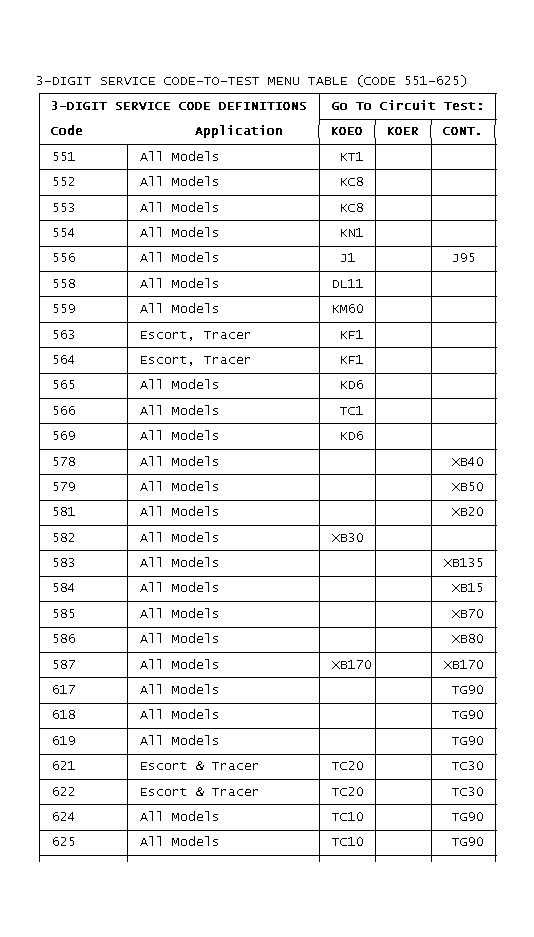

Fig 1: 3-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODE 551-625)

GB0021770

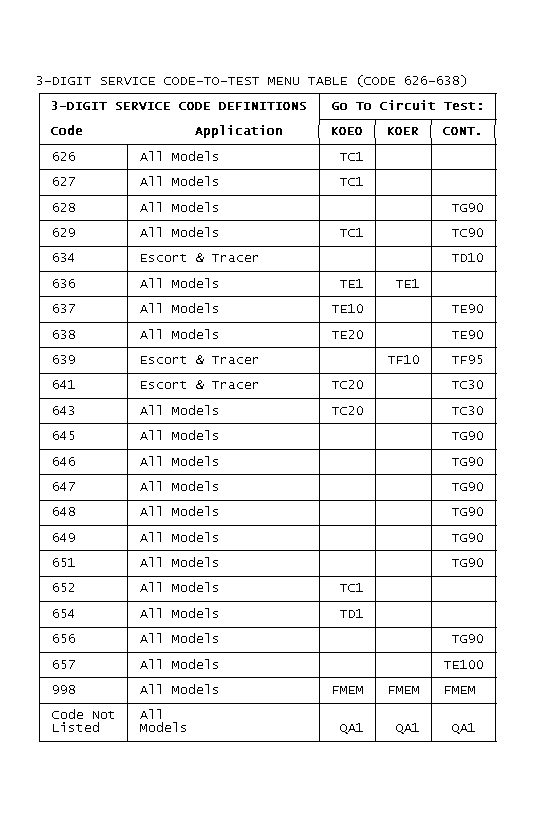

Fig 2: 3-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODE 626-638)

GB0021771
