1.8L W/ Automatic Transaxle

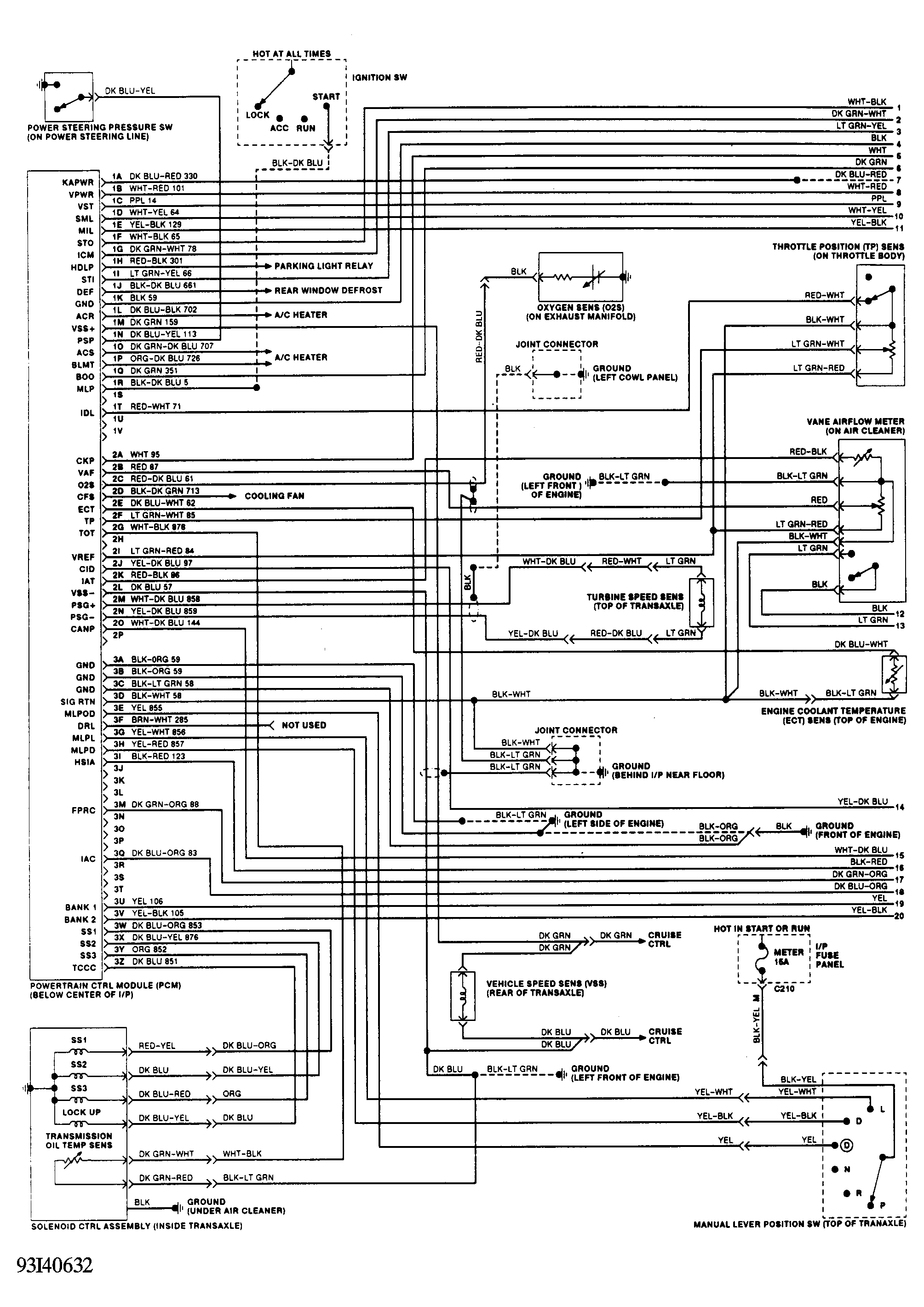

Fig 1: EEC Wiring Diagram (Escort/Tracer 1.8L A/T - 1 of 2)

G93I40632

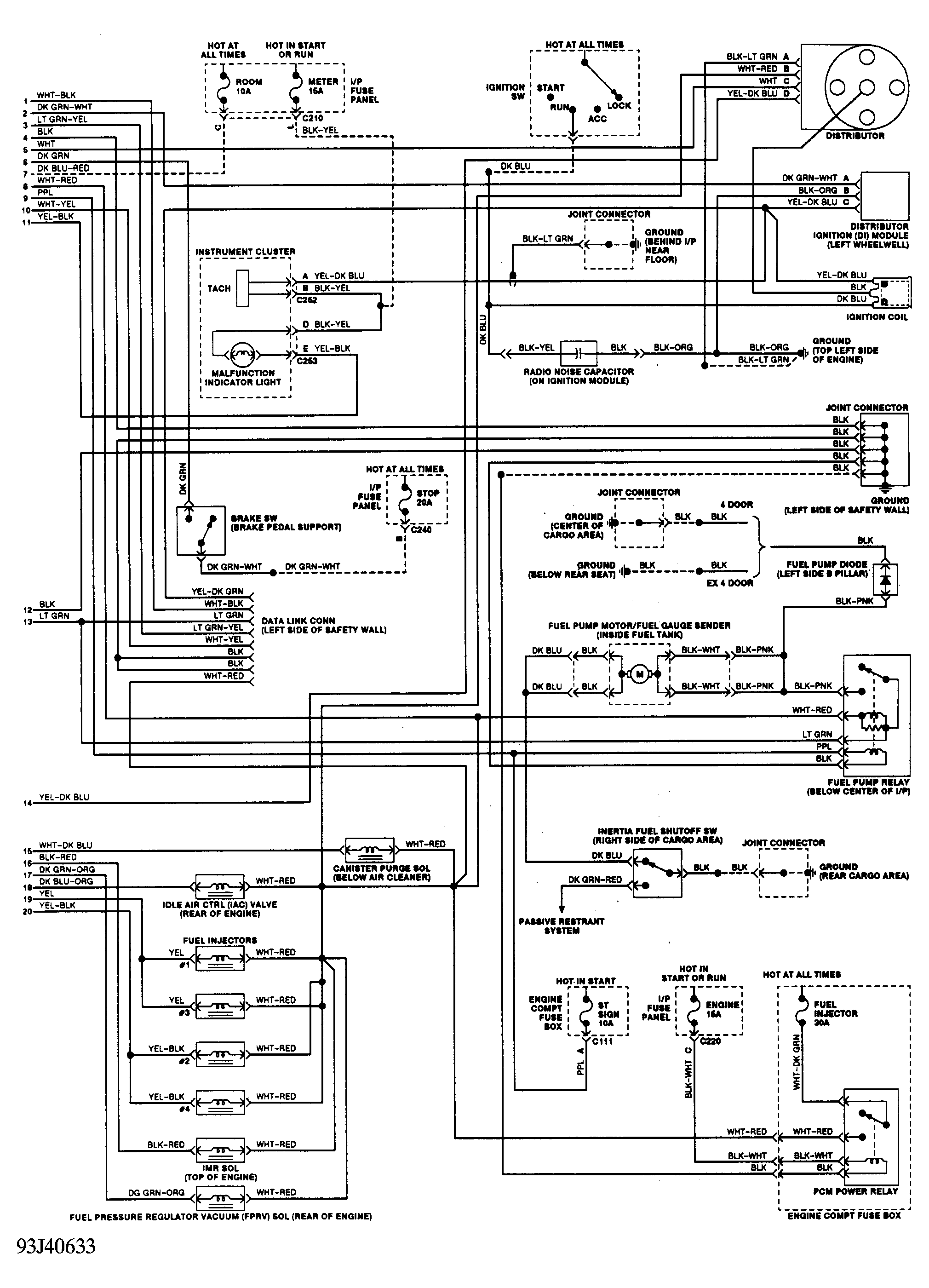

Fig 2: EEC Wiring Diagram (Escort/Tracer 1.8L A/T - 2 of 2)

G93J40633
