Wiring Diagrams

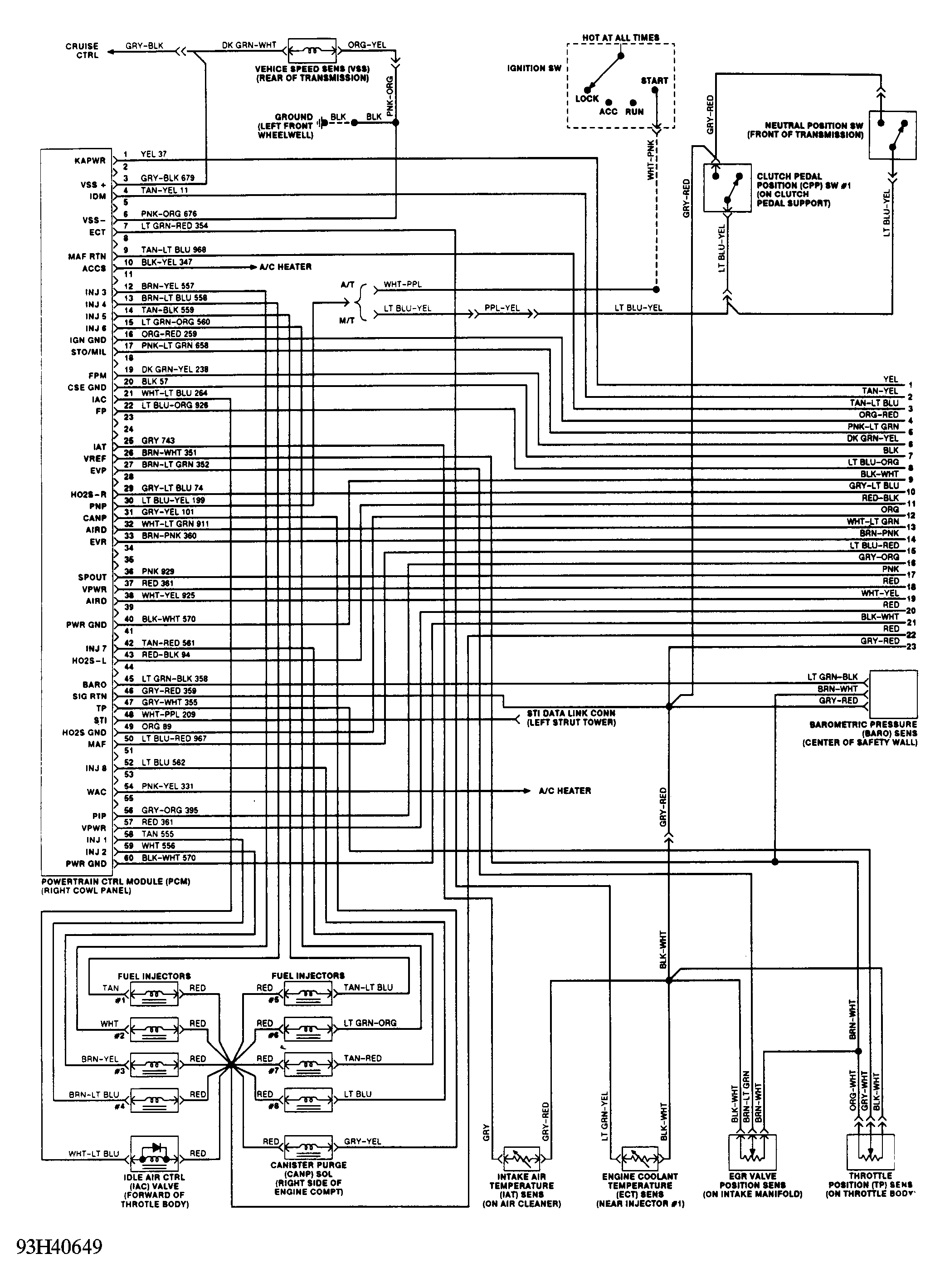

Fig 1: EEC-IV Wiring Diagram (Mustang 5.0L - 1 Of 2)

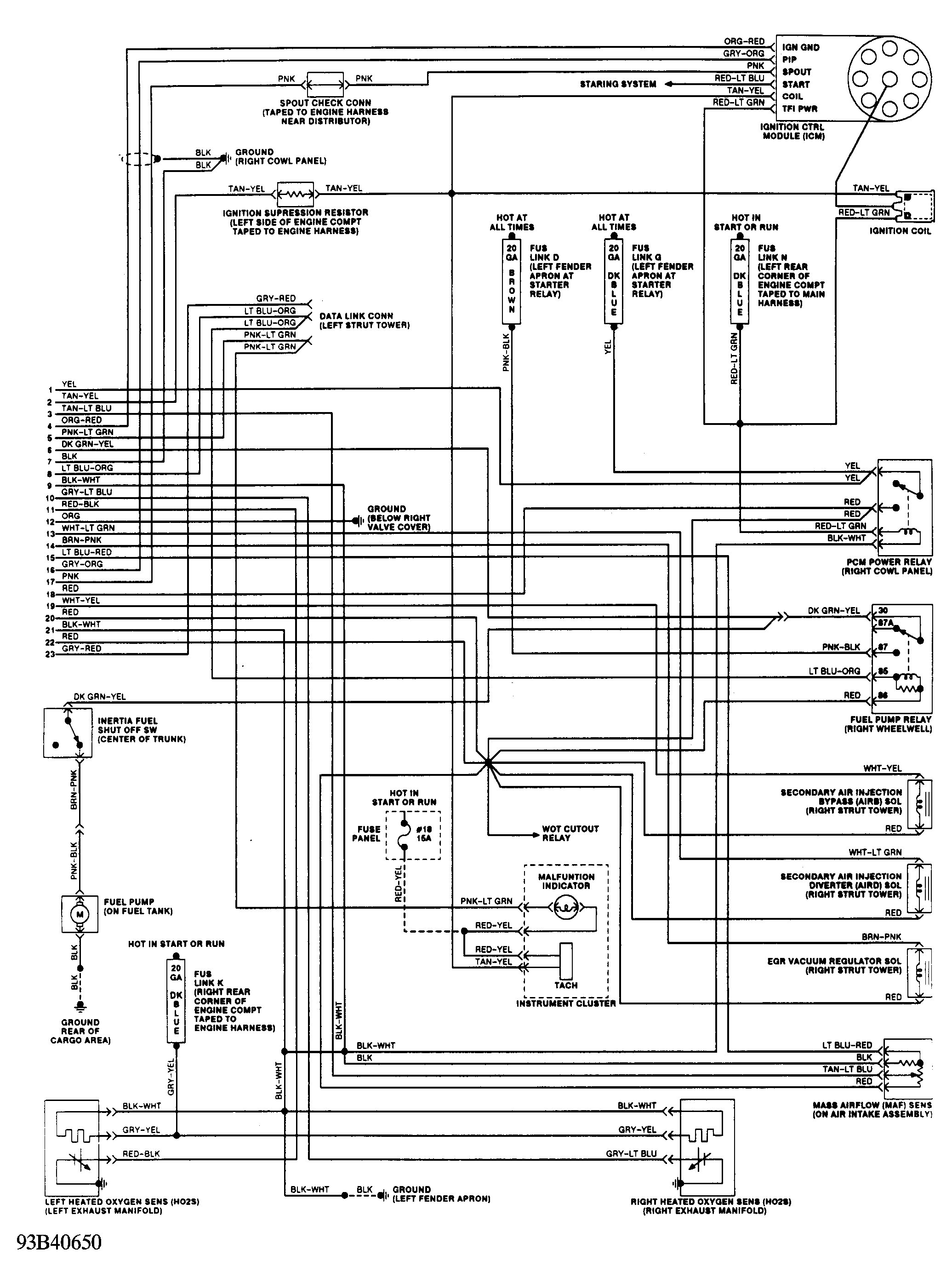

Fig 2: EEC-IV Wiring Diagram (Mustang 5.0L - 2 Of 2)
