Ford
›
1993
›
Probe Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Windows
›
Wiring Diagrams
Wiring Diagrams

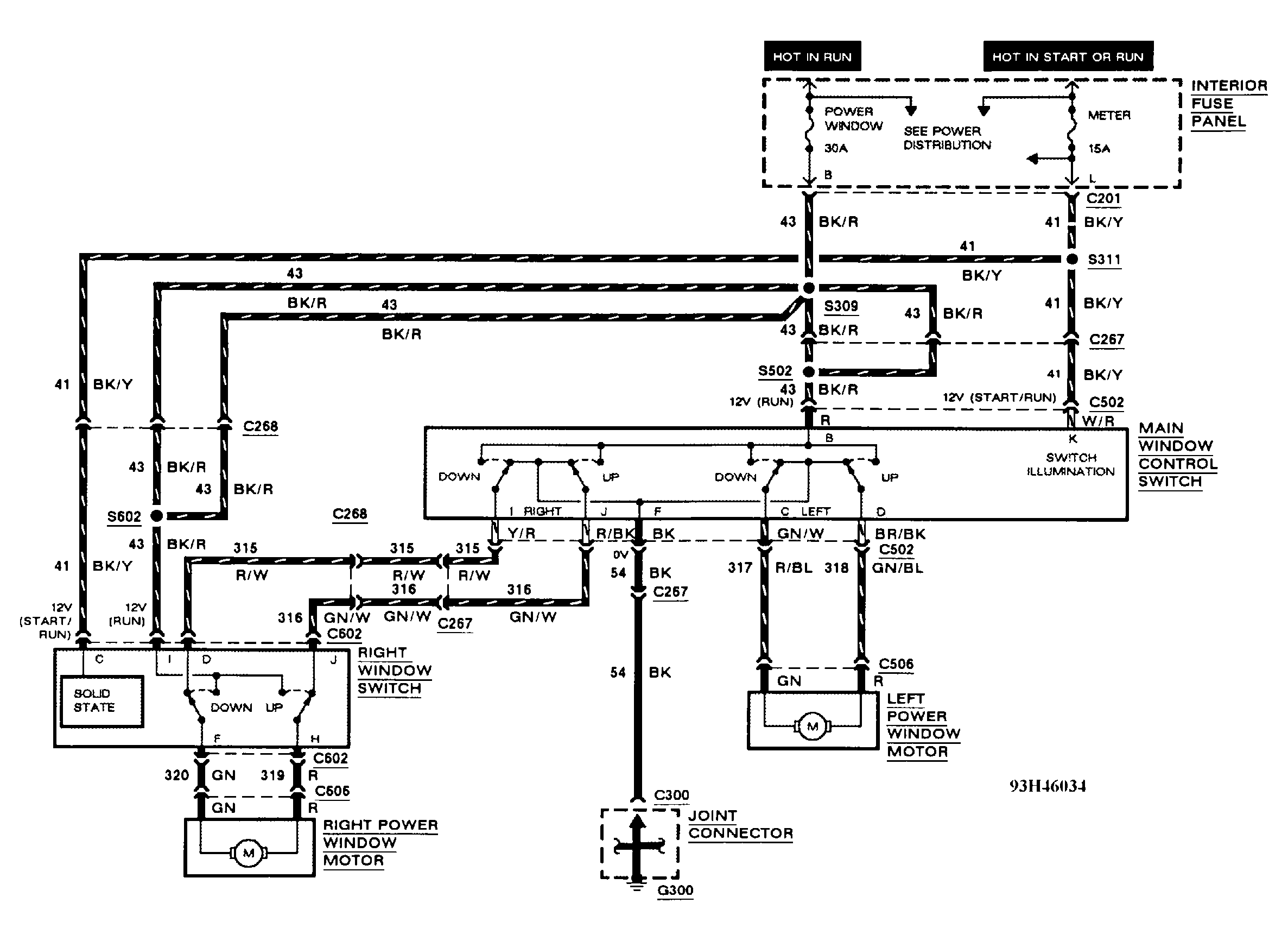

Fig 1: Power Windows Wiring Diagram (Probe)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
