Wiring Diagrams

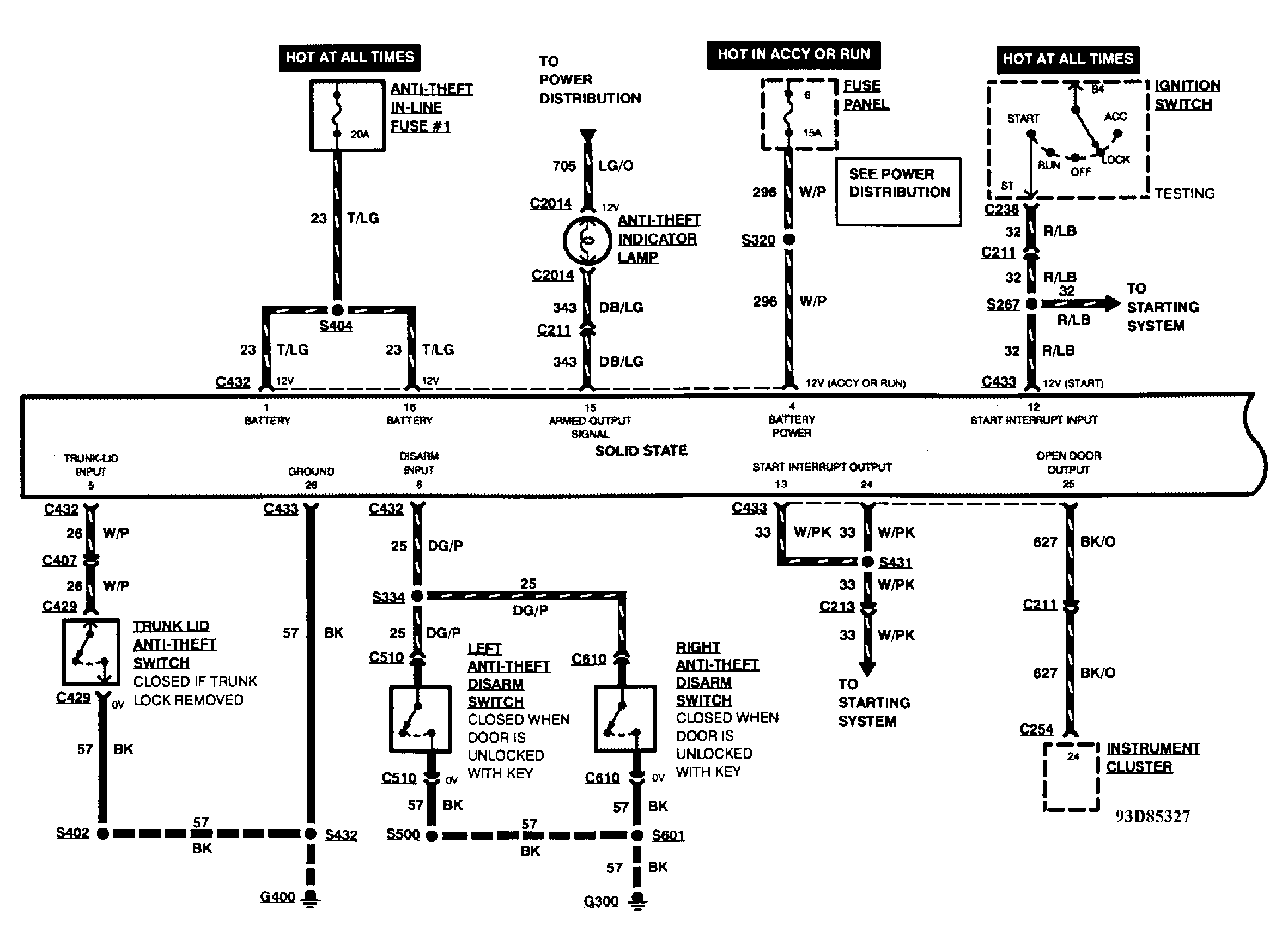

Fig 1: Anti-Theft System Wiring Diagram (Continental - 1 Of 2)

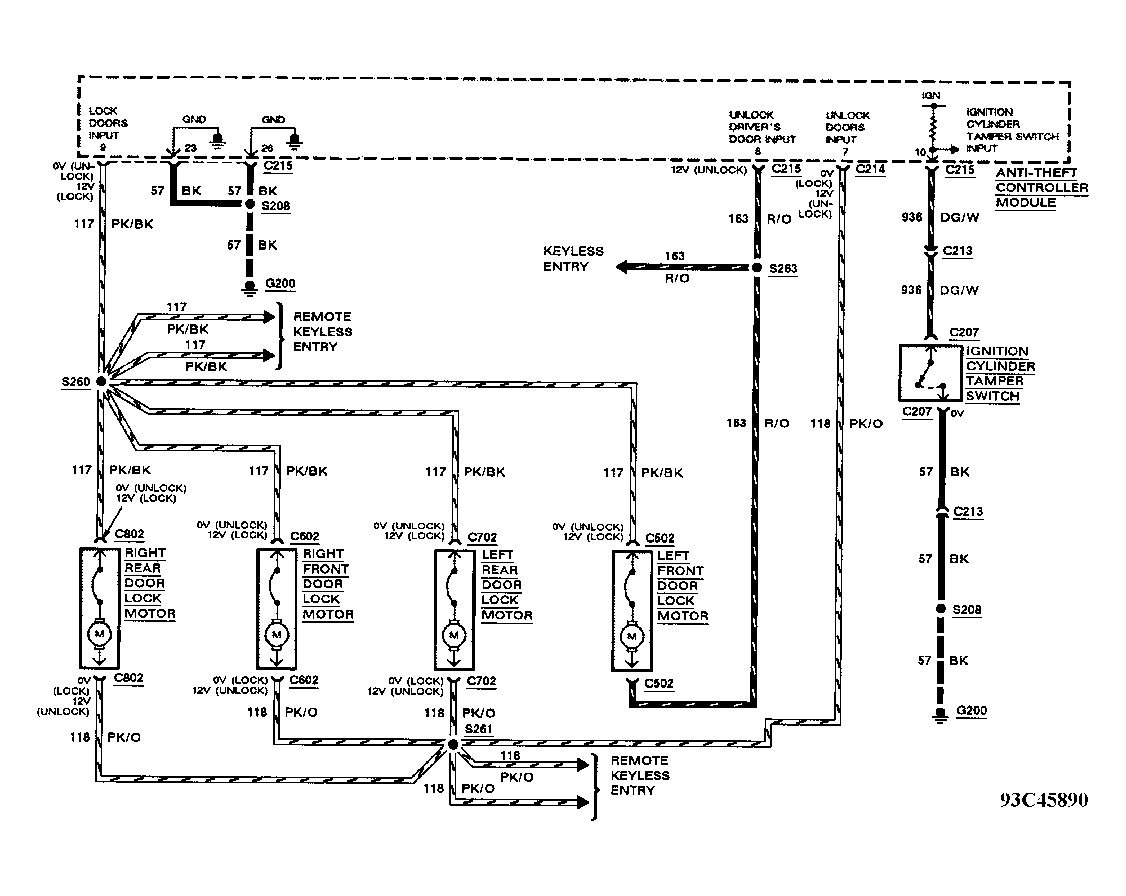

Fig 2: Anti-Theft System Wiring Diagram (Continental - 2 Of 2)

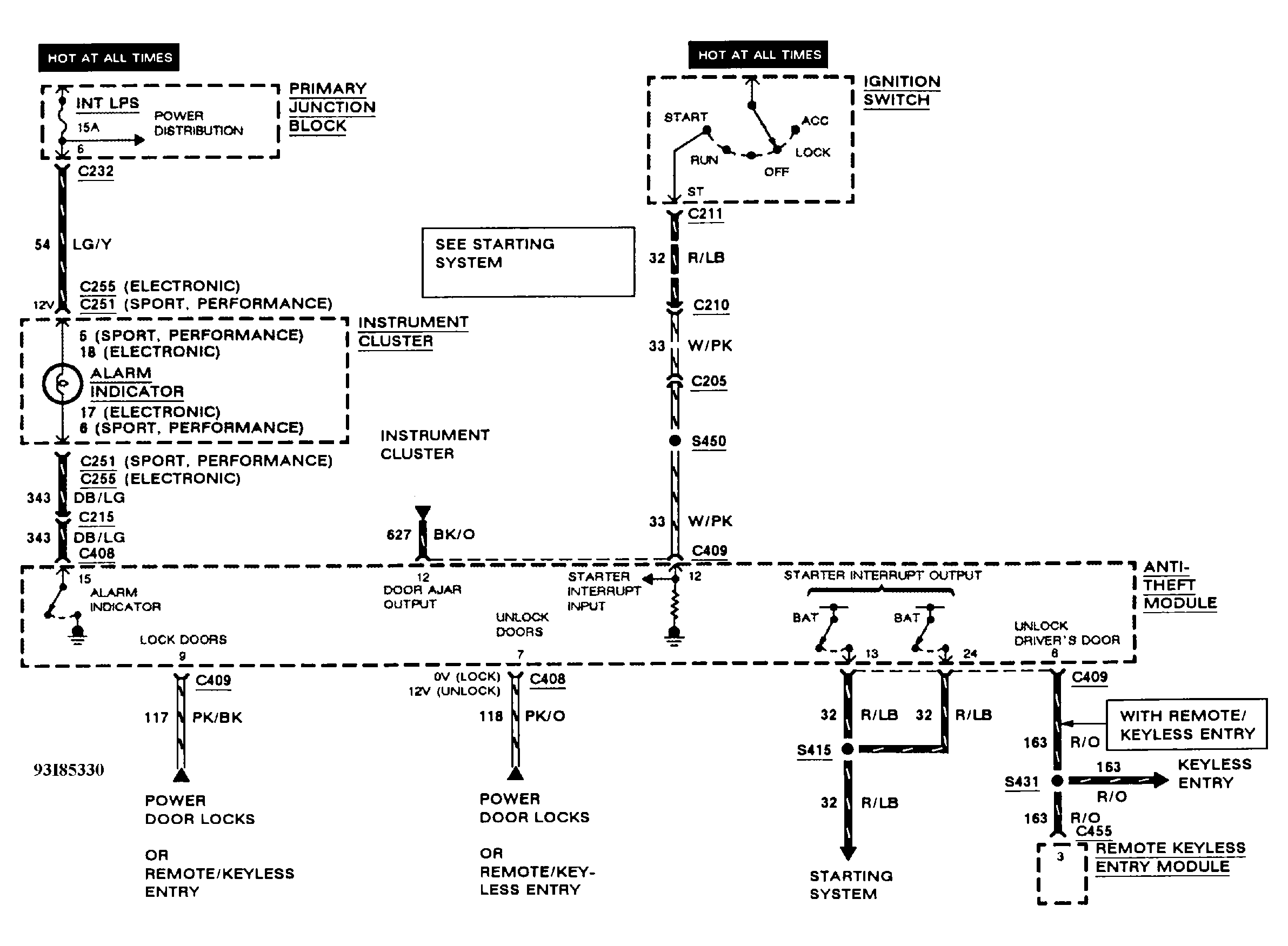

Fig 3: Anti-Theft System Wiring Diagram (Cougar & Thunderbird - 1 Of 3)

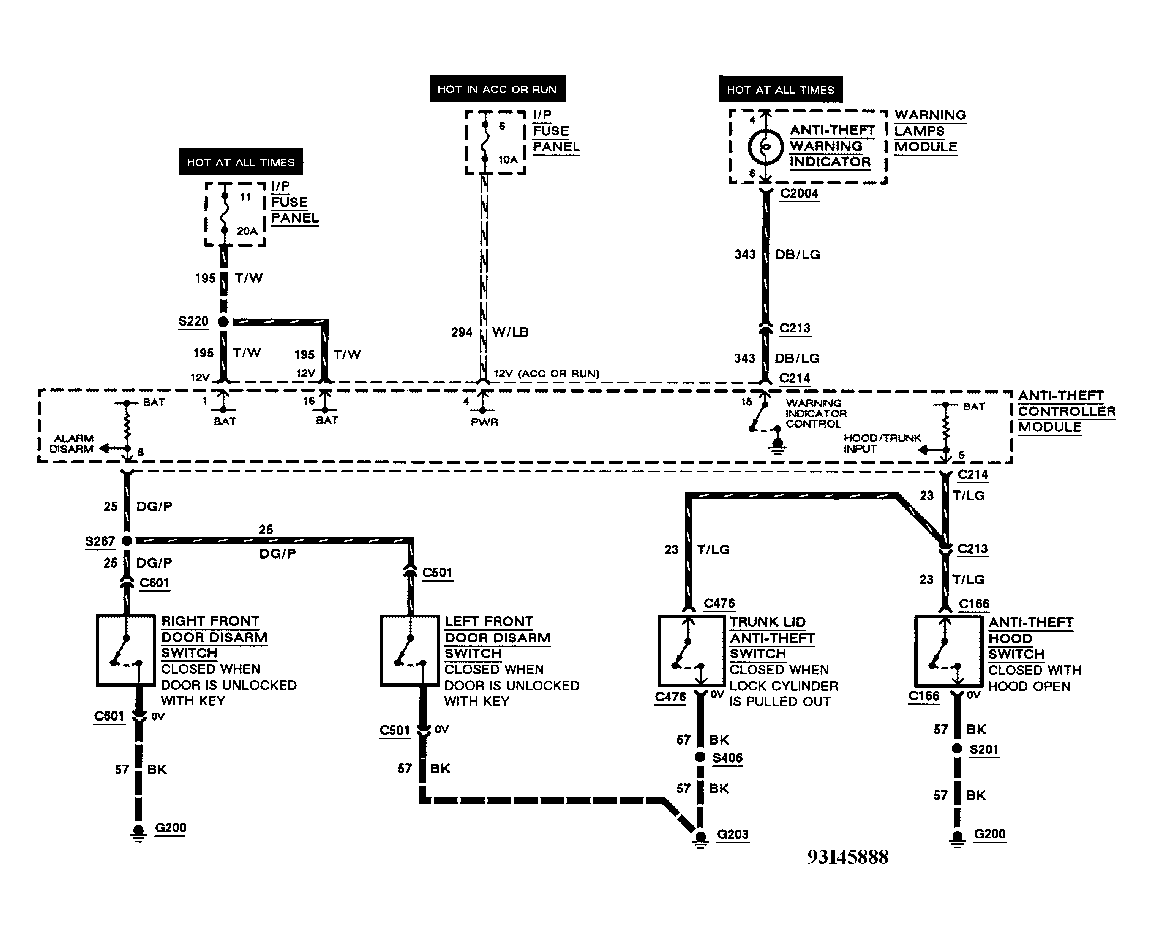

Fig 4: Anti-Theft System Wiring Diagram (Cougar & Thunderbird - 2 Of 3)

Fig 5: Anti-Theft System Wiring Diagram (Cougar & Thunderbird - 3 Of 3)

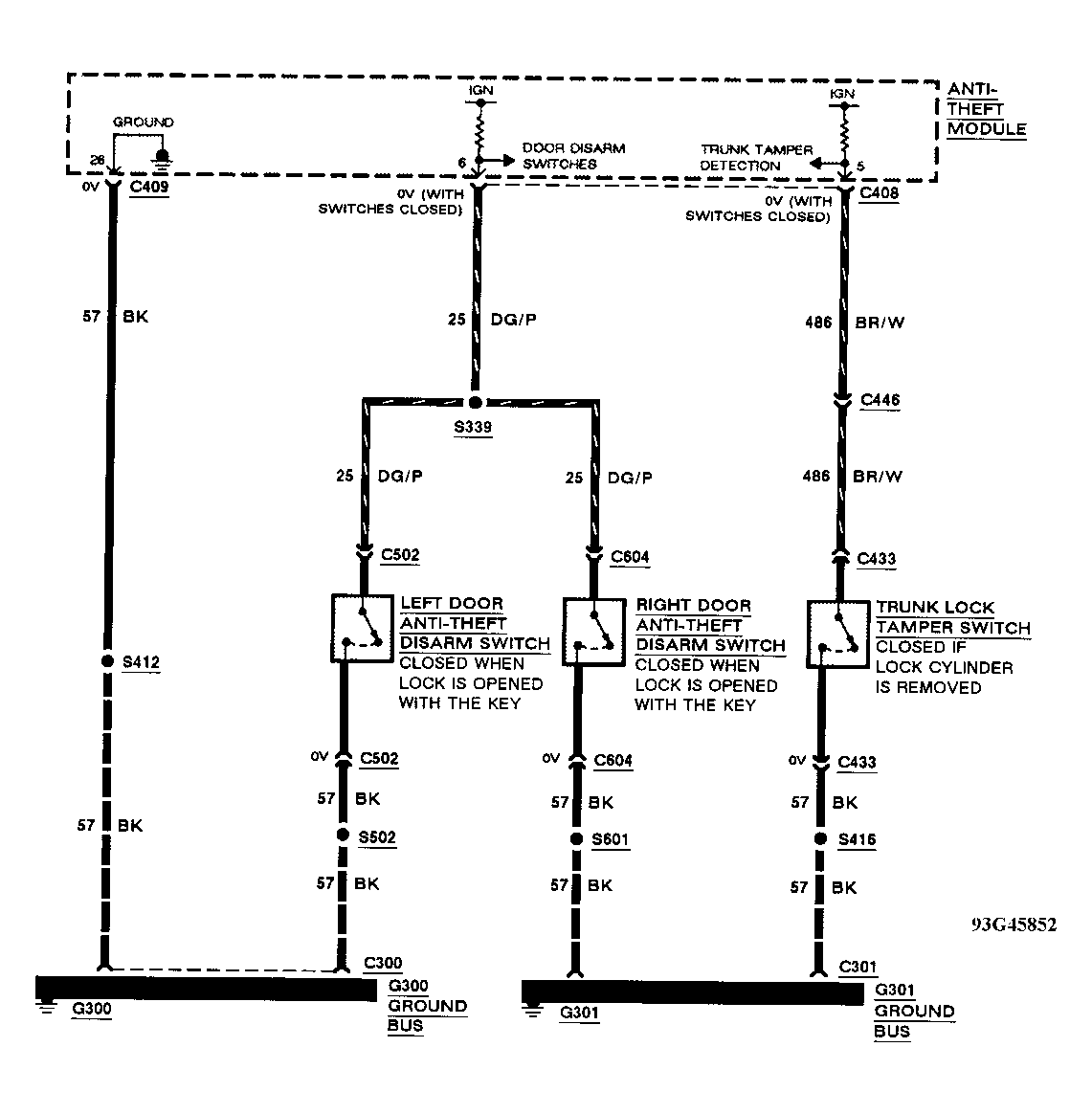

Fig 6: Anti-Theft System Wiring Diagram (Mark VII - 1 Of 3)

Fig 7: Anti-Theft System Wiring Diagram (Mark VIII - 2 Of 3)

Fig 8: Anti-Theft System Wiring Diagram (Mark VII - 3 Of 3)

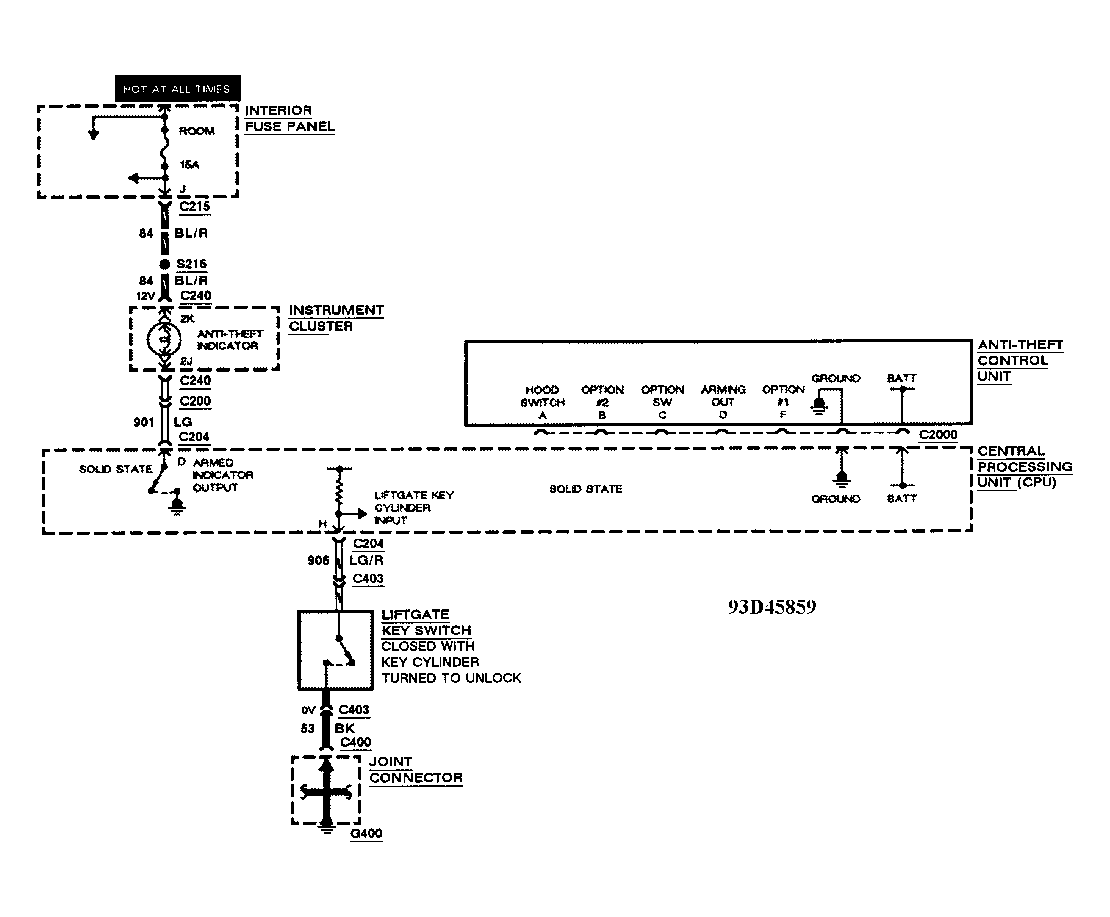

Fig 9: Anti-Theft System Wiring Diagram (Probe - 1 Of 4)

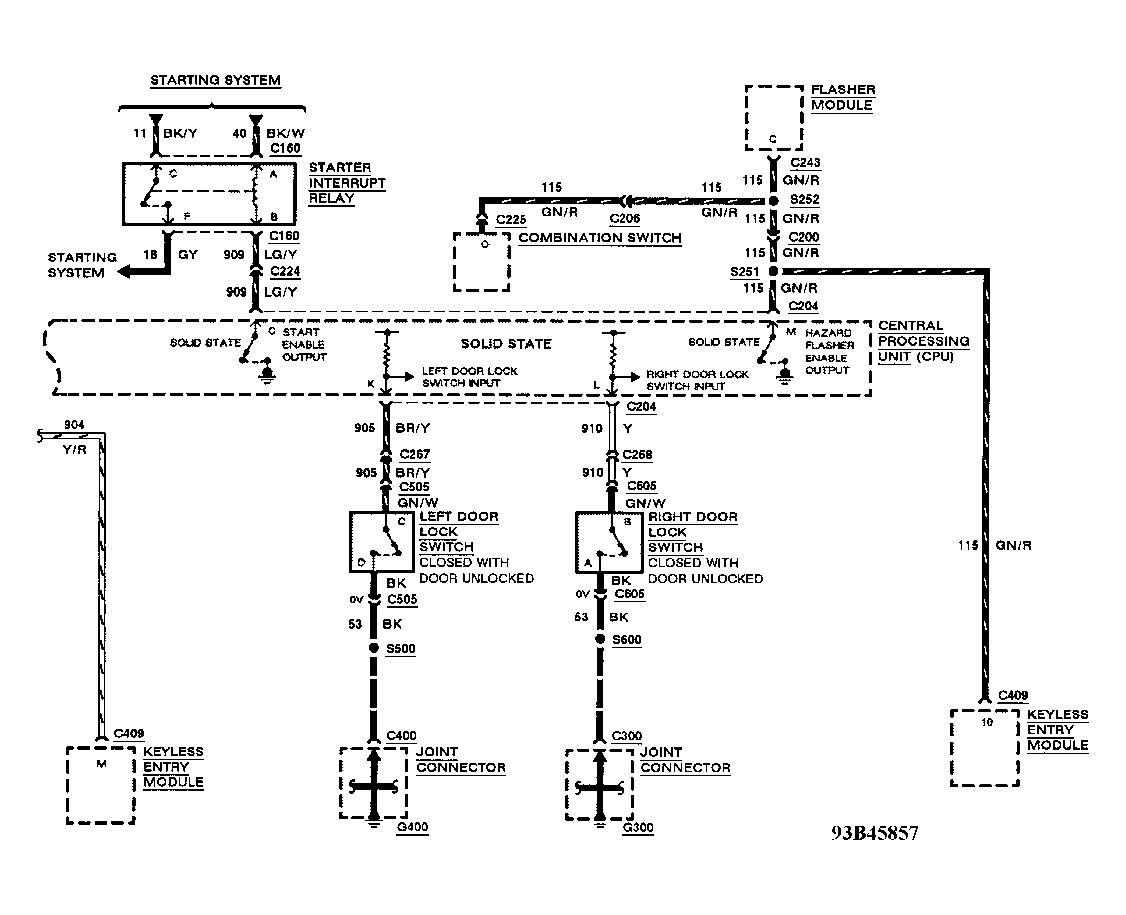

Fig 10: Anti-Theft System Wiring Diagram (Probe - 2 Of 4)

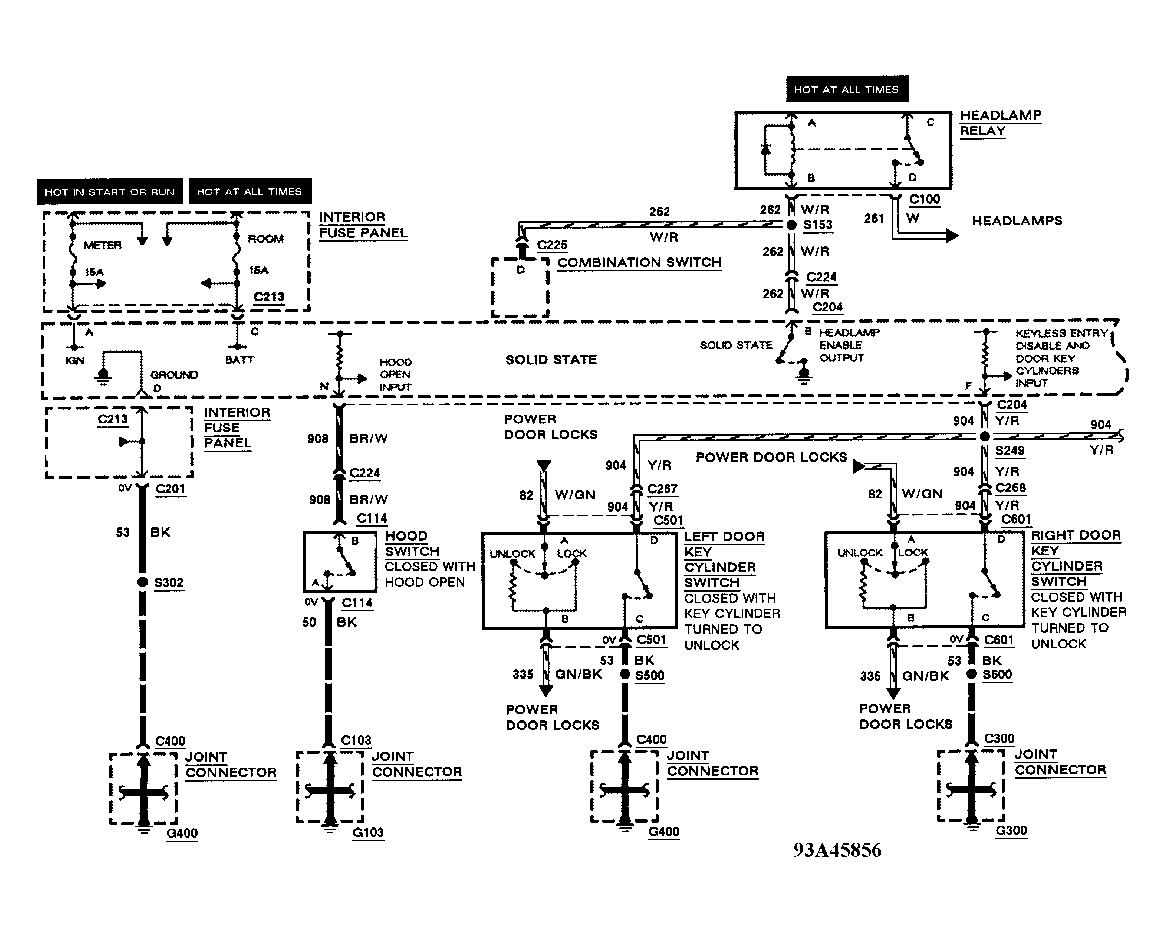

Fig 11: Anti-Theft System Wiring Diagram (Probe - 3 Of 4)

Fig 12: Anti-Theft System Wiring Diagram (Probe - 4 Of 4)

Fig 13: Anti-Theft System Wiring Diagram (Town Car - 1 Of 3)

Fig 14: Anti-Theft System Wiring Diagram (Town Car - 2 Of 3)

Fig 15: Anti-Theft System Wiring Diagram (Town Car - 3 Of 3)
