Wiring Diagrams

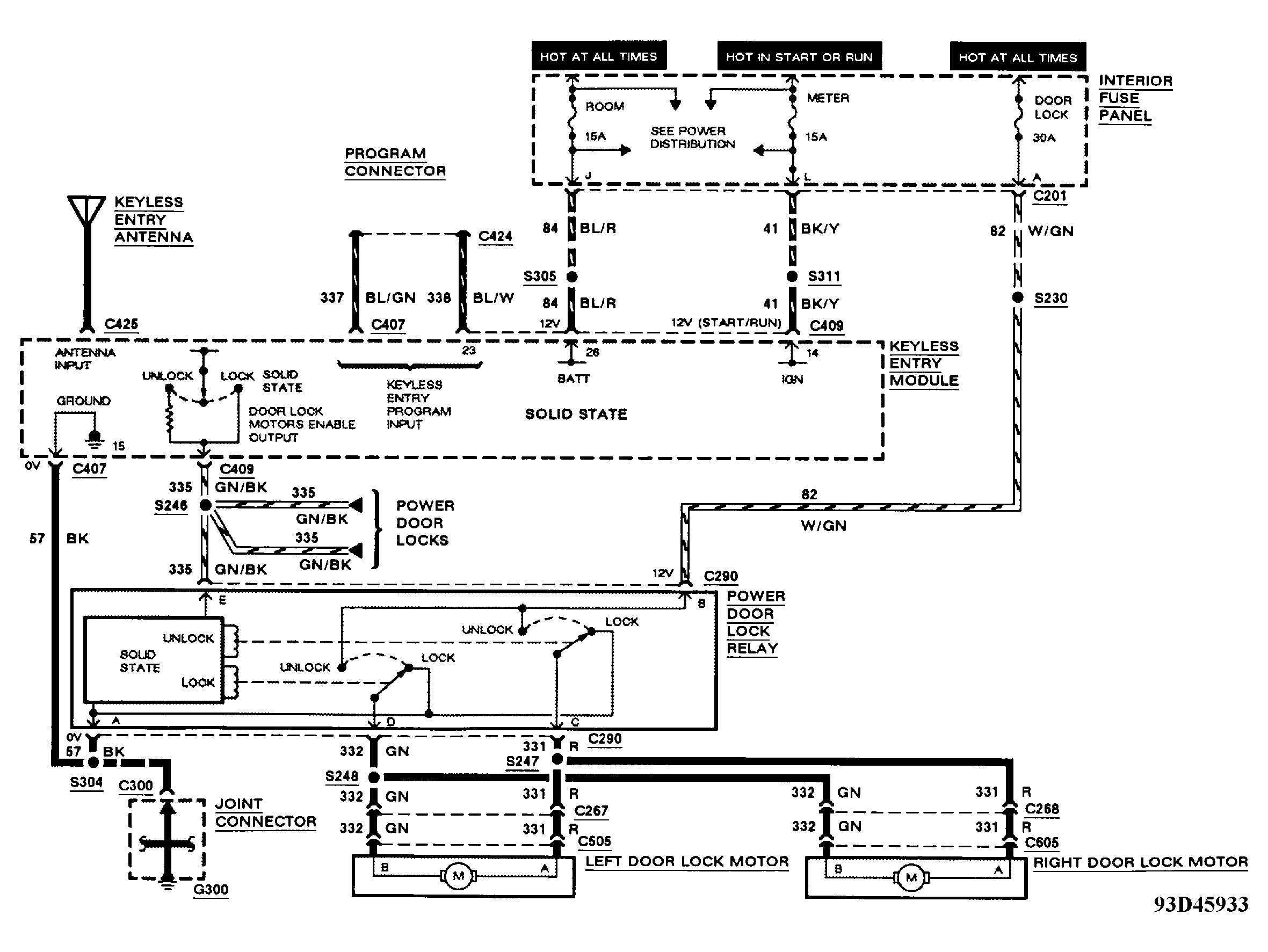

Fig 1: Remote Keyless Entry Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

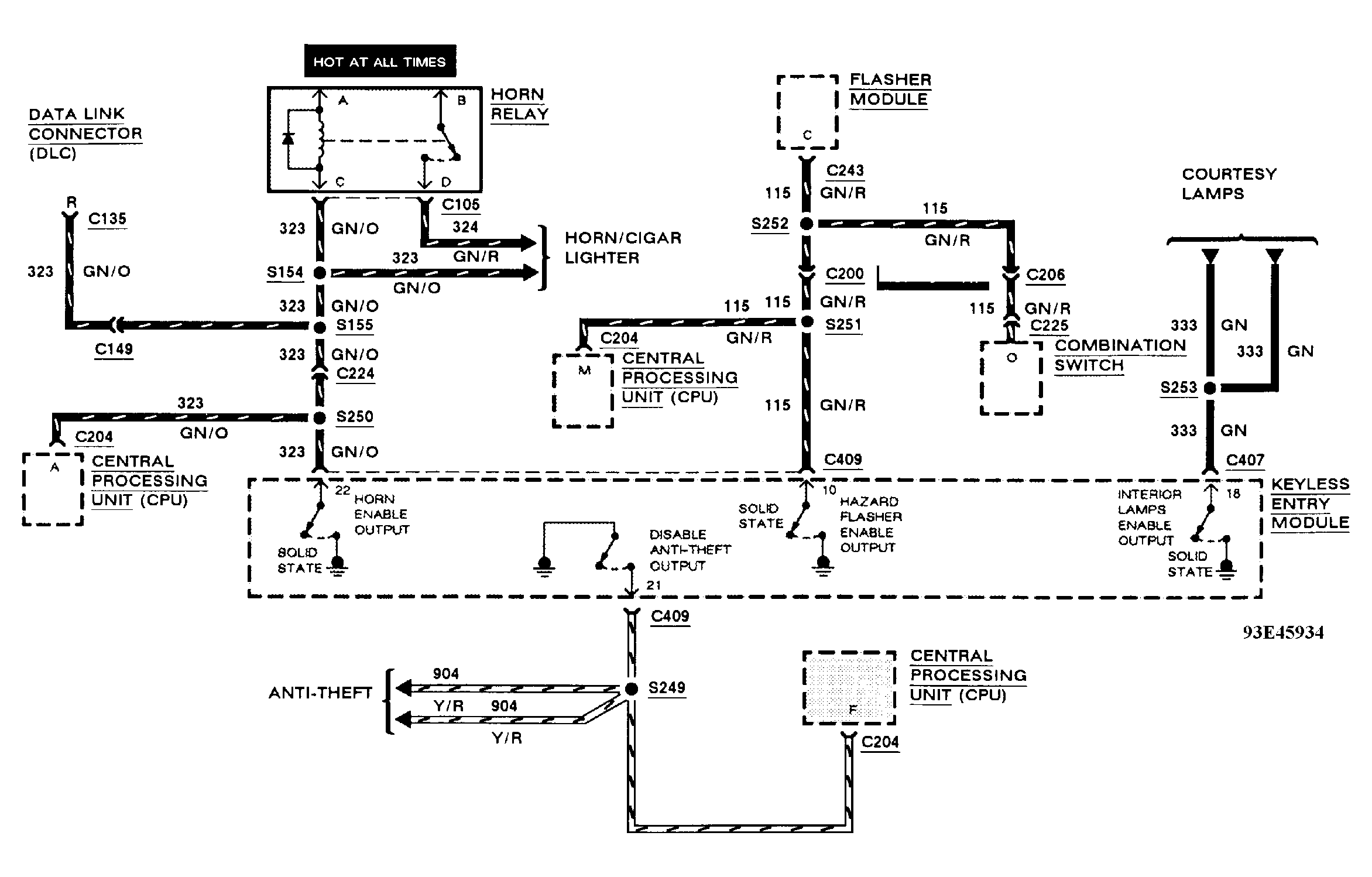

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
