Wiring Diagrams

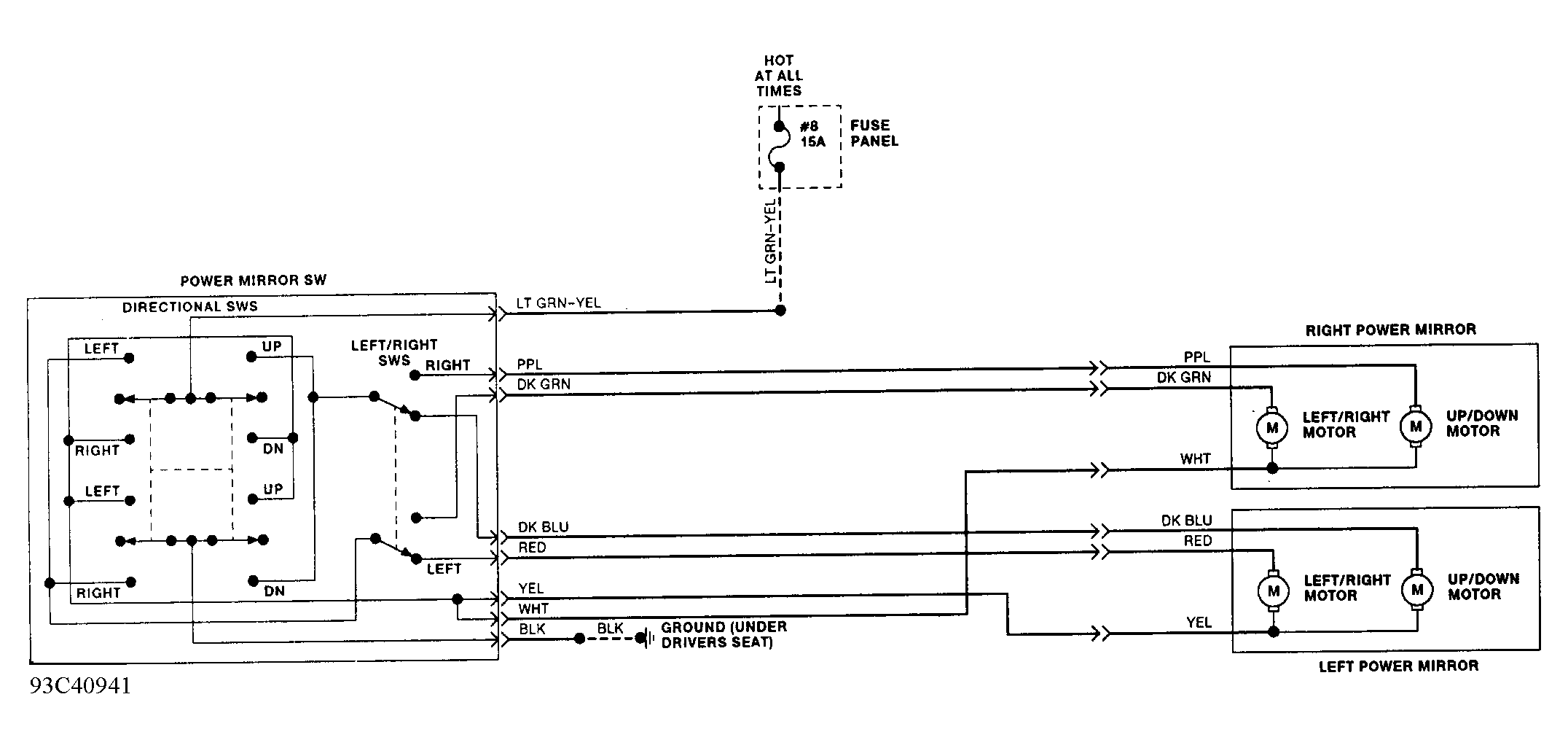

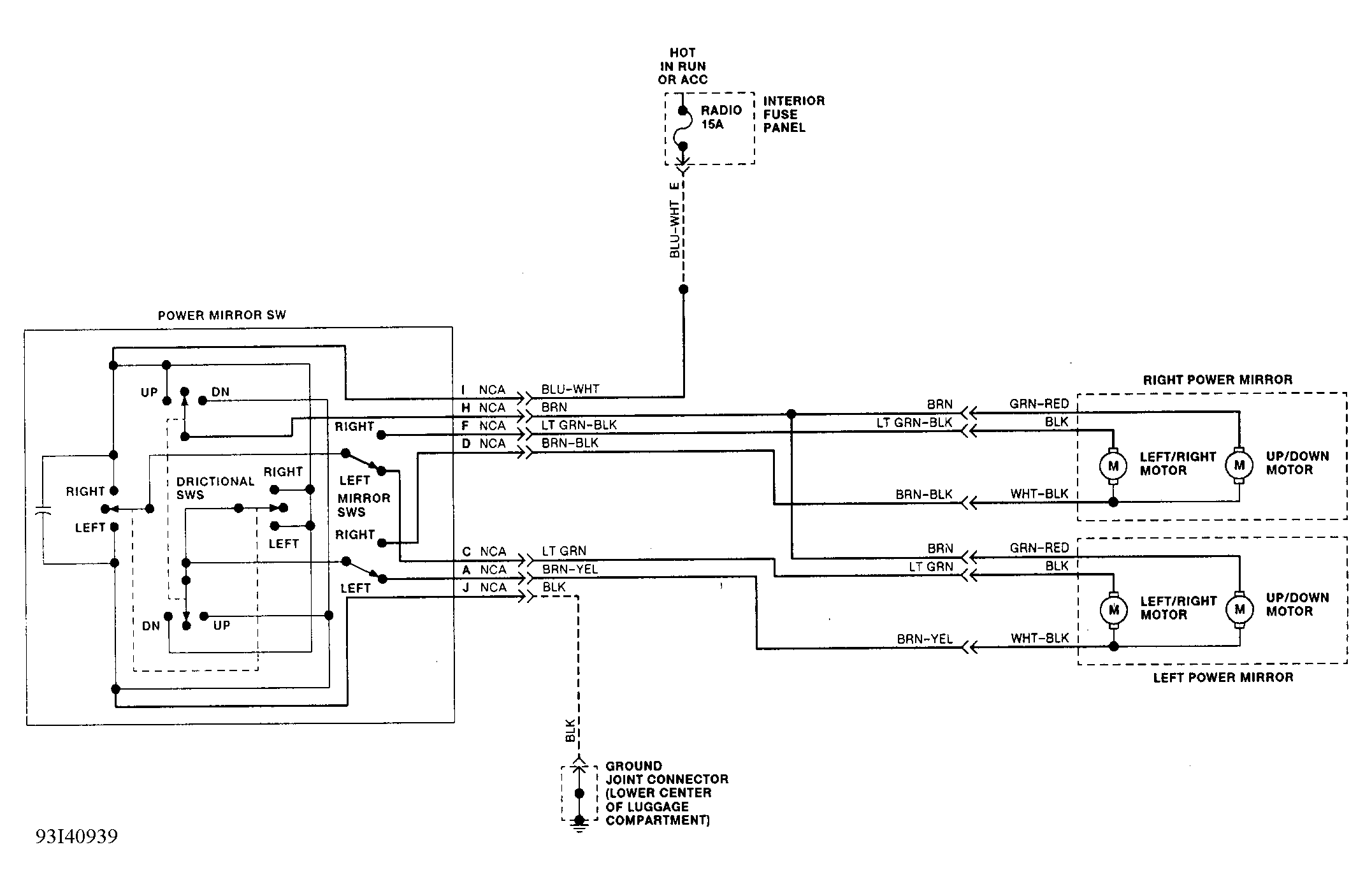

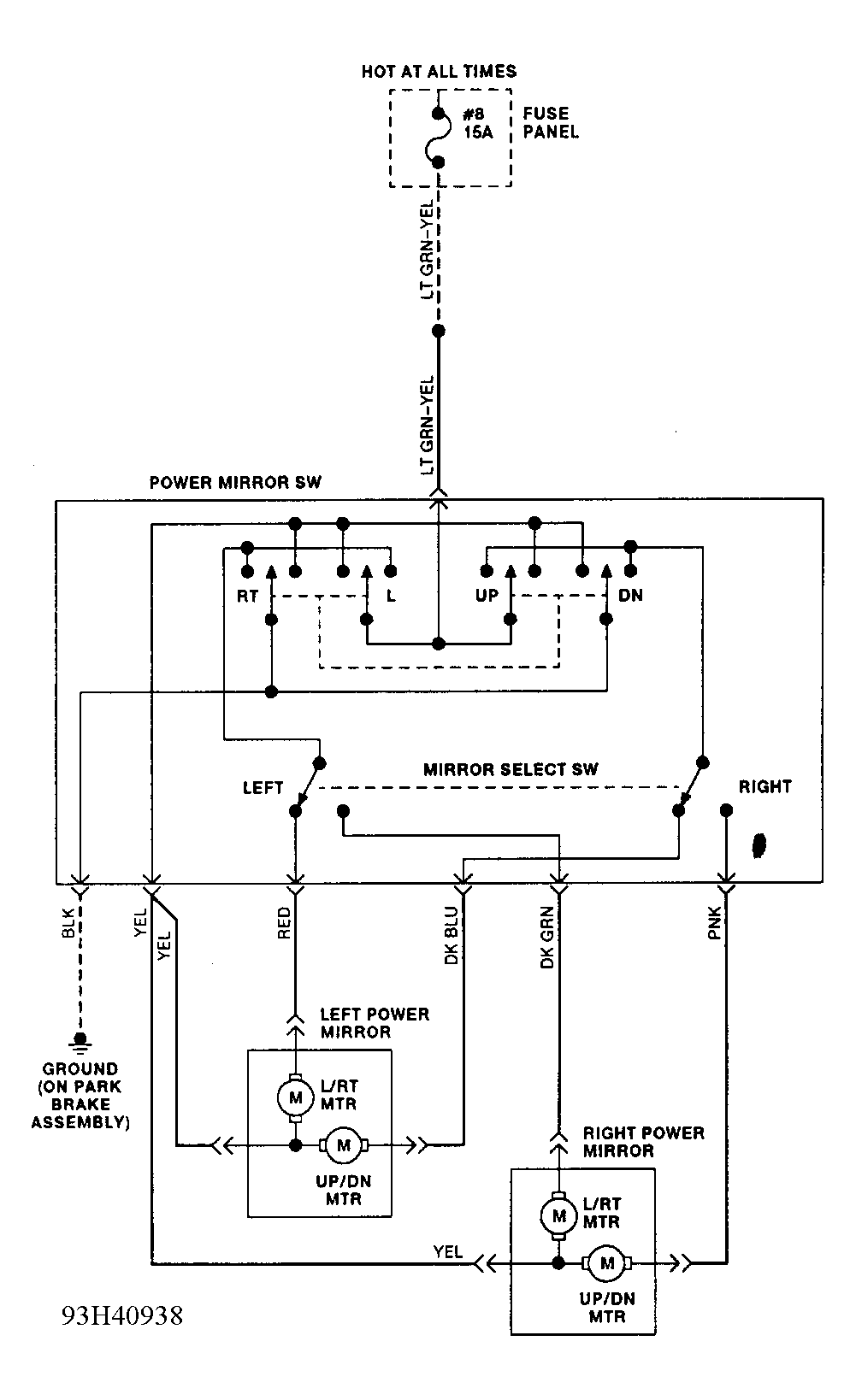

Fig 1: Power Mirror System Wiring Diagram (Continental)

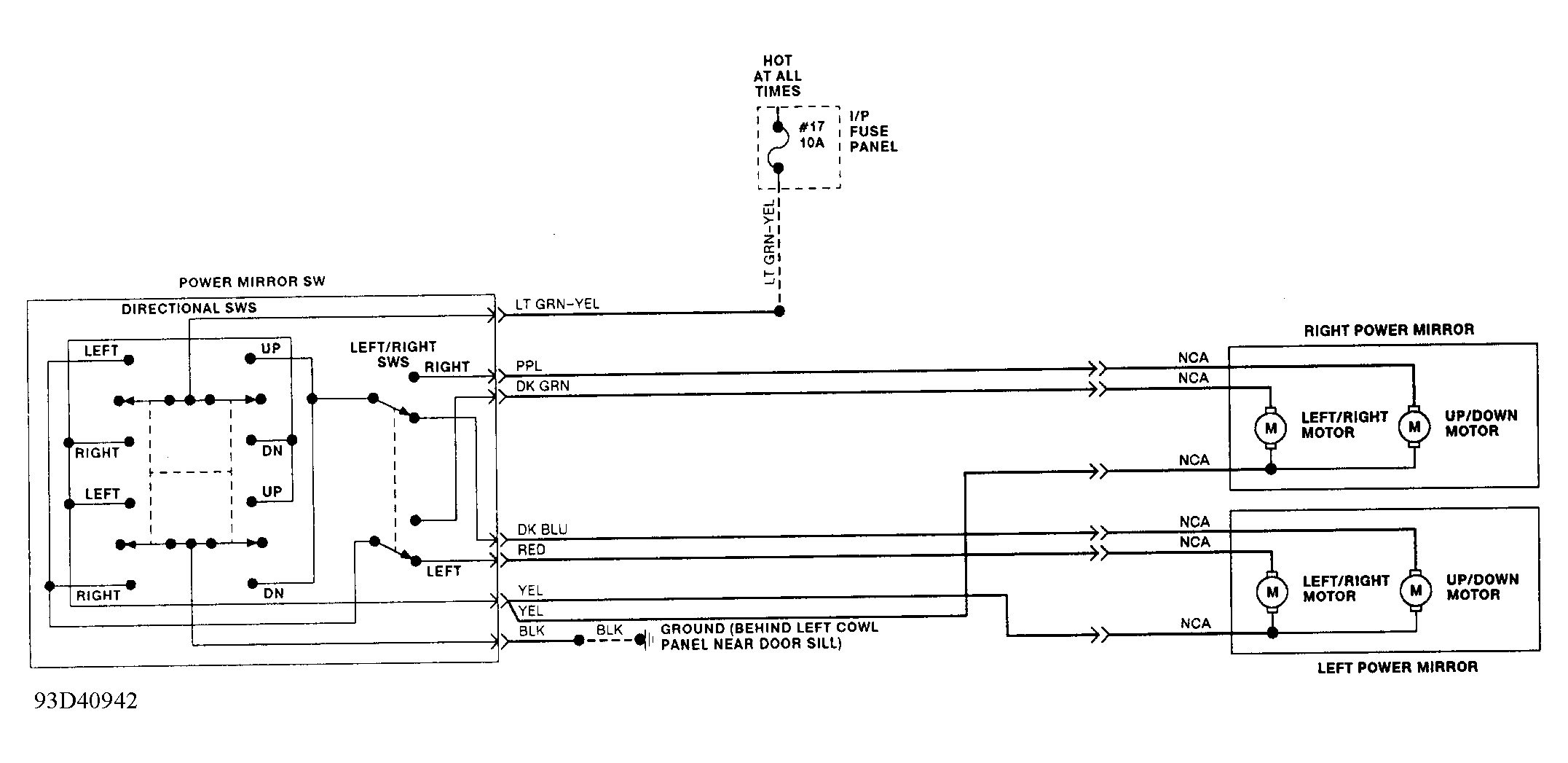

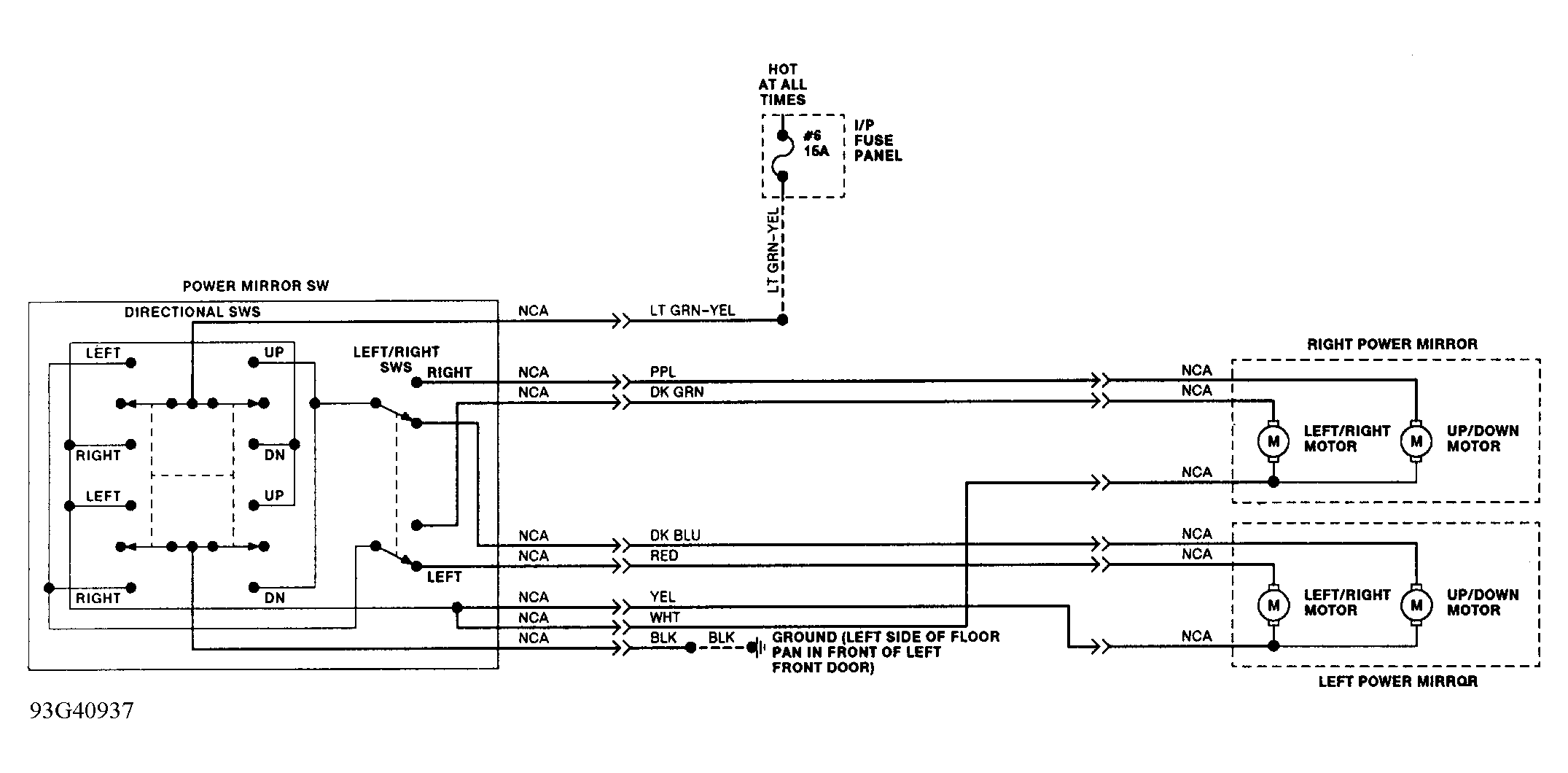

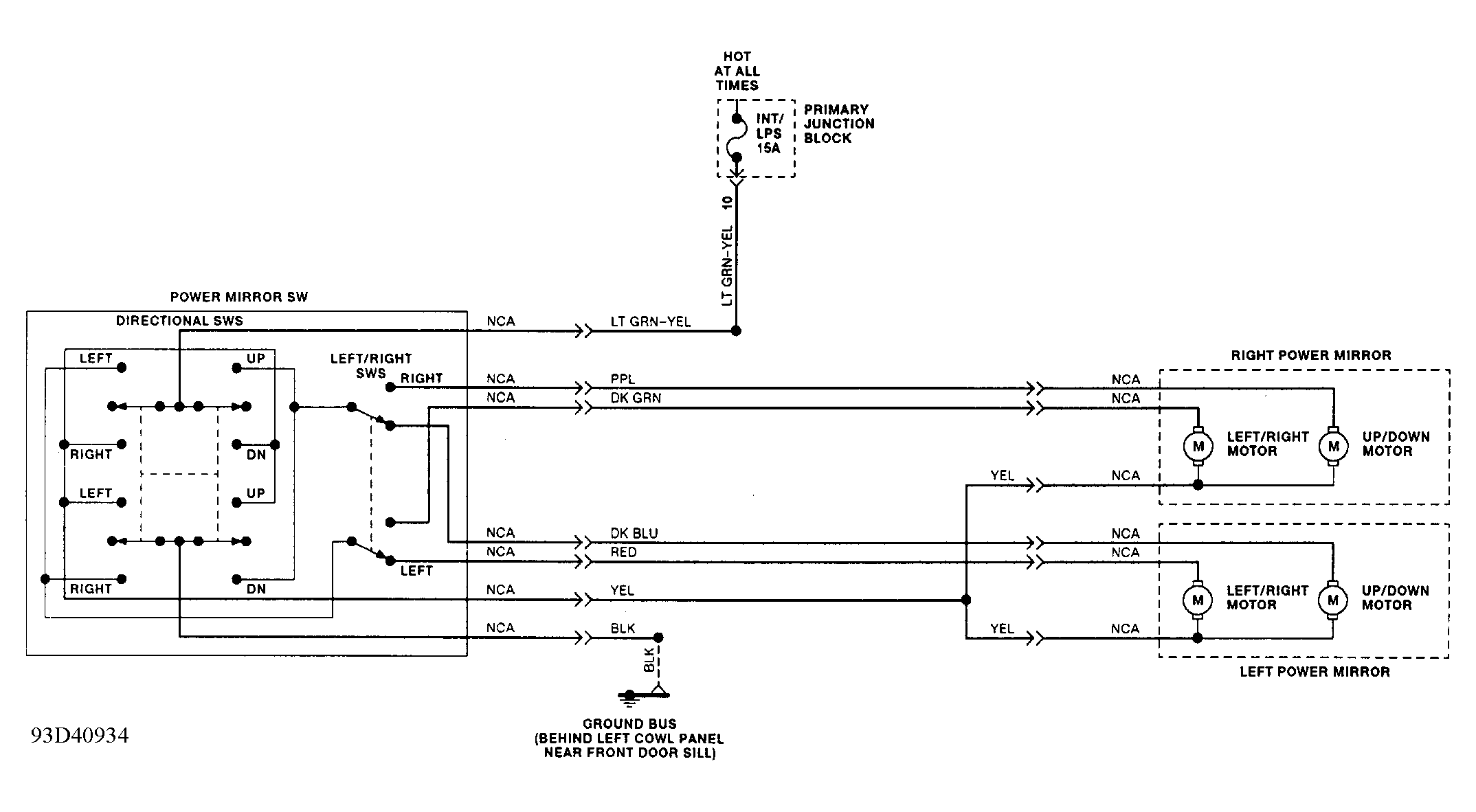

Fig 2: Power Mirror System Wiring Diagram (Cougar & Thunderbird)

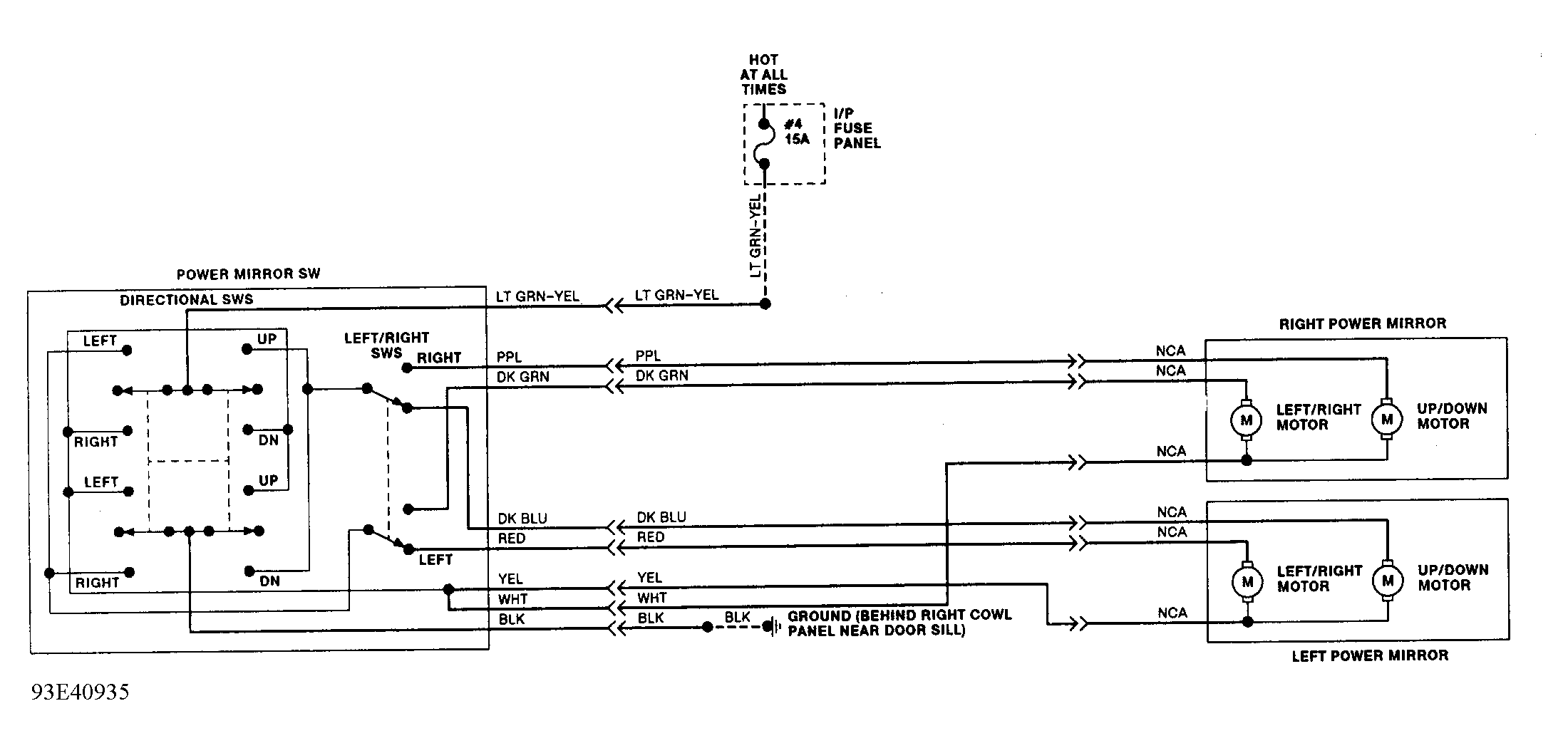

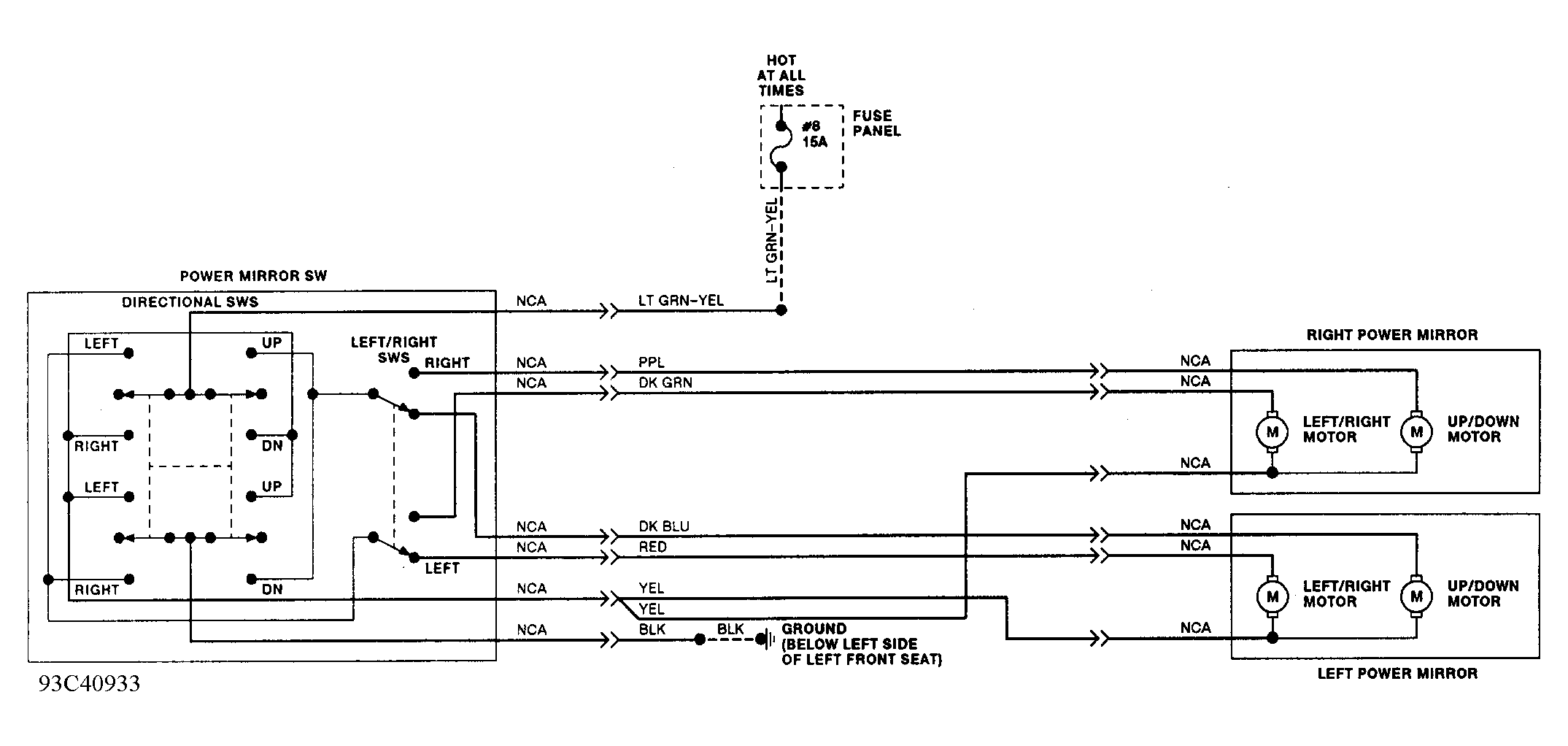

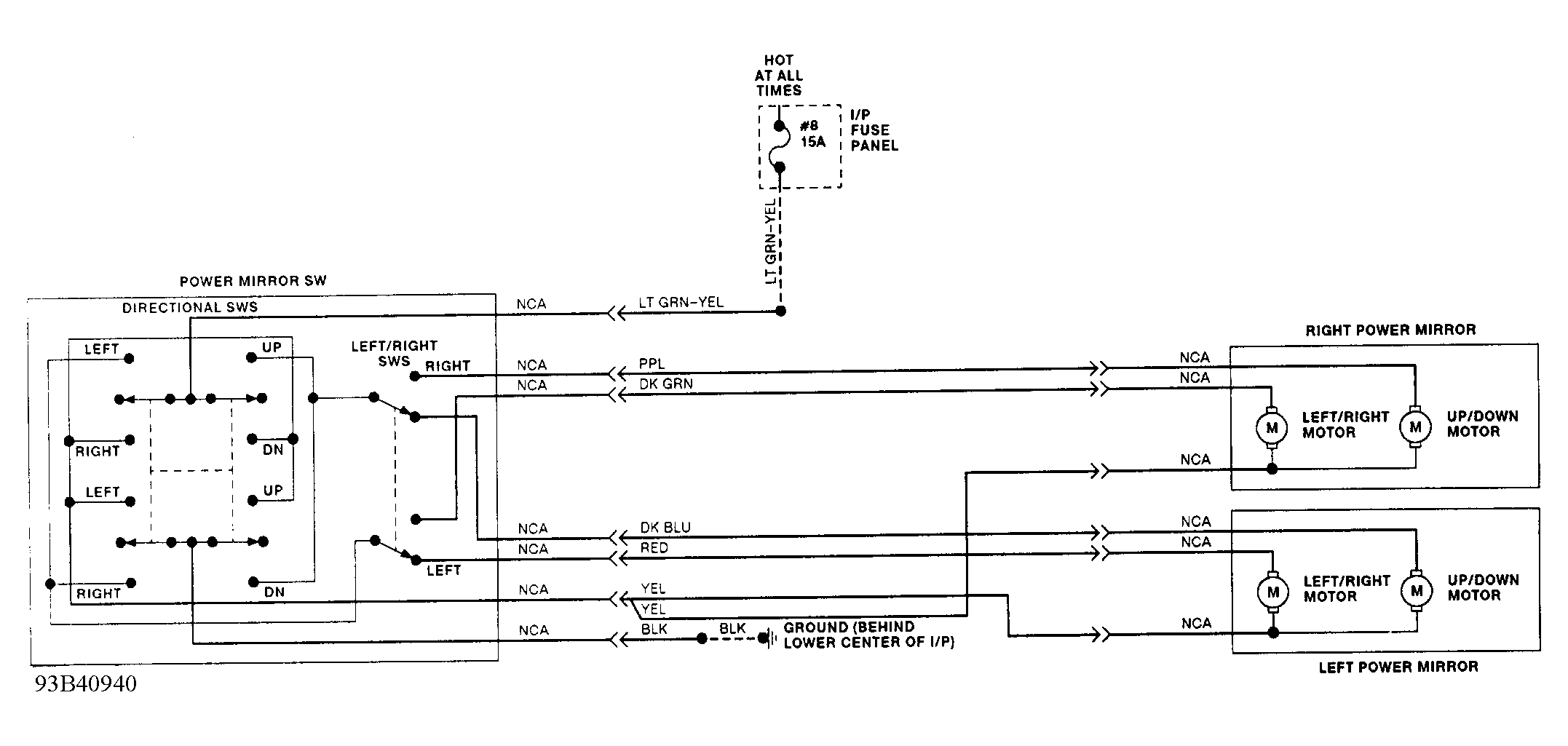

Fig 3: Power Mirror System Wiring Diagram (Crown Victoria & Grand Marquis)

Fig 4: Power Mirror System Wiring Diagram (Escort & Tracer)

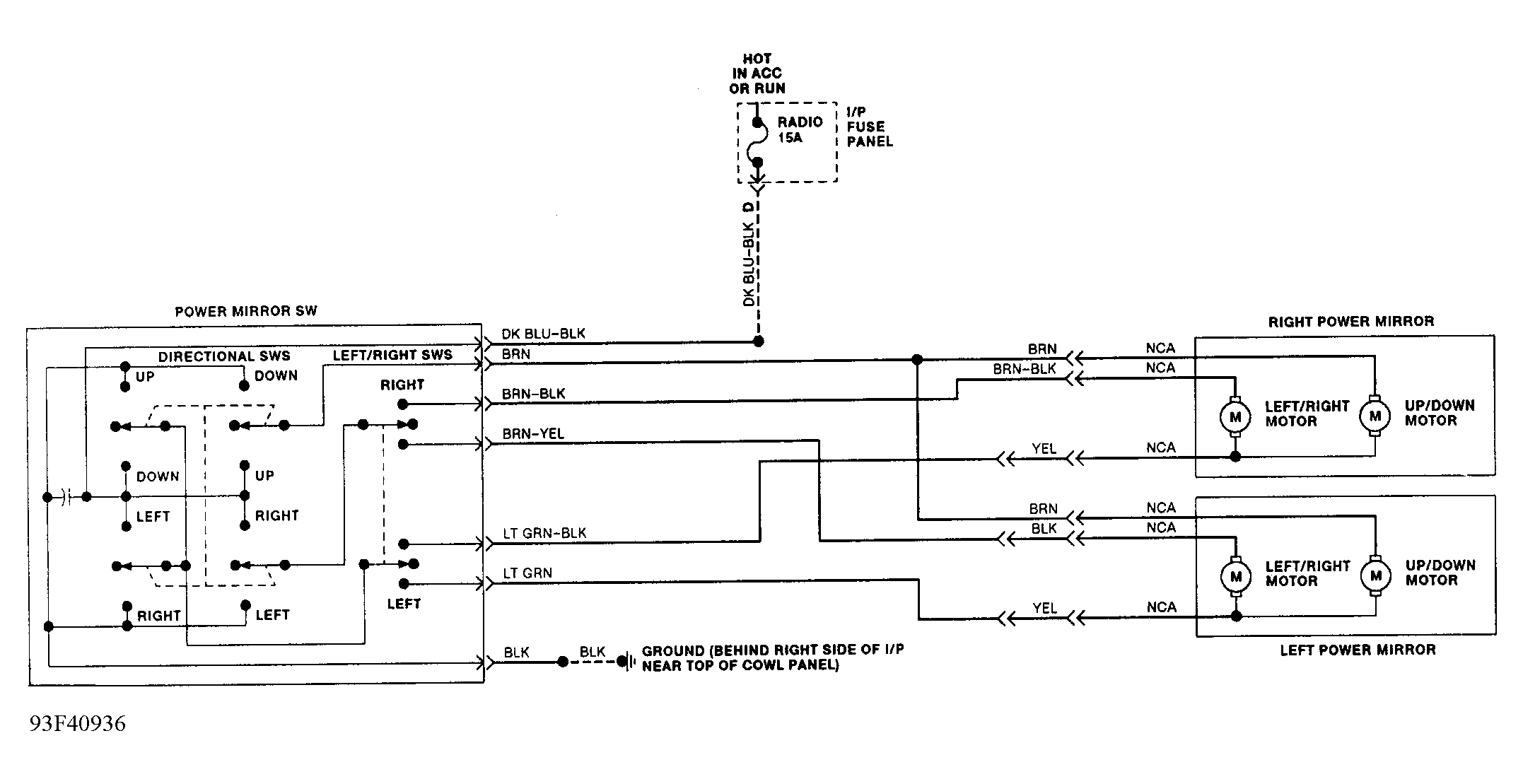

Fig 5: Power Mirror System Wiring Diagram (Mark VIII)

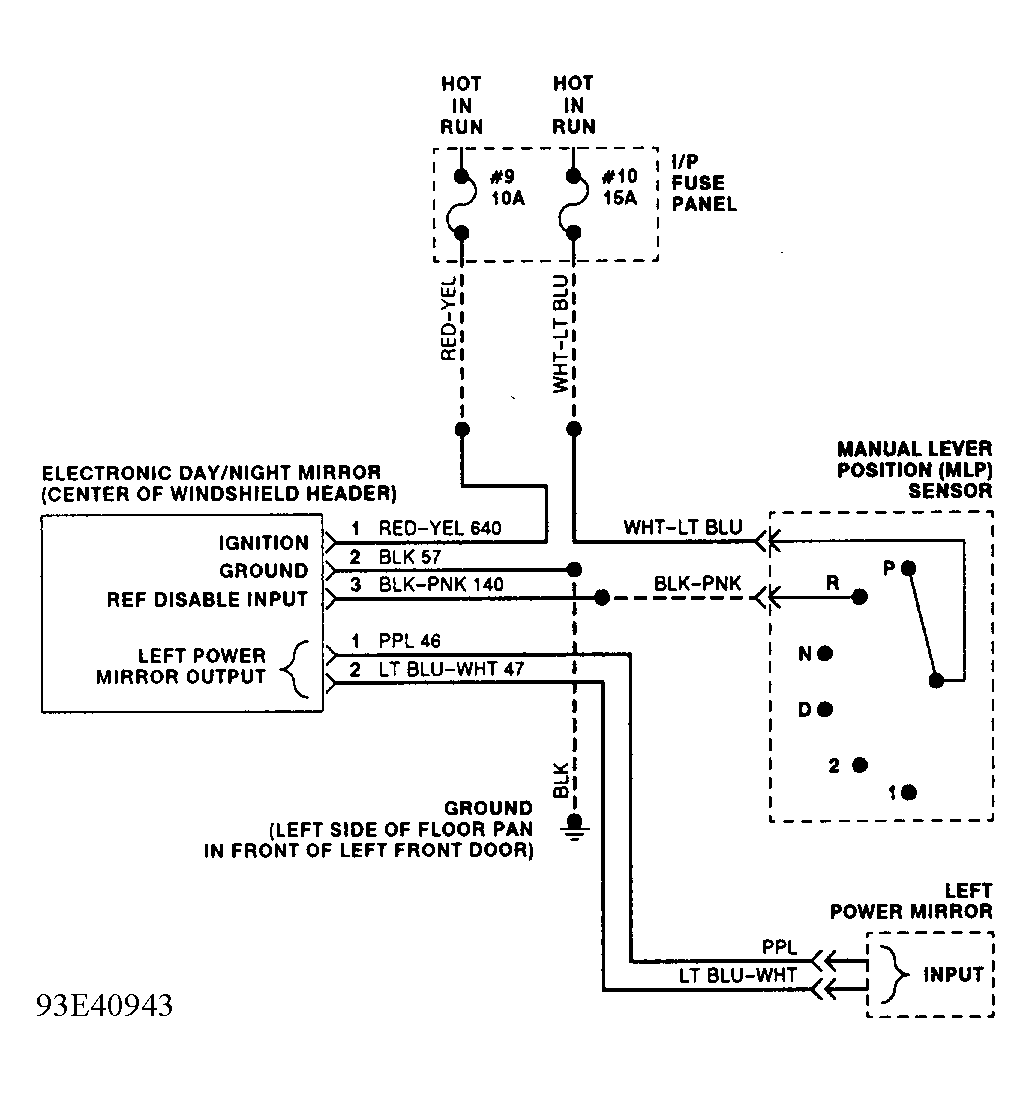

Fig 6: Electronic Rear View Mirror Wiring Diagram (Mark VIII)

Fig 7: Power Mirror System Wiring Diagram (Mustang)

Fig 8: Power Mirror System Wiring Diagram (Probe)

Fig 9: Power Mirror System Wiring Diagram (Sable & Taurus)

Fig 10: Power Mirror System Wiring Diagram (Tempo & Topaz)

Fig 11: Power Mirror System Wiring Diagram (Town Car)
