2.0L W/ Auto. Trans.

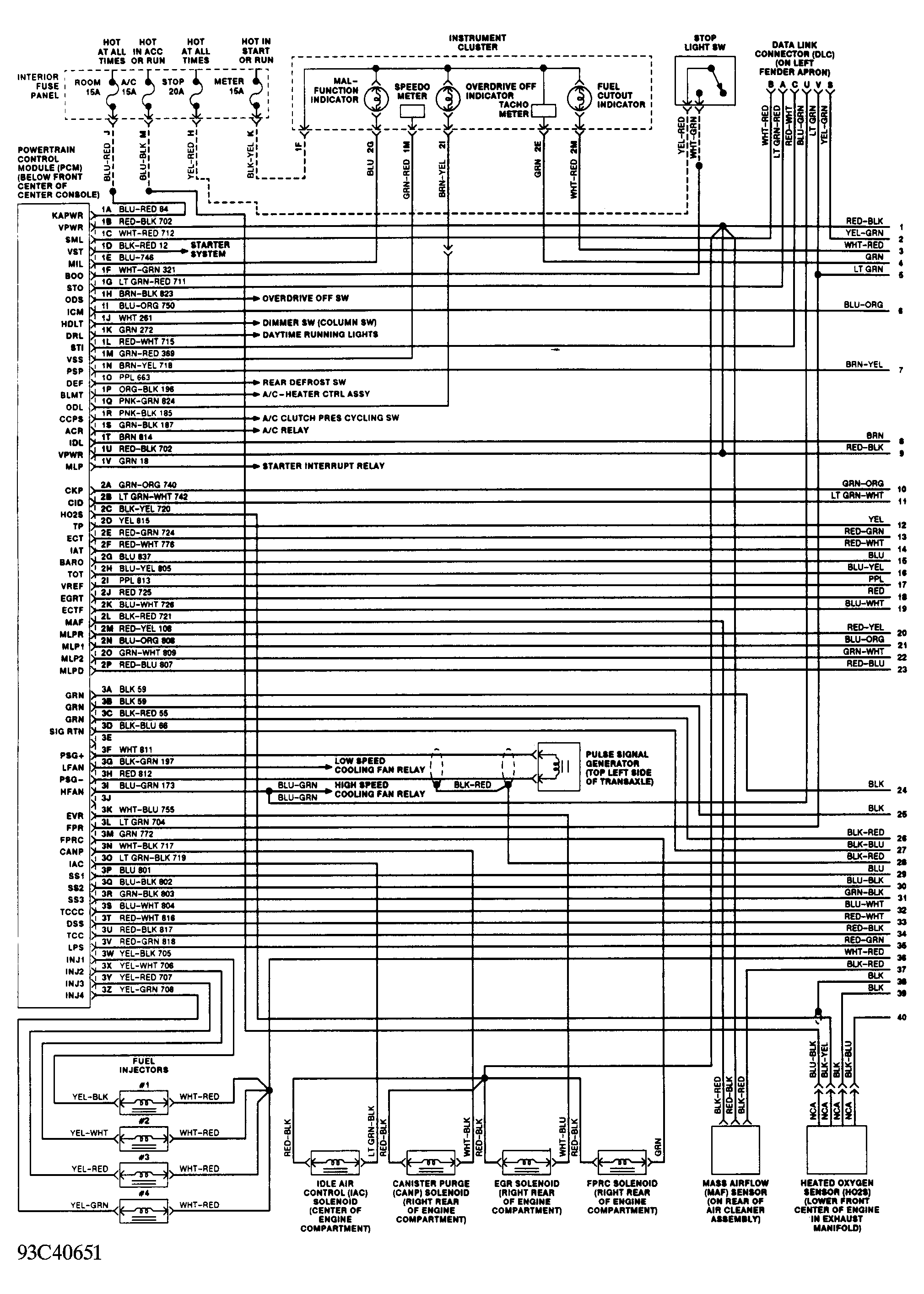

Fig 1: EEC Wiring Diagram (Probe 2.0L A/T - 1 of 2)

G93C40651

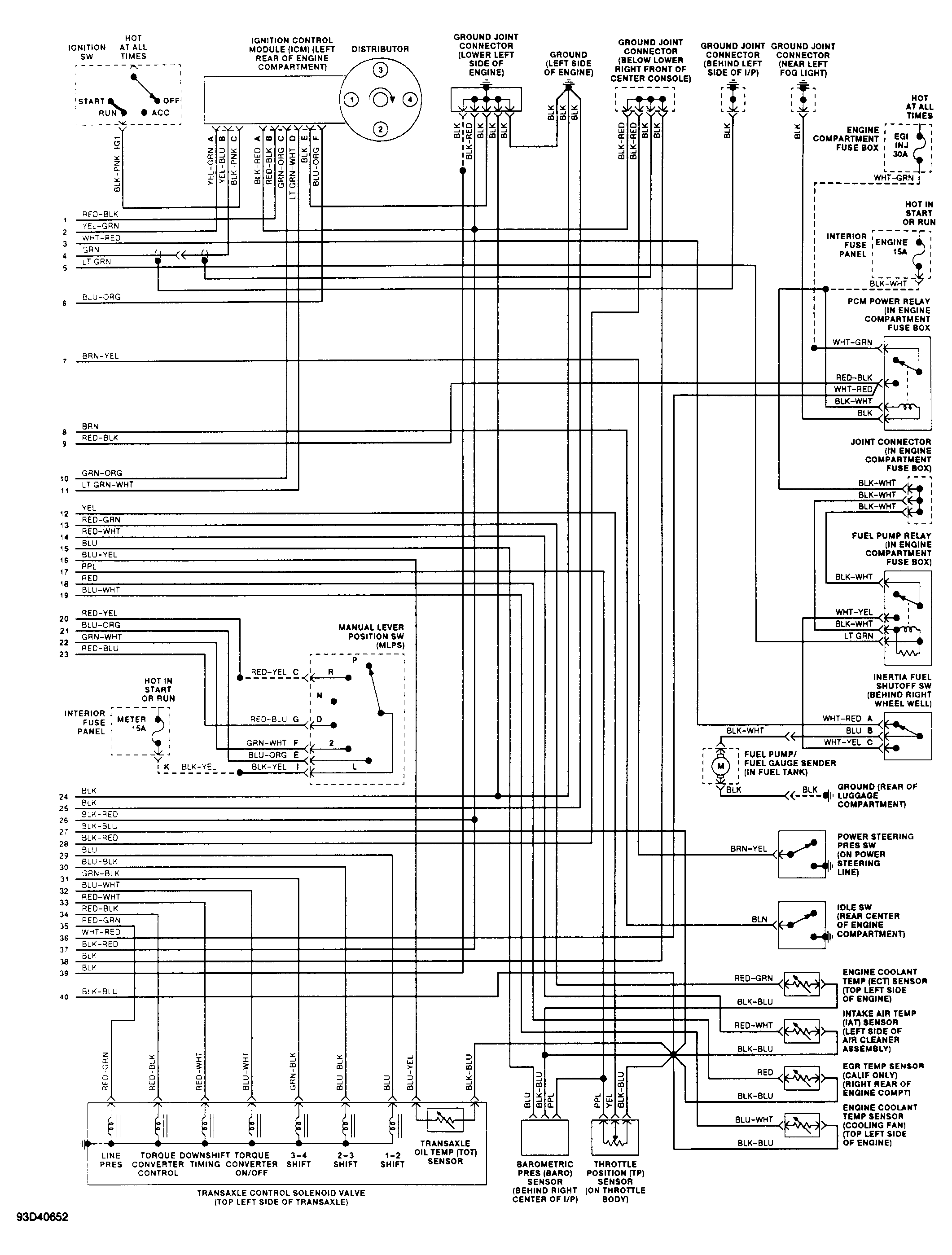

Fig 2: EEC Wiring Diagram (Probe 2.0L A/T - 2 of 2)

G93D40652
