Engine Control System Wiring Diagrams
›
2.0L W/ Man. Trans.
2.0L W/ Man. Trans.

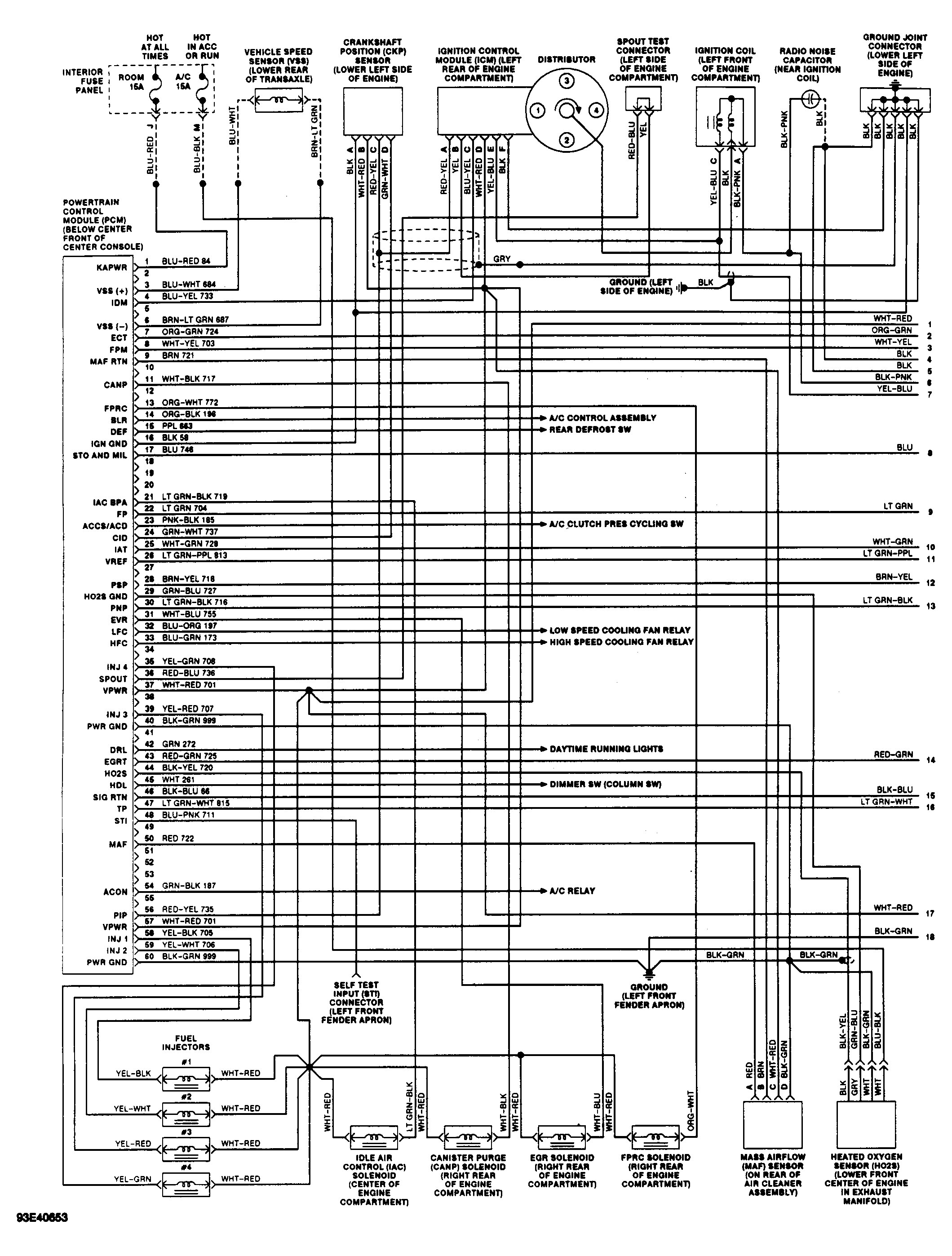

Fig 1: EEC-IV Wiring Diagram (Probe 2.0L M/T - 1 of 2)

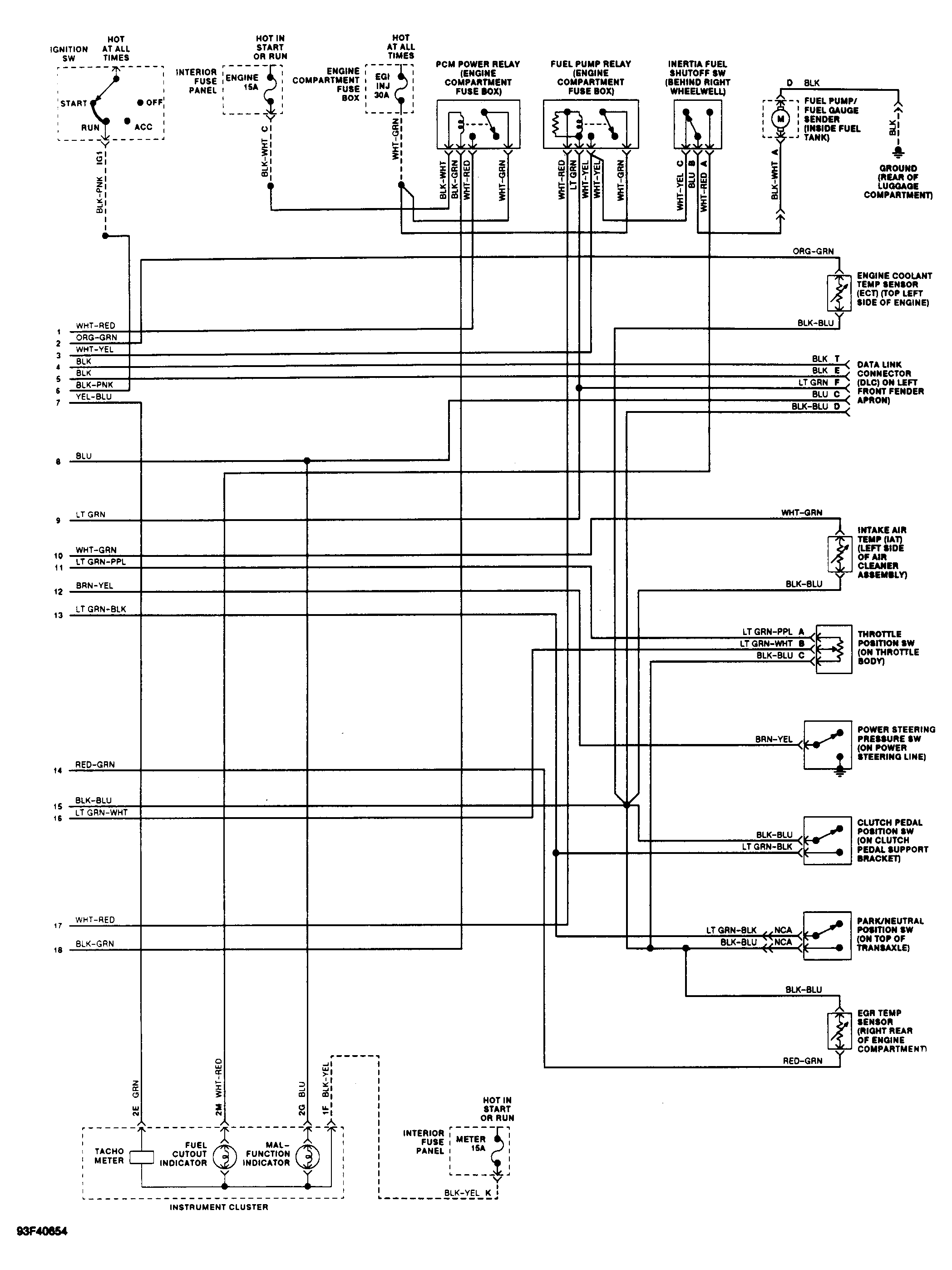

Fig 2: EEC-IV Wiring Diagram (Probe 2.0L M/T - 2 of 2)
