Diagnostic TOUBLE Code Reference Charts (2-Digit): Notes

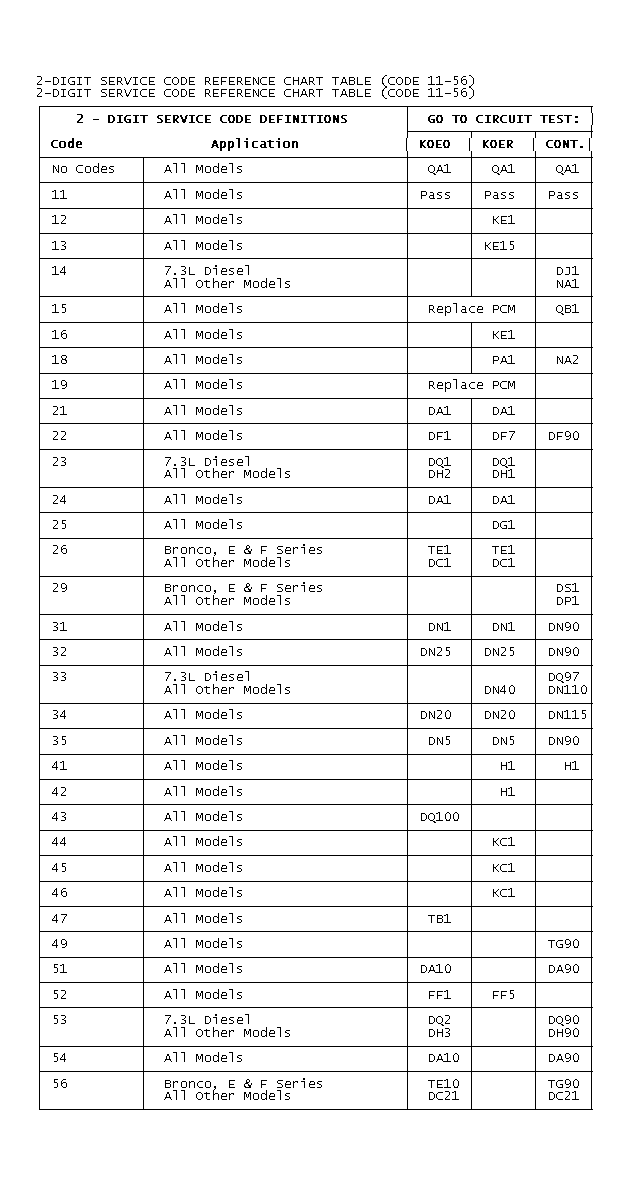

Fig 1: DIAGNOSTIC TOUBLE CODE REFERENCE CHART TABLE (CODE 11-56)

GB0021009

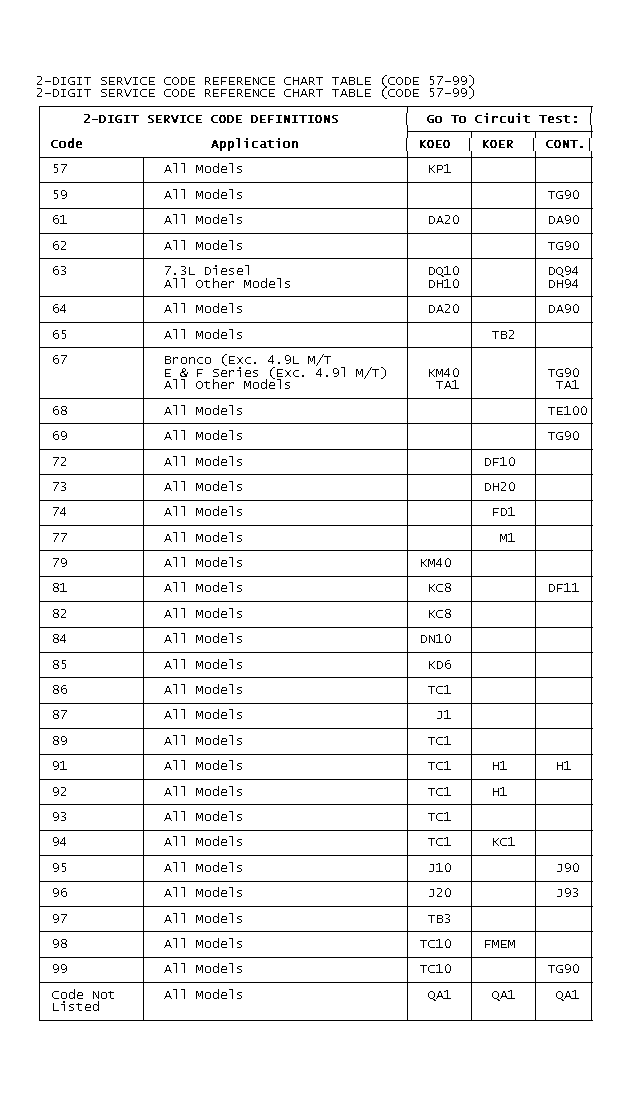

Fig 2: DIAGNOSTIC TOUBLE CODE REFERENCE CHART TABLE (CODE 57-99)

GB0021010
