Engine Control System Wiring Diagrams: 3.8L

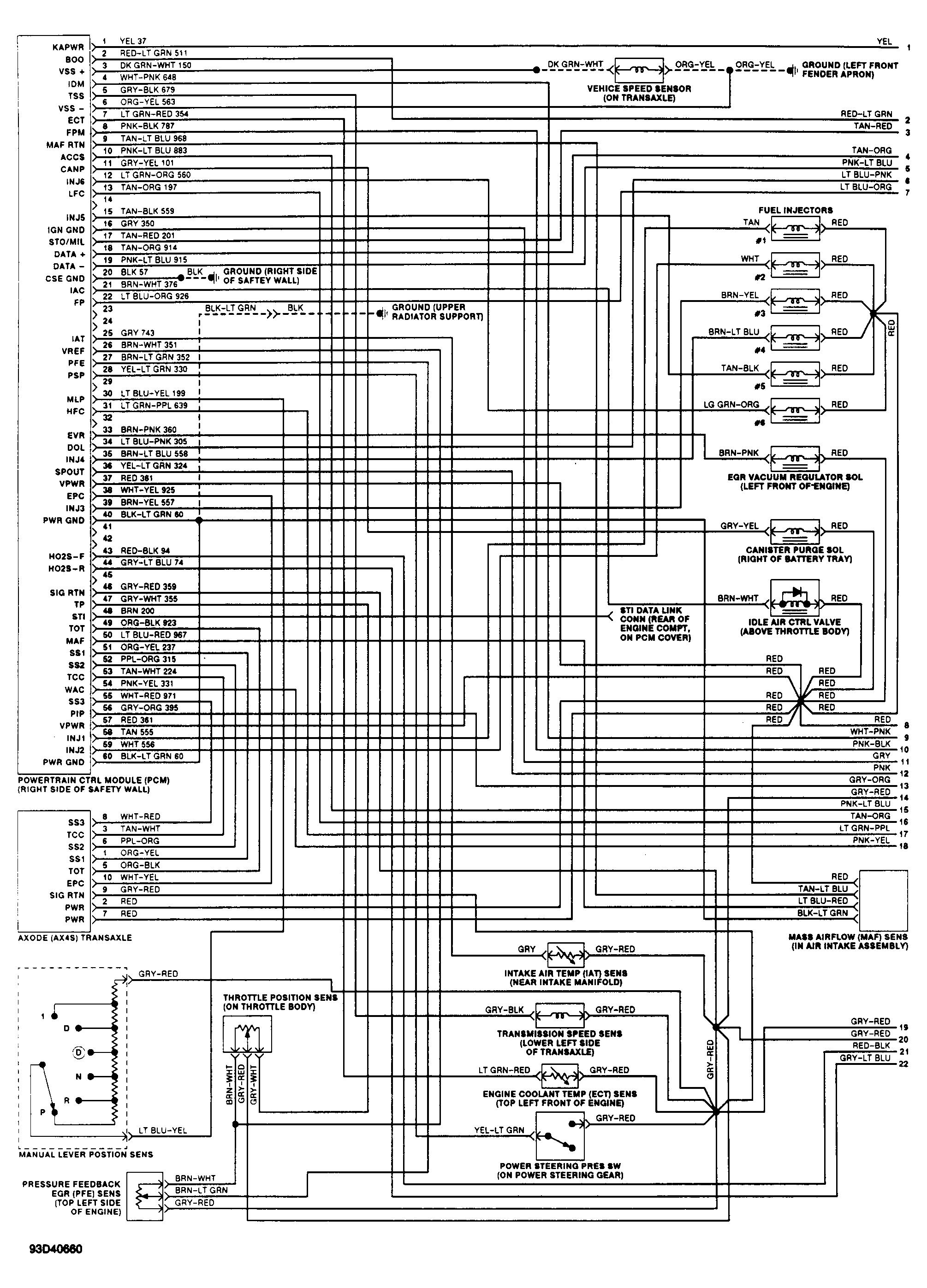

Fig 1: EEC-IV Wiring Diagram (Sable/Taurus 3.8L - 1 of 2)

G93D40660

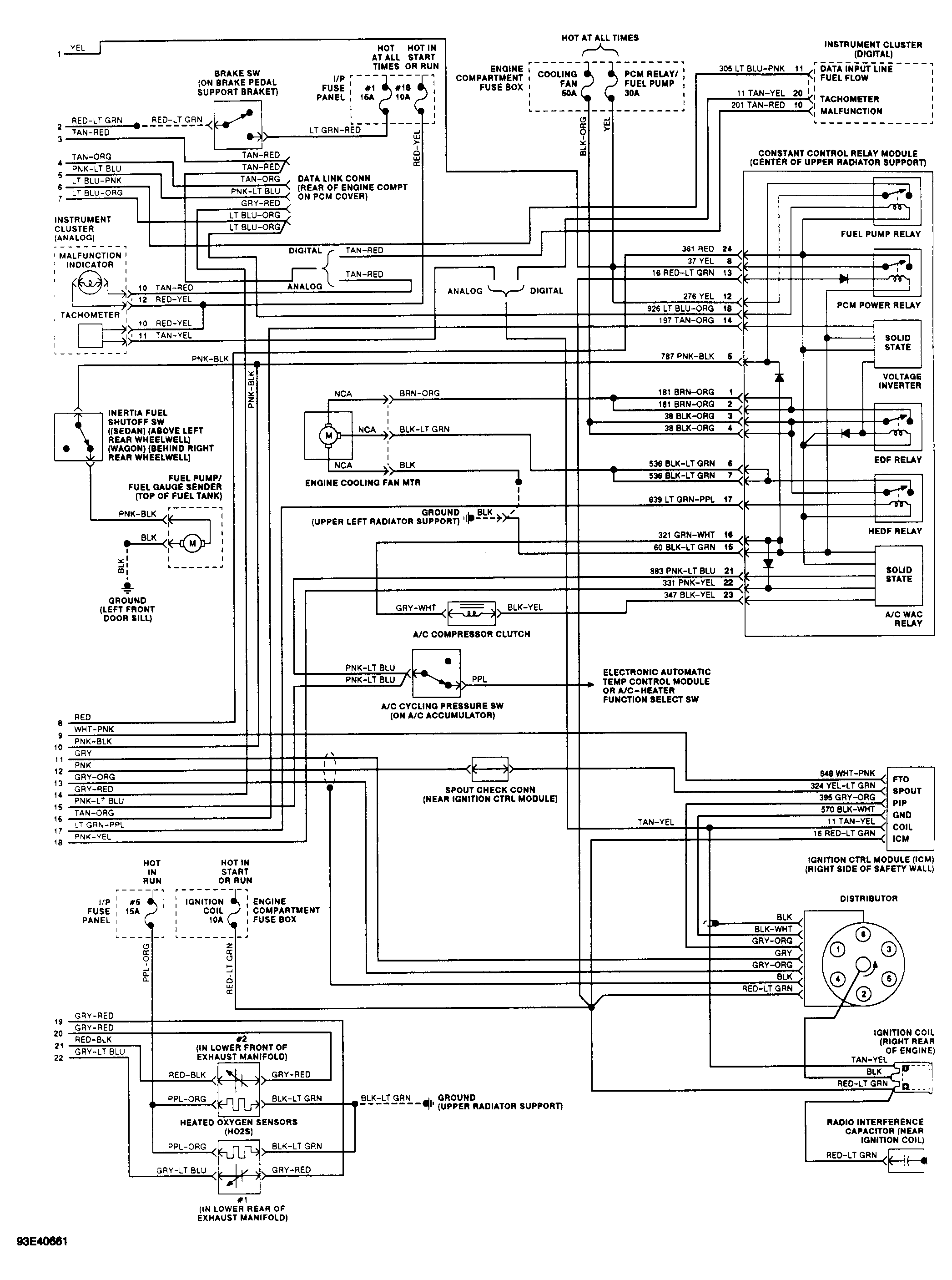

Fig 2: EEC-IV Wiring Diagram (Sable/Taurus 3.8L - 2 of 2)

G93E40661
