Home › Ford › 1994 › Crown Victoria Base › Repair and Diagnosis › Steering › Power Steering › Steering System - Power › Wiring Diagrams

Wiring Diagrams

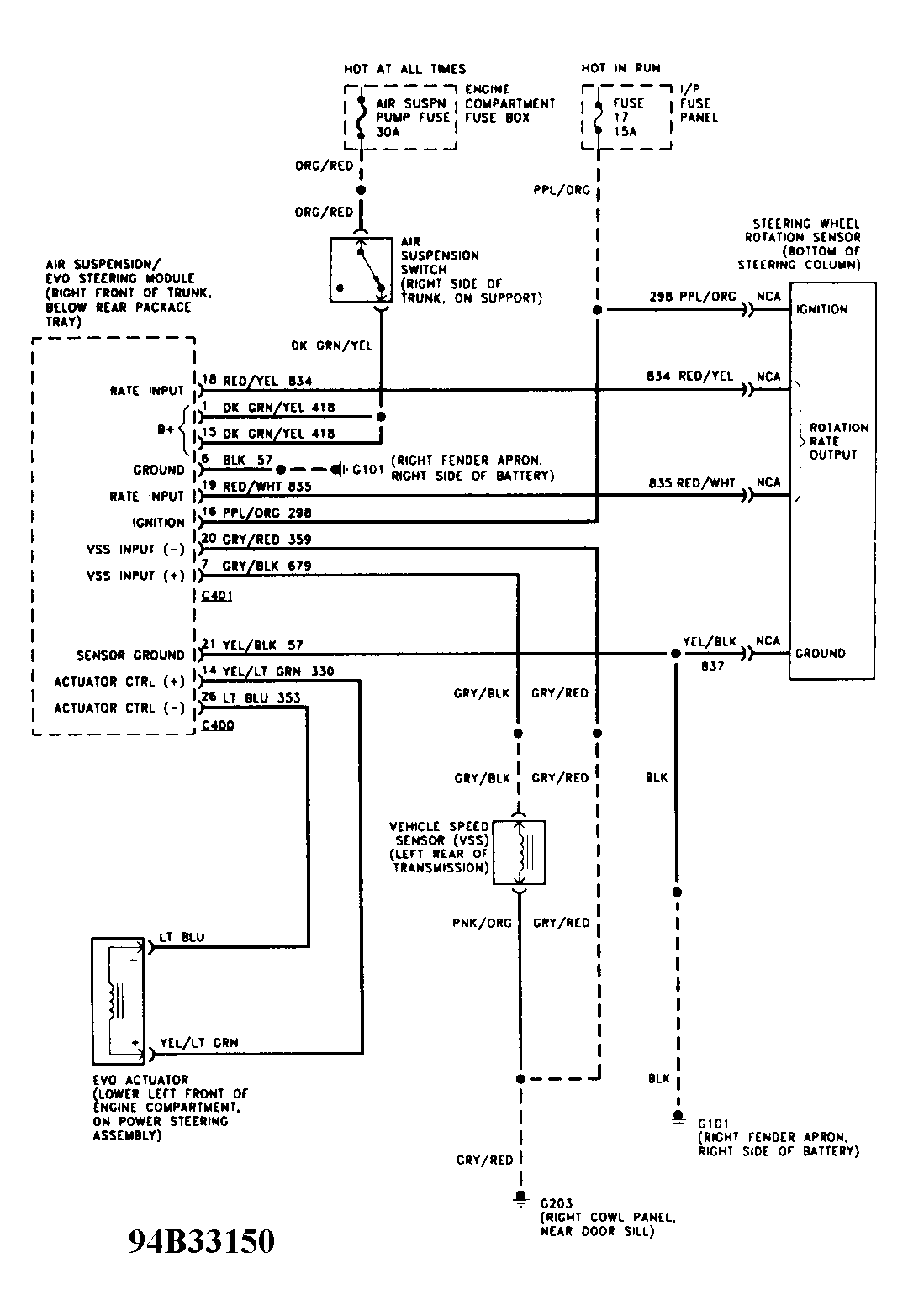

Fig 1: EVO System Wiring Diagram (With Air Suspension)
G94B33150

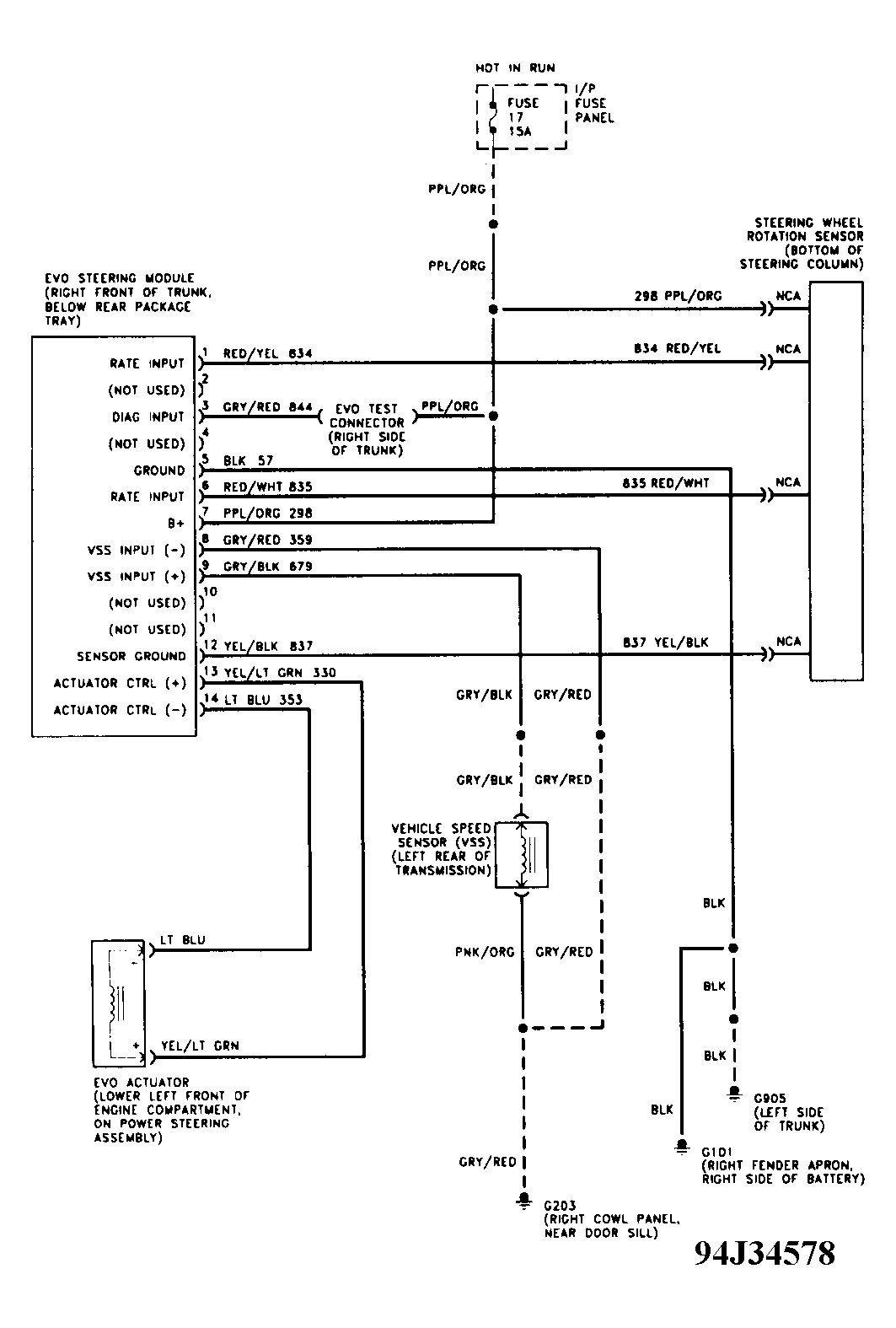

Fig 2: EVO System Wiring Diagram (Without Air Suspension)
G94J34578
