Engine Controls - Tests W/Codes - EEC-IV (1.9L)
›
Service Code-To-Test Reference Menus
›
3-Digit Service Code-To-Test Chart (Codes 532-587)
3-Digit Service Code-To-Test Chart (Codes 532-587)

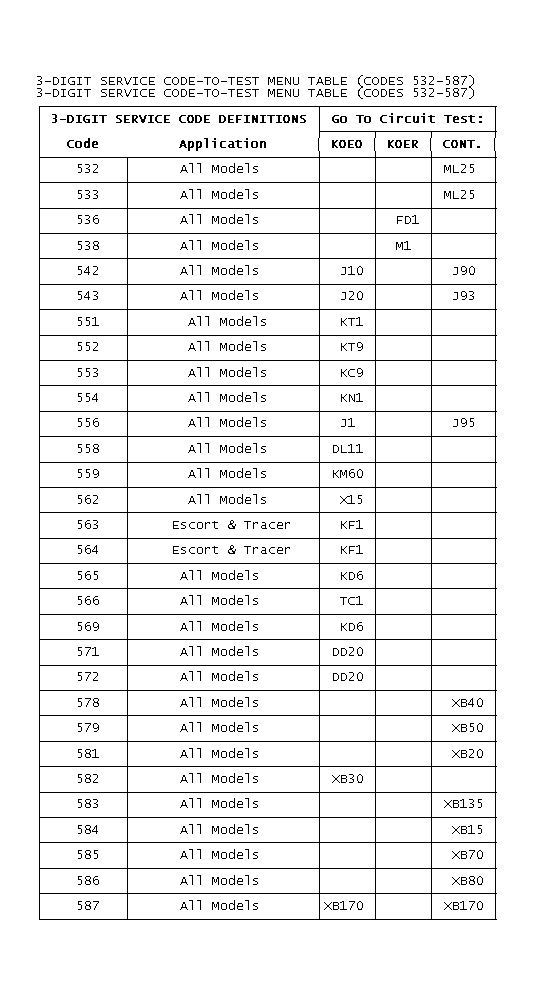

Fig 1: 3-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODES 532-587)
