Shift Cable/Linkage
- Disconnect negative battery cable to deactivate shift-lock system. Put shift lever in Park position. Remove shift lever knob-to-shift lever screw. Remove knob. Remove shift selector console.

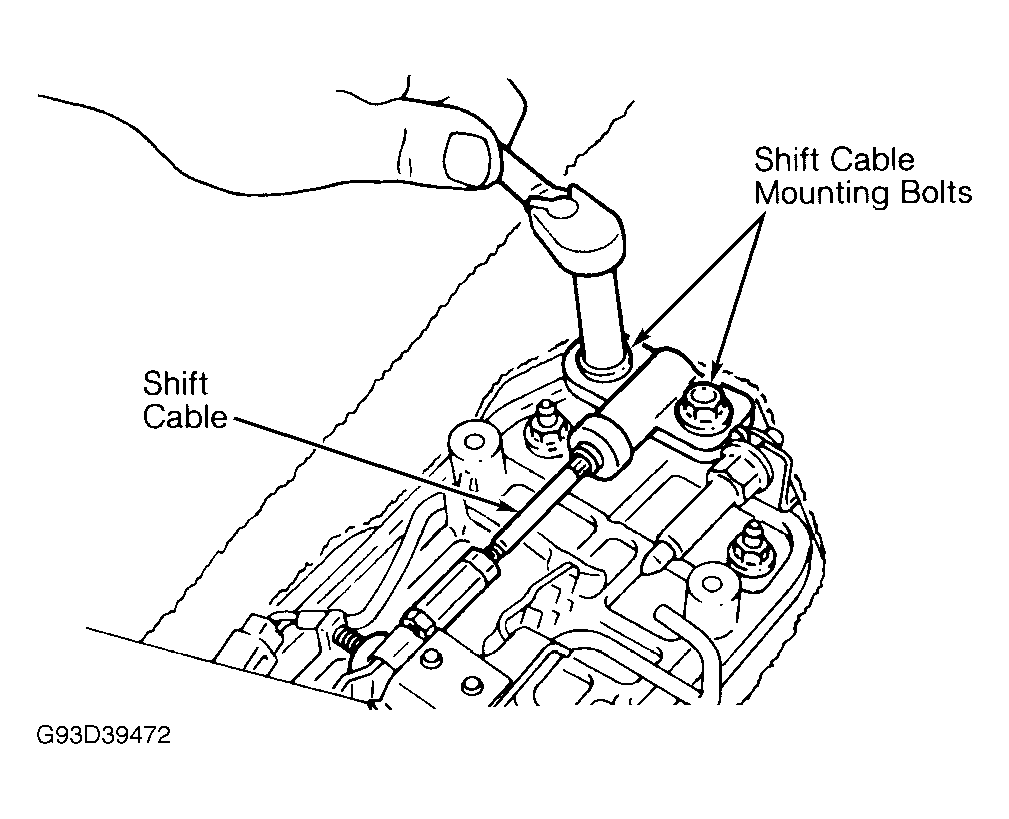

- Disconnect wiring connectors as needed. Remove position indicator. Disconnect shift lock servo connector. Loosen shift cable bracket mounting bolts. See Fig 1
. Push shift selector lever in Park position and hold it.

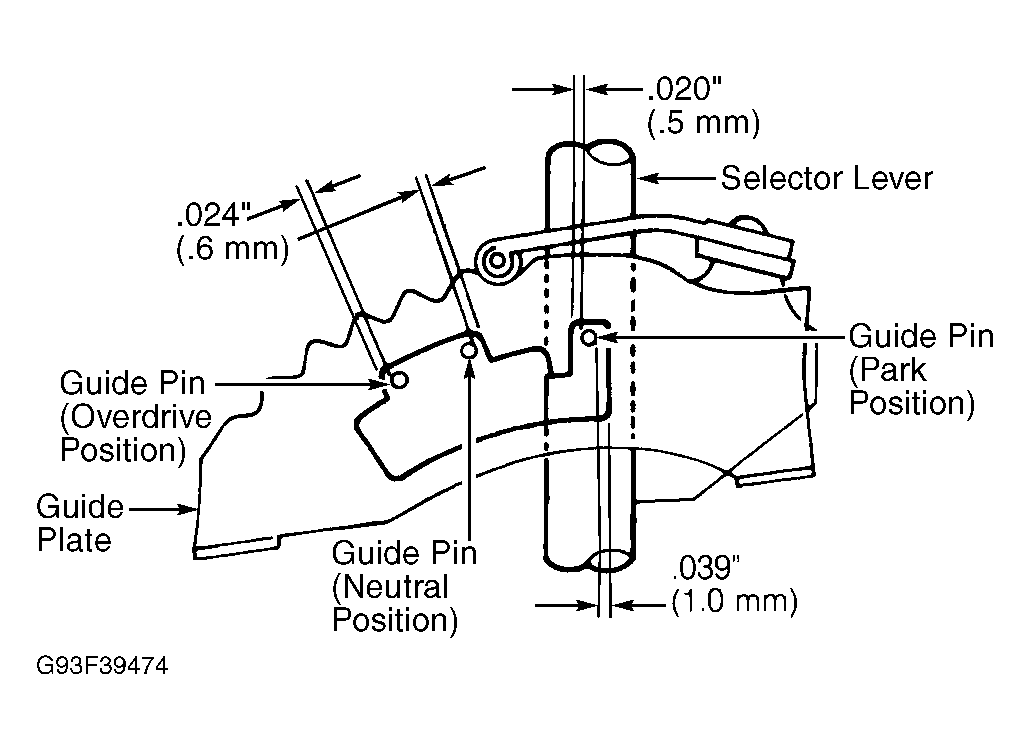

- Tighten shift cable bracket mounting bolts. Lightly press shift selector push rod and make sure guide plate and guide pin clearances are correct when gear shift lever is in Park, Neutral and Overdrive. See Fig 2
. To install remaining components, reverse removal procedure.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
