Right Window Switch With Door Lock

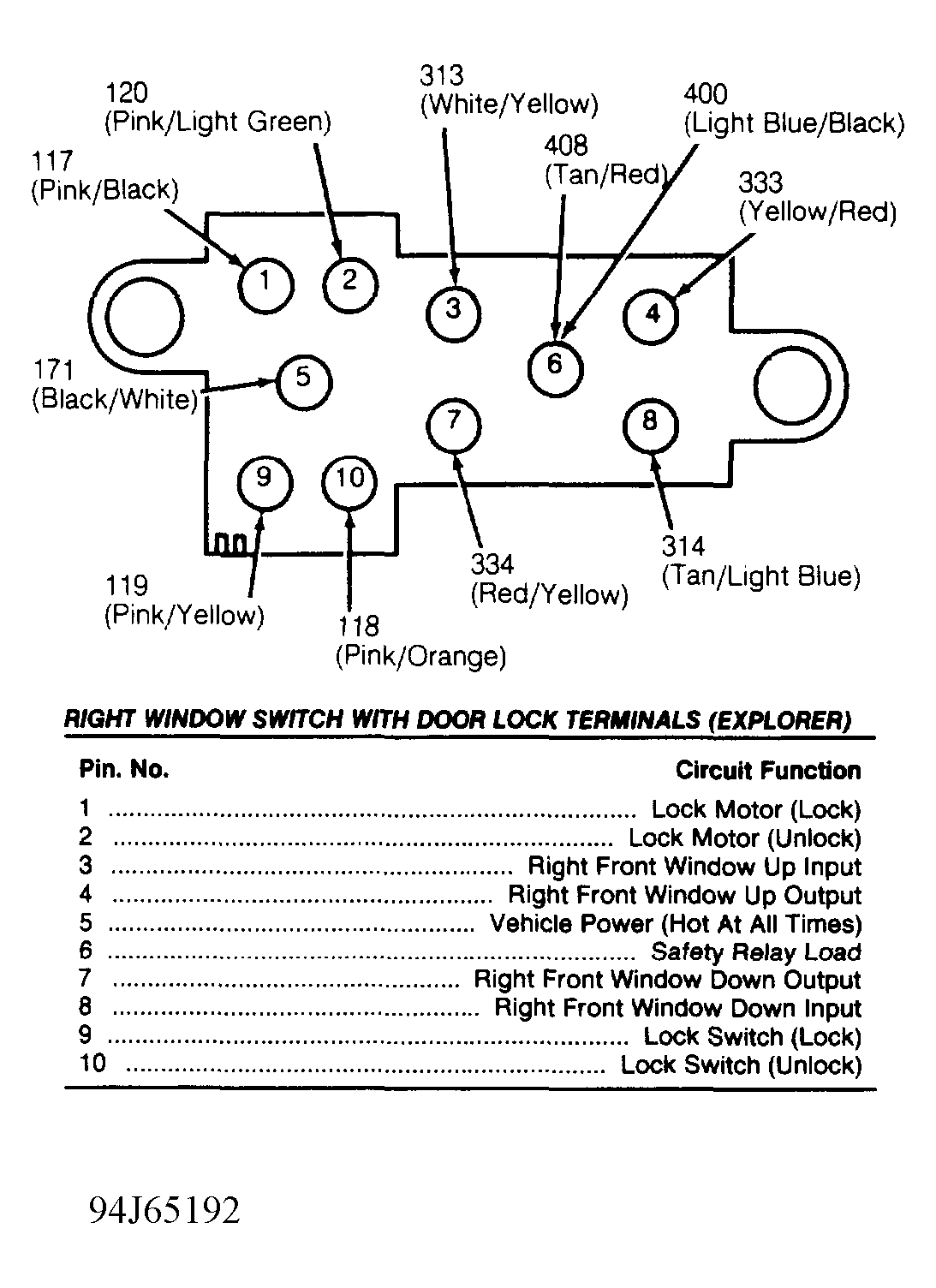

Testing information is not available from manufacturer. See illustration for right window switch with door lock terminal locations. See Fig 1 .
RIGHT WINDOW SWITCH WITH DOOR LOCK TERMINALS
| Pin. No. | Circuit Function |
|---|---|
| 1 | Lock Motor (Lock) |
| 2 | Lock Motor (Unlock) |
| 3 | Right Front Window Up Input |
| 4 | Right Front Window Up Output |
| 5 | Vehicle Power (Hot At All Times) |
| 6 | Safety Relay Load |
| 7 | Right Front Window Down Output |
| 8 | Right Front Window Down Input |
| 9 | Lock Switch (Lock) |
| 10 | Lock Switch (Unlock) |
